SQUARE D

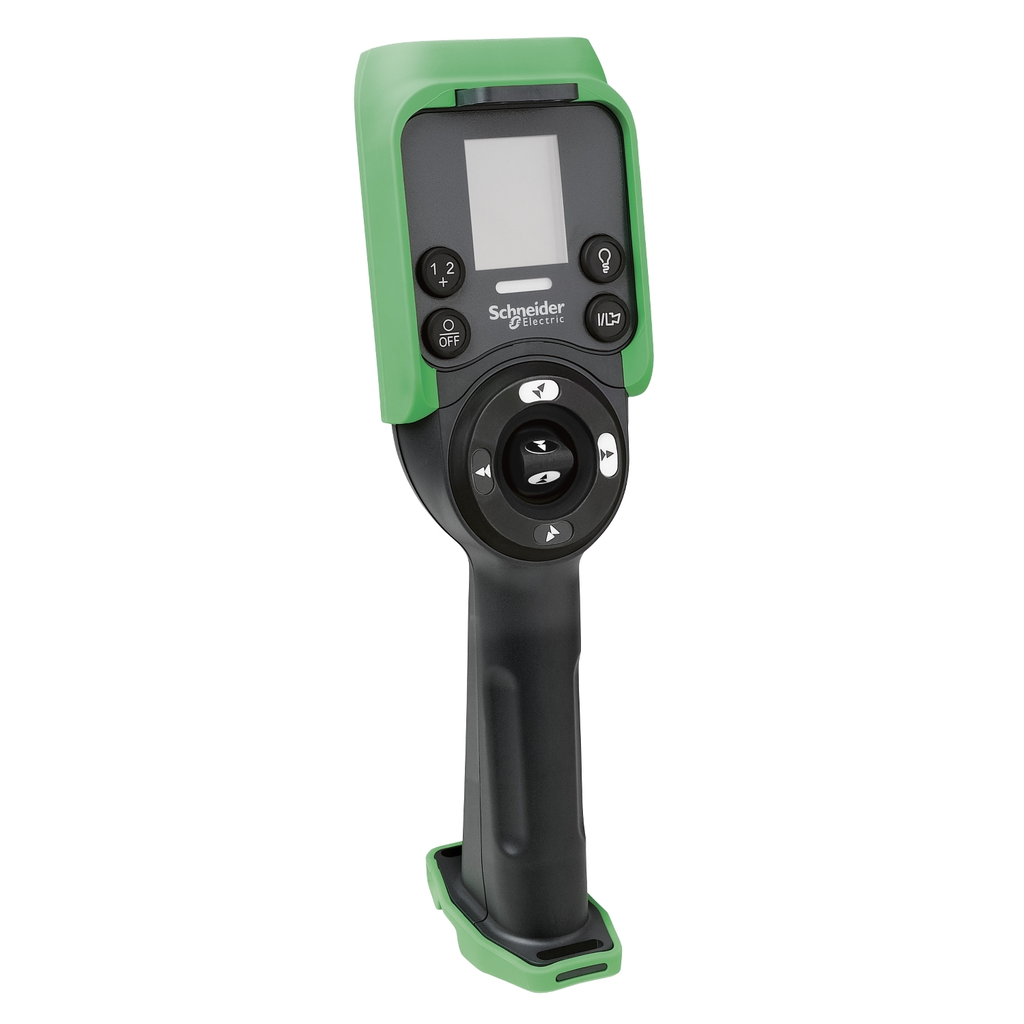

Remote control, Harmony eXLhoist, standard, display, 6 motion push buttons, 2 auxiliary push buttons, MBC (tandem)

Harmony eXLhoist, standard, Re

SQDZART8DM ZART8DM 3606481138293
745.45 / EA
http://schema.org/OutOfStock
Mayer-DDS-Remote control, Harmony eXLhoist, standard, display, 6 motion push buttons, 2 auxiliary push buttons, MBC (tandem)-1
  • Country of Origin: France
  • Depth: 3.54 in
  • Height: 13.39 in
  • Width: 3.94 in
QTY
  • Features
  • Specifications
  • Maximum Sensing Distance
    • 100 m in free field
  • Function Available
    • vibrator function
    • accelerometer function
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
  • Response Time
    • < 300 ms full duplex
  • Control Button Type
    • 6 configurable motion push-button
    • 2 configurable auxiliary push-button
  • Radio Agreement
    • RSS
    • ICASA
    • ANATEL
    • ARIB
    • FCC
    • SRRC
  • Material
    • enclosure PC (polycarbonate)
    • enclosure PBT (polybutylene terephthalate)
    • Cover PP (polypropylene)
    • protective cover EPDM rubber
  • Device Application
    • master in multiple bridge control (tandem)
    • slave in multiple bridge control (tandem)
    • master and slave in multiple bridge control (tandem)
    • master and slave in multiple br
  • Vibration Resistance
    • 0.075 mm 10-55 Hz)IEC 60068-2-6
  • Display Type
    • LCD display 34 x 42 mm
  • Relative Humidity
    • 0-95 % -20-60 °C operating
  • Mechanical Robustness
    • free fall resistance 4.5 m IEC 60068-2-27
  • Communication Network Type
    • wireless bluetooth low energy
  • Shock Resistance
    • 100 gn IEC 60068-2-27
  • Product Certifications
    • CSA
    • KC
    • C-tick
    • UL
    • EAC
    • CE
    • JIS
  • Important Information Attributes
    • Country Id : US
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-08-27
    • ETIM 10 : EC002024
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2312040EN
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant with Exemptions
    • ROHS Eur Conformity Date : 1415
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 7
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Dangerous Goods Code : LITHIUM ION BATTERIES IN EQUIP. CELL : ≤ 20Wh AND ≤ 4 CELLS in Package
    • Autonomy : 30 h
    • Charging Time : 900 s
    • Device Short Name : ZART
    • Mechanical Durability : 5000000 cycles
    • Operating Distance : 50 m
    • Package Weight Lbs : 730.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : hand-held remote control
    • Range Of Product : Harmony eXLhoist
    • Returnability : Yes
    • Service Life : 5 year(s)
    • Sustainable Packaging : No
    • Transmission Frequency : 2.4 GHz
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Specifications
    • Country of Origin : France
    • Height : 13.39 in
    • Width : 3.94 in
    • Depth : 3.54 in
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=475004715&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : -20-60 °C
    • Ambient Air Temperature For Storage : -20-45 °C
    • Circularity Profile : ENVEOLI2312040EN
    • Environmental Disclosure : ENVPEP2312040EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Ip Degree Of Protection : IP65
    • Nema Degree Of Protection : NEMA 4
    • Operating Altitude : 0...6561.68 ft (0...2000 m)
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Storage Altitude : 0-3000 m
  • General Attributes
    • Product Or Component Type : hand-held remote control
    • Range Of Product : Harmony eXLhoist
