Harmony eXLhoist, standard, Remote ZART8D with base ZARB18W

Harmony eXLhoist, standard, Re

SQDXARS8D18W XARS8D18W 3606480610318
1457.29 / EA
http://schema.org/OutOfStock
Mayer-DDS-Harmony eXLhoist, standard, Remote ZART8D with base ZARB18W-1
  • Certifications: CE, CSA, C-tick, EAC, JIS, KC, UL
  • IsSustainable: No
  • Number of Channels: 50
  • Standard: ARIB STD-T81 Radio, ETSI EN 300 328 Radio, ETSI EN 300 440-2 Radio, ETSI EN 301 489-1 Radio, ETSI EN 301 489-17 Radio, ETSI EN 301 489-3 Radio, FCC Part 15 Radio, IEC 60204-1 Safety, IEC 60204-32 Hoisting Applications, IEC 61508 Safety, IEC 62061 Safety, ISO 13849-1 Safety, ISO 13850 Safety, RSS 210 Issue 8 Radio, RSS GEN Issue 3 Radio
This wireless control station emergency stop function is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It has motion function and limiter protection function. Its schematic is clearly distinguishable thanks to clear colors It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant, making it ideal for operation in harsh environments The product is composed of a remote ZART8D and a base ZARB18W High performance International standards & certifications ( Marine certification, IP66 IP67 IP69 IP69K, Type 4X)
QTY
  • Product Description
  • Specifications

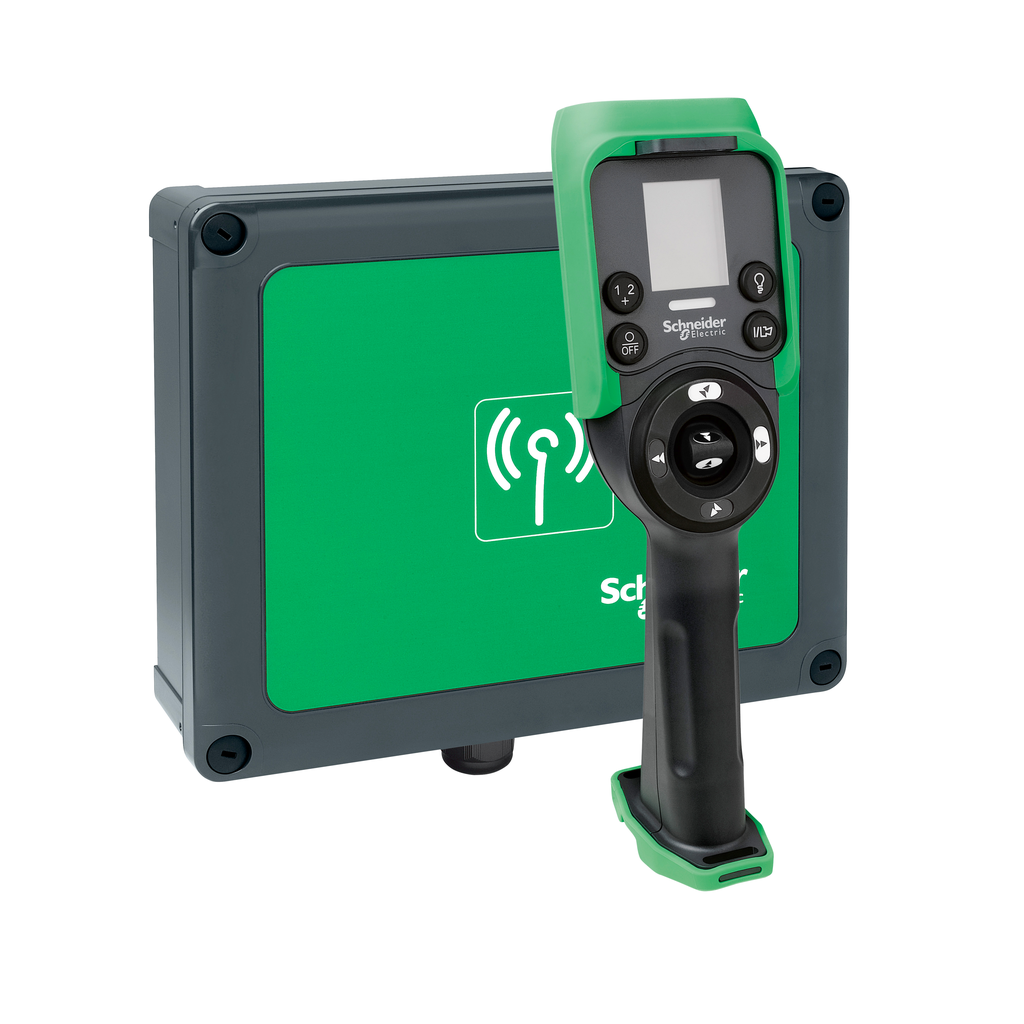

This wireless control station emergency stop function is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It has motion function and limiter protection function. Its schematic is clearly distinguishable thanks to clear colors It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant, making it ideal for operation in harsh environments The product is composed of a remote ZART8D and a base ZARB18W High performance International standards & certifications ( Marine certification, IP66 IP67 IP69 IP69K, Type 4X)
  • Specifications
    • Number Of Channels : 50
    • Range Of Product : Harmony eXLhoist
    • Device Short Name : XARS
    • Product Specific Application : hoisting applications || material handling
    • Control Station Application : stop function SIL 2 maximum can reach PL d/category 3)IEC 62061 || stop function SIL 2 maximum can reach PL d/category 3)ISO 13849-1 || emergency stop function SIL 3 maximum can reach PL e/category 4)IEC 62061 || emergency stop function SIL 3 maximum can reach PL e/category 4)ISO 13849-1 || motion function SIL 1 maximum can reach PL c/category 1)IEC 62061 || motion function SIL 1 maximum can reach PL c/category 1)ISO 13849-1 || limiter protection function SIL 1 maximum can reach PL c/category 1)IEC 62061 || limiter protection function SIL 1 maximum can reach PL c/category 1)ISO 13849-1
    • Control Station Type : wireless
    • Product Or Component Type : control station
  • Offer Sustainability
    • Environmental Disclosure : ENVPEP1403029EN
    • Rohs Exemption Information : Yes
    • China Rohs Regulation : X
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Mercury Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Circularity Profile : ENVEOLI1403029EN
  • Environment
    • Product Certifications : CE || UL || CSA || C-tick || JIS || KC || EAC
    • Relative Humidity : 0-95 % -20-45 °C storage
    • Standards : IEC 60204-1 safety || ISO 13849-1 safety || IEC 62061 safety || IEC 61508 safety || ISO 13850 safety || IEC 60204-32 hoisting applications || ETSI EN 301 489-1 radio || ETSI EN 301 489-3 radio || ETSI EN 301 489-17 radio || ETSI EN 300 440-2 radio || ETSI EN 300 328 radio || FCC part 15 radio || RSS GEN issue 3 radio || RSS 210 issue 8 radio || ARIB STD-T81 radio
    • Electromagnetic Compatibility : resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2 || resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2 || resistance to radiated electromagnetic fields - test level: 10 V/m class B conforming to IEC 61000-4-3
    • Radio Agreement : RSS || SRRC || ANATEL || ARIB || FCC || ICASA
  • Complementary
    • Kit Composition : base station || remote control
    • Operating Distance : 100 m in free air
    • Transmission Frequency : 2.4 GHz
    • Cable Entry : cable gland
    • Communication Network Type : wireless bluetooth low energy
