Harmony eXLhoist, standard, Base station, 18 relay outputs, cable gland connection, MBC (tandem) 24…240 V AC/DC

Harmony eXLhoist, standard, Base station, 18 relay outputs, cable gland connection, MBC (tandem) 24…240 V AC/DC

SQDZARB18WM 3606481138323
1069.20 / EA
http://schema.org/OutOfStock
  • Certifications: CE, CSA, C-tick, EAC, KC, UL
  • Depth: 100 mm
  • Height: 305 mm
  • Material: Polycarbonate
  • Net Weight: 1.45 kg
  • Number of Channels: 40
  • Standard: IEC 61000-6-2
  • Storage Temperature: -40-70 °C
  • Width: 280 mm

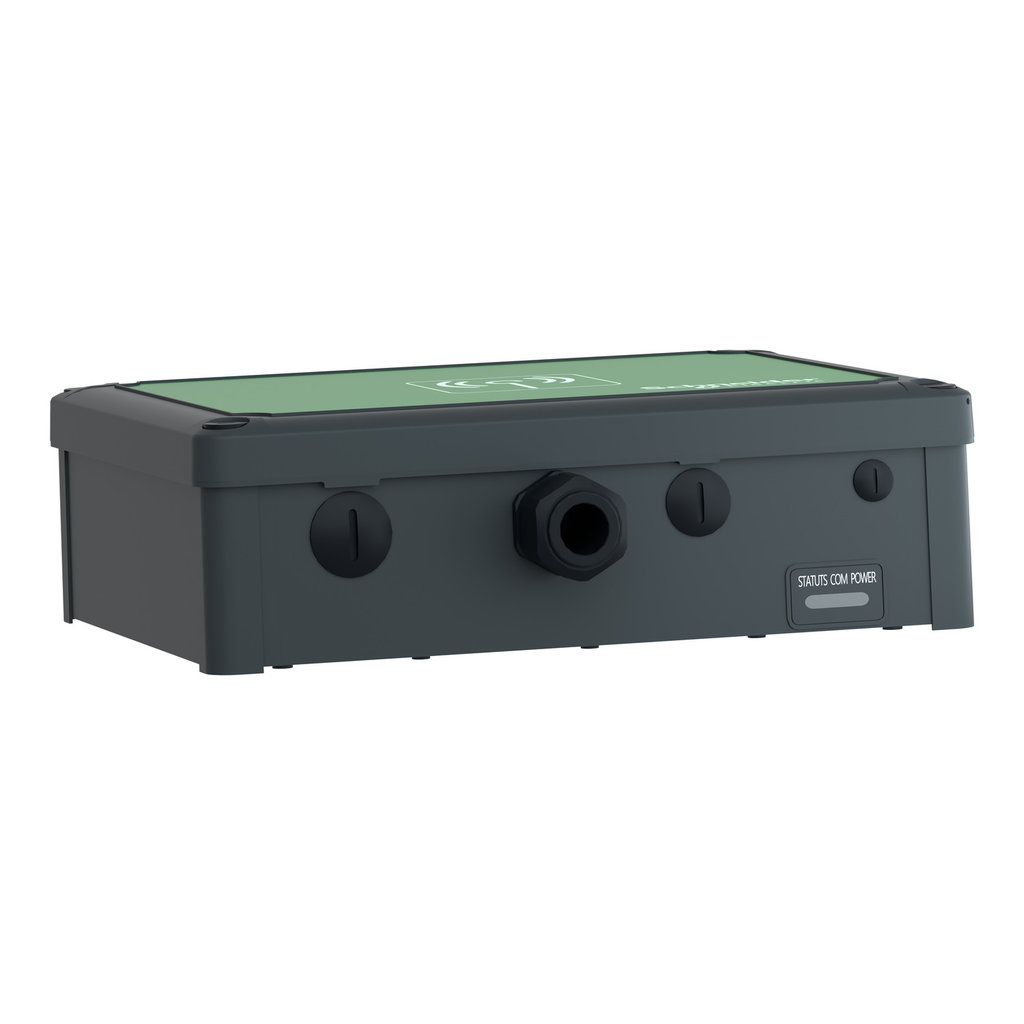

This green base station (Receiver) is designed as receiver for wireless remote control system It has 9 relay outputs with 2 safety relays and 7 auxiliary relay has wired connection cable gland It is impact resistant (strength), dust resistant (strength), water resistant (strength), corrosion resistant (strength), and vibration resistant (strength) thanks to its IP66, making it ideal for operation in harsh (heavy) environments
QTY
  • Product Description
  • Specifications
This green base station (Receiver) is designed as receiver for wireless remote control system It has 9 relay outputs with 2 safety relays and 7 auxiliary relay has wired connection cable gland It is impact resistant (strength), dust resistant (strength), water resistant (strength), corrosion resistant (strength), and vibration resistant (strength) thanks to its IP66, making it ideal for operation in harsh (heavy) environments
  • Specifications
    • Range Of Product : Harmony eXLhoist
    • Product Specific Application : hoisting applications || material handling
    • Product Or Component Type : base station
    • Device Short Name : ZARB
  • Complementary
    • Nominal Output Current : 0.54 A 48 V AC IEC 60947-5-1
    • Height : 305 mm
    • [Us] Rated Supply Voltage : 24...240 V AC/DC
    • Maximum Switching Current : 6.8 mA
    • Switching Capacity In Va : 5 VA DC || 26 VA AC
    • Maximum Sensing Distance : 100 m in free field
    • Number Of Channels : 40
    • Service Life : 10 year(s)
    • Number Of Inputs : 12
    • Fixing Mode : 4 holes
    • Transmission Frequency : 2.4 GHz
    • Mechanical Durability : 1000000 cycles
    • Maximum Switching Voltage : 240 V AC/DC + 20 %)
    • Cable Entry : cable gland
    • Provided Equipment : internal antenna
    • Shock Resistance : 15 gn 11 ms
    • Number Of Relays : 18
    • Vibration Resistance : 0.075 mm 10-55 Hz)
    • Width : 280 mm
    • Depth : 100 mm
    • Relay Type : motion relay outputs 9 NO || auxiliary relay outputs 7 NO || auxiliary relay outputs 2 NC + 2 NO
    • Safety Outputs : 2 NC relay outputs
    • Number Of Alarms : 6 programmable alarms
    • Electrical Durability : 100000 cycles
    • Material : PC (polycarbonate)
    • Net Weight : 1.45 kg
    • Communication Network Type : wireless bluetooth low energy
  • Offer Sustainability
    • China Rohs Regulation : X
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Environment
    • Product Certifications : UL || CE || CSA || C-tick || EAC || KC
    • Relative Humidity : 0-97 %
    • Ambient Air Temperature For Operation : -25-70 °C
    • Pollution Degree : 3
    • Nema Degree Of Protection : NEMA 4
    • Ambient Air Temperature For Storage : -40-70 °C
    • Standards : IEC 61000-6-2
    • Electromagnetic Compatibility : resistance to electrostatic discharge 4 kV on contact)class B IEC 61000-4-2 || resistance to electrostatic discharge 8 kV in air)class B IEC 61000-4-2 || resistance to radiated electromagnetic fields 10 V/mclass B IEC 61000-4-3
    • Radio Agreement : ICASA || RSS || ARIB || FCC || ANATEL || SRRC
    • Ip Degree Of Protection : IP65
