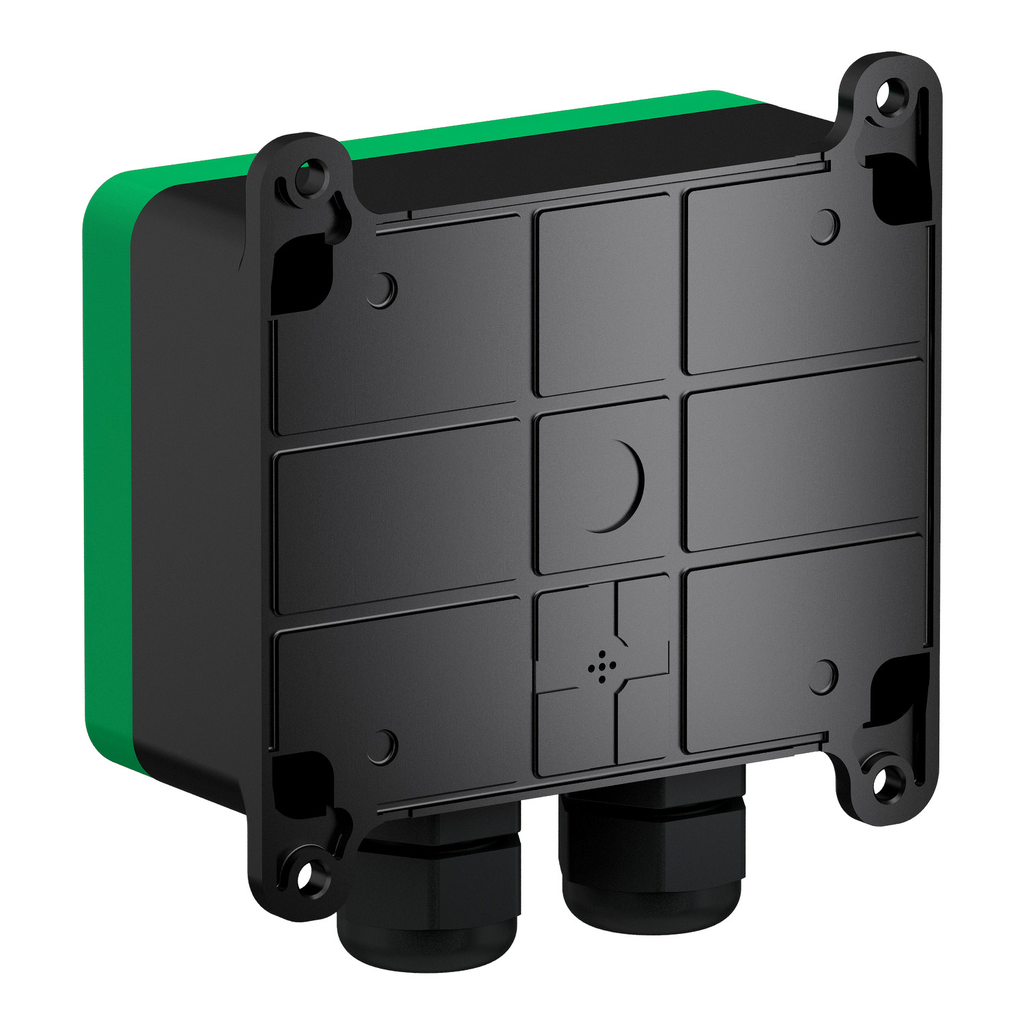

This Harmony eXLhoist / XAR green base station (receiver) has 10 relays outputs with 2 safety relays. This green base station (receiver) is designed as receiver for wireless remote control system. It has 10 relay outputs with 2 safety relays and has wired connection cable gland. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP66, making it ideal for operation in harsh (heavy) environments. It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Base station (receiver) has a unique identification code to allow the consistent and stable connection with its compatible remote control system.

• Features
• Designed for intuitive operation
• Robust performance and safety compliance
• One hand operation
• Operator protection
• High availability
• Unrestricted worldwide use
• For industrial cranes and construction cranes applications
• IP66 degree of protection
• Wide range of operating temperature from -20°C to 55°C
• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Communications & Management Attributes
• Communication Network Type : wireless Zigbee
• Conformance Attributes
• Product Certifications : CE
• Complementary Attributes
• Maximum Sensing Distance : 100 m in free field
• Maximum Switching Current : 10 A
• Maximum Switching Voltage : 240 V AC +/- 20 %)
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Product Specific Application : material handling, hoisting applications
• Radio Agreement : FCC, IC
• Relay Type : motion relay outputs 9 NO, auxiliary relay outputs 1 NO
• Carbon Footprint Of The Distribution Phase A4 : 0.0698292598, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.4 kg CO2 eq., 0.3615292126
• Carbon Footprint Of The Installation Phase A5 : 0.1424981102, 0.1 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 18 kg CO2 eq., 17.8112125984
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 1 086 kg CO2 eq., 1086.2003527494
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-25
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2312040EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Function Option Id : ADVANCED
• Function Option : Advanced
• Cable Entry : cable gland
• Device Short Name : ZARB
• Electrical Durability : 100000 cycles
• Fixing Mode : 4 holes
• Material : ABS + PC
• Mechanical Durability : 10000000 cycles
• Package Weight Lbs : 515.000 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : base station
• Provided Equipment : internal antenna
• Range Of Product : Harmony eXLhoist
• Returnability : Yes
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 1 105 kg CO2 eq.
• Transmission Frequency : 2.4 GHz
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Us Rated Supply Voltage2 : 48...240 V AC
• Medium Desc : Base station, Harmony eXLhoist, compact, Receiver, 10 relays outputs, cable gland connection, 48...240V AC
• Stocking Flag : Y
• Product Kit Identifier : N
• Pep Code : ENVPEP2312040EN
• Database Version : 2022-01
• Pep Verification Date : 2023-12-07
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : The purpose of this display-equipped remote control (transmitter) is to function as a transmitter for wireless remote control systems.This Harmony eXLhoist / XAR black remote control (transmitter) has 6 configurable auxiliary push buttons with 6 configurable motion push buttons.It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Wireless transmission allows remote control (transmitter) to transmit steady signal, commands and information from the operator to the machine.
• Functional Unit Unit : Unit
• Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
• Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
• Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
• Global Commercial Status : Commercialised
• Us Rated Supply Voltage5 : 48...240 V AC
• Environment Attributes Main
• Take Back : No, Nej
• EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Exemption Information : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 1104.5854219305
• Ambient Air Temperature For Operation : -20-55 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI2312040EN
• Environmental Disclosure : ENVPEP2312040EN
• IP Degree Of Protection : IP66
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 0-97 %
• Pep Code : ENVPEP2312040EN
• Pep Verification Date : 2023-12-07
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : base station
• Provided Equipment : internal antenna
• Range Of Product : Harmony eXLhoist
• Output Attributes
• Nominal Output Current : 0.5 A 48 V AC IEC 60947-5-1
• Safety Outputs : 2 NC relay outputs
• Specifications
• Depth : 51 mm
