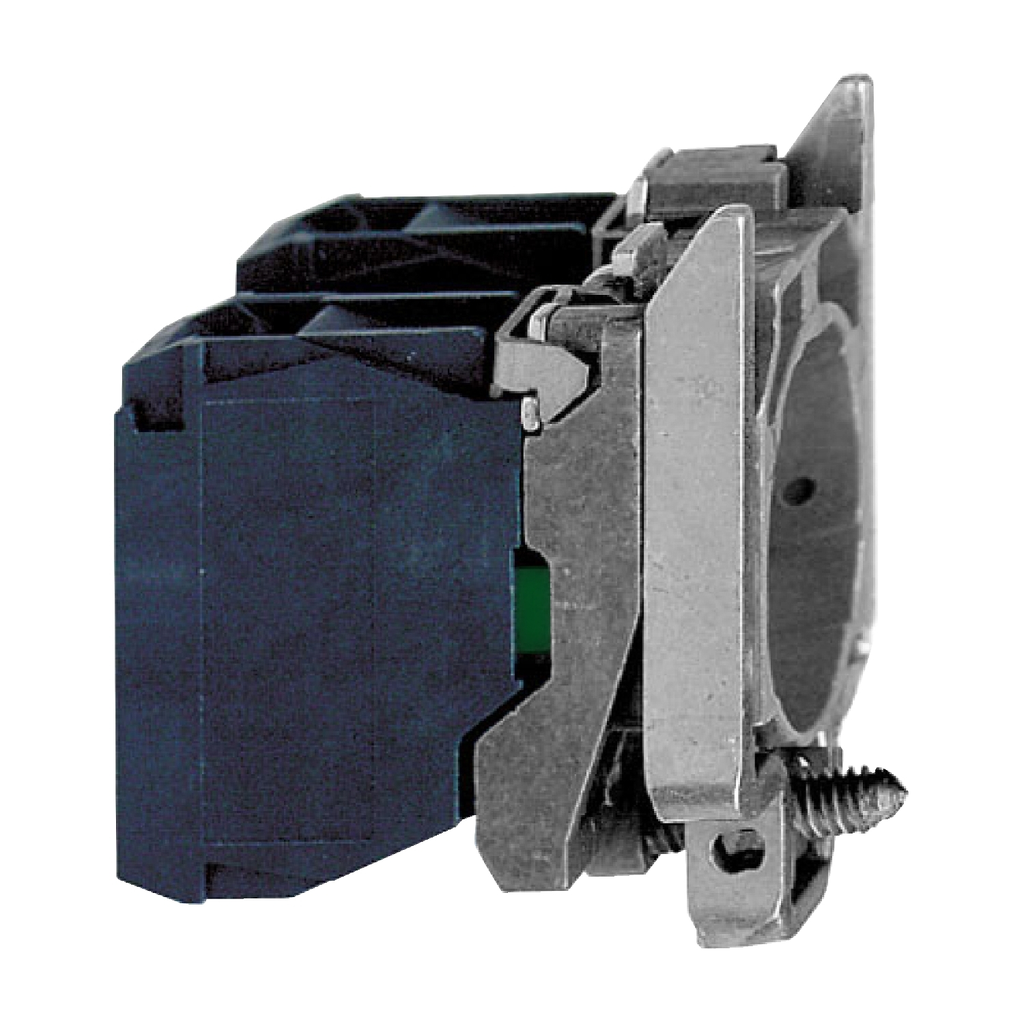

Complete body contact assembly, Harmony XB4, for push buttons selector switches, single contact block with body fixing collar 1NO+1NC faston connector

HARMONY COMPLETE BODY/CONTACT,

SQDZB4BZ1053 ZB4BZ1053 785901415503
36.63 / EA
http://schema.org/OutOfStock
Mayer-DDS-Complete body contact assembly, Harmony XB4, for push buttons selector switches, single contact block with body fixing collar 1NO+1NC faston connector-1
  • Head Type: Standard
  • Warranty Length: 18 mth
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=ZB4BZ1053_CAD
  • Physical Attributes
    • Cad Overall Depth : 37 mm
    • Cad Overall Height : 47 mm
    • Cad Overall Width : 30 mm
  • Conformance Attributes
    • Product Certifications : LROS (Lloyds register of shipping), DNV, CSA, BV, UL
    • Standards : IEC 60947-5-5, UL 508, IEC 60947-5-1, JIS C8201-5-1, CSA C22.2 No 14, IEC 60947-5-4, IEC 60947-1, JIS C8201-1
  • Complementary Attributes
    • Ui Rated Insulation Voltage : 250 V 3)IEC 60947-1
  • Important Information Attributes
    • Contacts Usage : standard contacts, standard contacts
    • Customizable : 0, no
    • Device Composition : body, fixing collar
    • Electrical Reliability : λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
    • Operating Travel : 1.5 mm NC changing electrical state), 2.6 mm NO changing electrical state), 4.3 mm total travel)
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Terminals Description Iso N 1 : (11-12)NC, (11-12)NC
    • Connections Terminals : Faston connector 1 x 6.35 mm, Faston connector 2 x 2.8 mm
    • Carbon Footprint Of The Distribution Phase A4 : 0.0083693476, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.0809527877
    • Carbon Footprint Of The Installation Phase A5 : 0.0128364413, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.5 kg CO2 eq., 0.4536332147
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0.1 kg CO2 eq., 0.0521873239
    • Medium Desc : Complete body contact assembly, Harmony XB4, for push buttons selector switches, single contact block with body fixing collar 1NO+1NC faston connector
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : Commercialised
    • Return Indicator : Y
    • Stocking Flag : Y
    • Legacy Weee Scope : In
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2308035EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Product Kit Identifier : N
    • Average Percentage Of Recycled Metal Content : 16 %
    • Average Percentage Of Recycled Plastic Content : 23 %
    • Compatibility Code : ZB4
    • Contact Block Type : single
    • Contact Operation : slow-break
    • Contacts Material : silver alloy (Ag/Ni)
    • Contacts Type And Composition : 1 NO + 1 NC
    • Device Short Name : ZB4
    • Electrical Durability : 10000000 cycles
    • Fixing Collar Material : zamak
    • Head Type : standard
    • Mechanical Durability : 5000000 cycles
    • Operating Torque : 0.05 N.m NO changing electrical state
    • Positive Opening : with IEC 60947-5-1 appendix K
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : complete body/contact assembly
    • Protective Treatment : TH
    • Range Of Product : Harmony XB4
    • Returnability : Yes
    • Software Version : v5.9.4
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 0.6 kg CO2 eq.
    • Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Contacts Composition : 1 NO + 1 NC
    • Connections Terminals 8 Connections Terminals : Faston connector
    • Pep Code : ENVPEP2308035_V1-EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-08-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1.
    • Functional Unit Unit : Unit
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
  • Environment Attributes Main
    • Take Back : Nej
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 16 %
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 0.6079791152
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Circularity Profile : ENVEOLI2308035EN
    • Environmental Disclosure : ENVPEP2308035_V1-EN
    • Eu Rohs Directive : Compliant
    • Ip Degree Of Protection : IP20 IEC 60529
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2308035_V1-EN
    • Pep Verification Date : 2023-08-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : complete body/contact assembly
    • Range Of Product : Harmony XB4
  • ETIM
    • ETIM 8 : EC000041
    • ETIM 9 : EC000041
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
