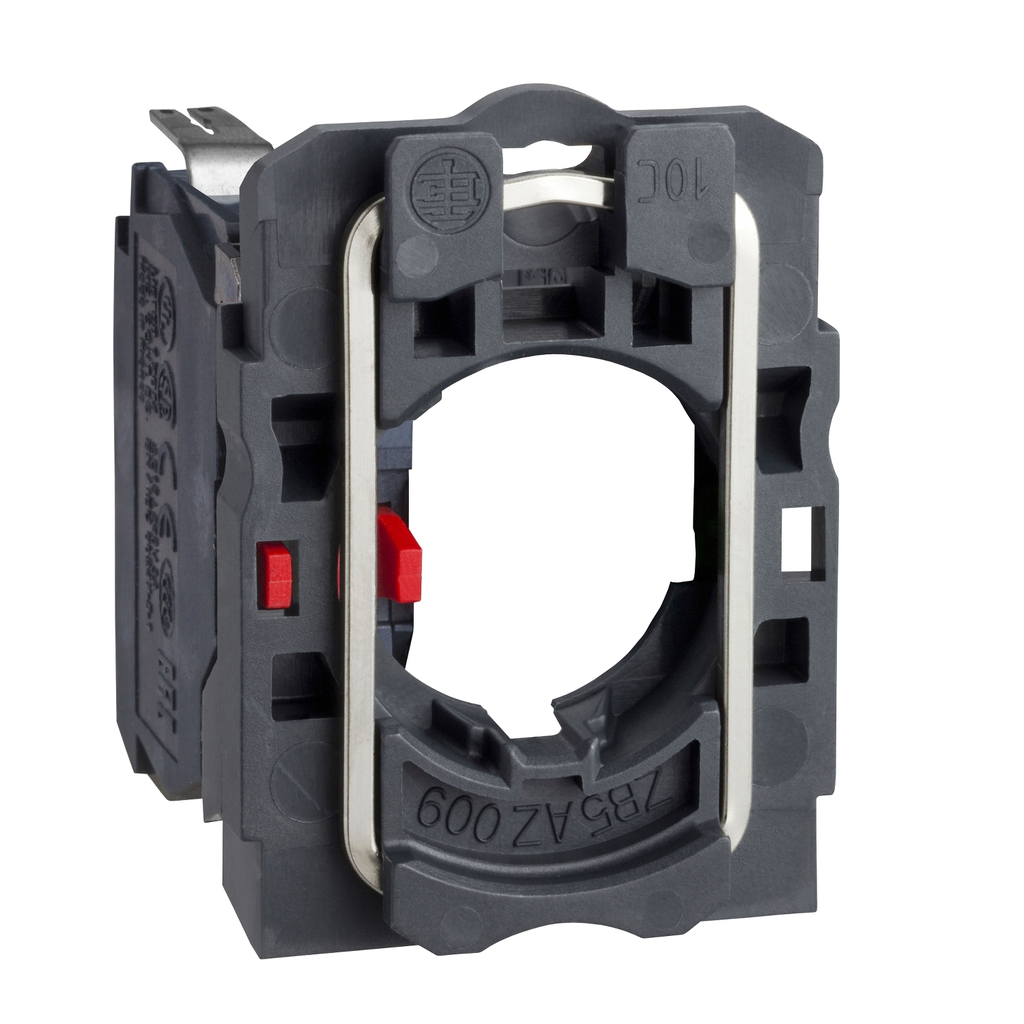

This Harmony ZB5AZ1023 is a single contact block with body/fixing collar, 1 NC faston connector. It is part of the range Harmony XB5 diameter 22mm modular plastic push buttons, switches, and pilot lights.

• Connections Terminals
• Faston connector 1 x 6.35 mm
• Faston connector 2 x 2.8 mm
• Prop 65
• WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.0055369982
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0 kg CO2 eq.
• 0.0379498082
• Standards
• CSA C22.2 No 14
• EN/IEC 60947-1
• EN/IEC 60947-5-4
• EN/IEC 60947-5-1
• JIS C8201-5-1
• UL 508
• JIS C8201-1
• Ui Rated Insulation Voltage
• 250 V 3)EN 60947-1
• Ip Degree Of Protection
• IP20 IEC 60529
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 0.2 kg CO2 eq.
• 0.1563750959
• Operating Force
• 2 N NC changing electrical state
• Vibration Resistance
• 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Positive Opening
• with EN/IEC 60947-5-1 appendix K
• Device Composition
• body
• fixing collar
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 0 kg CO2 eq.
• 0.0359269014
• Customizable
• no
• 0
• Carbon Footprint Of The Distribution Phase A4
• 0.0073330862
• 0 kg CO2 eq.
• Operating Travel
• 1.5 mm NC changing electrical state)
• 4.3 mm total travel)
• Electrical Reliability
• λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4
• λ < 10
• Shock Resistance
• 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
• 50 gn 11 ms) half sine wave ac
• Product Certifications
• DNV
• LROS (Lloyds register of shipping)
• GL
• UL
• BV
• CSA

• Physical Attributes
• Cad Overall Depth : 32 mm
• Cad Overall Height : 42 mm
• Cad Overall Width : 30 mm
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 7/9/2025
• Manufacturing Carbon Footprint : 0.156375096
• Distribution Carbon Footprint : 0.007333086
• Installation Carbon Footprint : 0.005536998
• Use Carbon Footprint : 0.035926901
• End Of Life Carbon Footprint : 0.037949808
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2303008EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 1930
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 1
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Compatibility Code : ZB5
• Contact Block Type : single
• Contact Operation : slow-break
• Contacts Material : silver alloy (Ag/Ni)
• Contacts Type And Composition : 1 NC
• Contacts Usage : standard contacts
• Device Short Name : ZB5
• Fixing Collar Material : plastic
• Head Type : standard
• Mechanical Durability : 10000000 cycles
• Package Weight Lbs : 21.0 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : complete body/contact assembly
• Protective Treatment : TH
• Range Of Product : Harmony XB5
• Returnability : Yes
• Sale Per Indivisible Quantity : 1
• Sustainable Packaging : No
• Terminals Description Iso N 1 : (11-12)NC
• Total Lifecycle Carbon Footprint : 0.2 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 0.24312189
• General Attributes
• Product Or Component Type : complete body/contact assembly
• Range Of Product : Harmony XB5
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=654142&lang=en-us
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.24312189
• Ambient Air Temperature For Operation : -40-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI2303008EN
• Environmental Disclosure : ENVPEP2303008EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France
