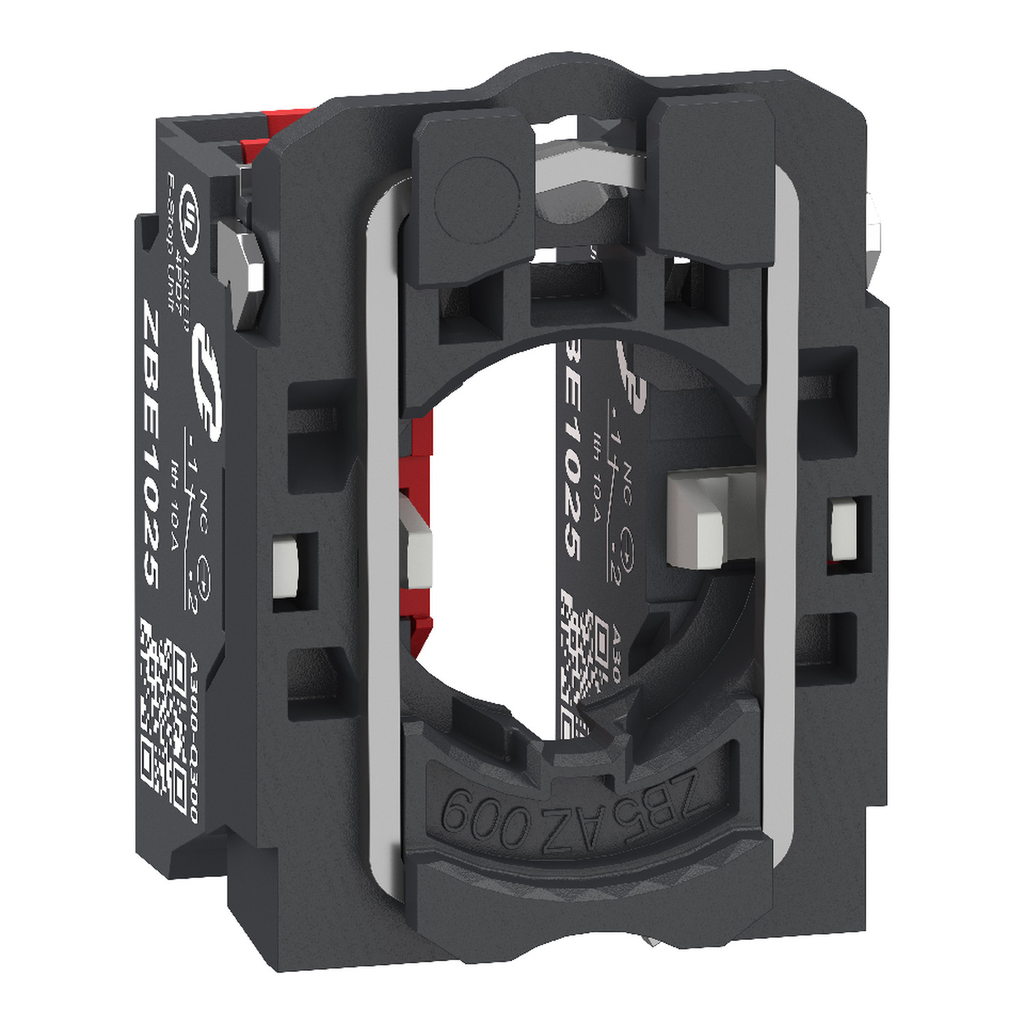

This Harmony XB5 single contact block is pre-assembled on a body/collar fixing unit. It features 2 normally closed (NC) contacts. It is compatible with Harmony XB5 units. It consists of a single contact block pre-assembled on a fixing collar unit. Simply adding a head to this assembly will provide you with a complete ready-to-use push button. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance provides less maintenance and damage in your installation. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. This plastic product weighs 21g. It is easily installed with push-in terminal connections. Its wide range of operating temperatures from -40°C to 55°C allows versatility in usage of product. Thanks to its simplicity of installation, flexibility, and robustness, it meets the requirements of the majority of industrial applications Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.

• Prop 65
• WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Assets
• Cad : https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AZ1035_NEW_2024&p_File_name=ZB5AZ1035.stp, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AZ1035_NEW_2024&p_File_name=ZB5AZ1035_2D-back.DXF, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AZ1035_NEW_2024&p_File_name=ZB5AZ1035_2D-bottom.DXF, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AZ1035_NEW_2024&p_File_name=ZB5AZ1035_2D-front.DXF, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AZ1035_NEW_2024&p_File_name=ZB5AZ1035_2D-isometric.DXF, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AZ1035_NEW_2024&p_File_name=ZB5AZ1035_2D-left.DXF, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AZ1035_NEW_2024&p_File_name=ZB5AZ1035_2D-right.DXF, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AZ1035_NEW_2024&p_File_name=ZB5AZ1035_2D-top.DXF
• Physical Attributes
• Cad Overall Depth : 30 mm
• Cad Overall Height : 27.6 mm
• Cad Overall Width : 46.2 mm
• Conformance Attributes
• Product Certifications : EAC, IECEE CB Scheme, CCC, UL, CSA
• Standards : IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, UL 60947-1, UL 60947-5-1, UL 60947-5-5, UL 1059, UL 486E, CSA C22.2 No 60947-1, CSA C22.2 No 60947-5-1, CSA C22.2 No 158, CSA C22.2 No 65, IACS E10
• Complementary Attributes
• Ie Rated Operational Current : 6 A 120 V, AC-15, A300 IEC 60947-5-1, 3 A 240 V, AC-15, A300 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q300 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q300 IEC 60947-5-1
• Ui Rated Insulation Voltage : 300 V 3)IEC 60947-1
• Uimp Rated Impulse Withstand Voltage : 4 kV IEC 60947-1
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Contact Operation : slow-break, slow-break
• Customizable : 0, no
• Device Composition : body, fixing collar
• Operating Travel : 1.217 mm NC changing electrical state), 4.3 mm total travel)
• Shock Resistance : 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Terminals Description Iso N 1 : (11-12)NC, (11-12)NC
• Vibration Resistance : 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
• Connections Terminals : push-in, <= 2 x 1.5 mm² with wire end ferrule IEC 60947-1, push-in, >= 1 x 0.34 mm² without wire end ferrule IEC 60947-1
• Ie Rated Operational Current : 6 A 120 V, AC-15, A300 IEC 60947-5-1, 3 A 240 V, AC-15, A300 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q300 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q300 IEC 60947-5-1
• Carbon Footprint Of The Distribution Phase A4 : 0.007413259083391998, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.038373942860167966
• Carbon Footprint Of The Installation Phase A5 : 0.005597534426882791, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.2 kg CO2 eq., 0.15735194721341966
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0.03592690140845071
• Medium Desc : Complete body contact assembly, Harmony XB5, single contact, with fixing collar, plastic, 2NC, compact push in terminals
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Global Commercial Status : Commercialised
• Return Indicator : Y
• Stocking Flag : Y
• Legacy Weee Scope : In
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2303008EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : Yes
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Average Percentage Of Recycled Metal Content : 12 %
• Average Percentage Of Recycled Plastic Content : 24 %
• Compatibility Code : ZB5
• Contact Block Type : single
• Contacts Material : silver alloy (Ag/Ni)
• Contacts Type And Composition : 2 NC
• Contacts Usage : standard contacts
• Device Short Name : ZB5
• Fixing Collar Material : plastic
• Head Type : standard
• Mechanical Durability : 10000000 cycles
• Operating Force : 4.5 N NC changing electrical state
• Positive Opening : with IEC 60947-5-1 appendix K
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : complete body/contact assembly
• Protective Treatment : TH
• Range Of Product : Harmony XB5
• Returnability : Yes
• Short Circuit Protection : 10 A cartridge fuse gG IEC 60947-5-1
• Software Version : v5.9.4
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 0.2 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Ith Conventional Free Air Thermal Current : 10 A IEC 60947-5-1
• Contacts Composition : 2 NC
• Connections Terminals 8 Connections Terminals : push-in
• Pep Code : ENVPEP2303008_V2
• Database Version : 2022-01
• Pep Verification Date : 2024-03-24
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : XB5 Modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations.A push button switch's primary purpose is to turn something on or off in industrial applications. This pushbutton power consumption is 0.002W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
• Functional Unit Unit : Unit
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; APAC
• Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; APAC
• Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; APAC
• Environment Attributes Main
• Take Back : Nej
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 12 %
• China Rohs Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.2446635849923131
• Ambient Air Temperature For Operation : -40-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI2303008EN
• Environmental Disclosure : ENVPEP2303008_V2
• Eu Rohs Directive : Compliant
• Ip Degree Of Protection : IP20 IEC 60529
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2303008_V2
• Pep Verification Date : 2024-03-24
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : complete body/contact assembly
• Range Of Product : Harmony XB5
• ETIM
• ETIM 8 : EC000041
• ETIM 9 : EC000041
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : United States
• Overview Attributes
• Device Presentation : basic sub-assemblies
