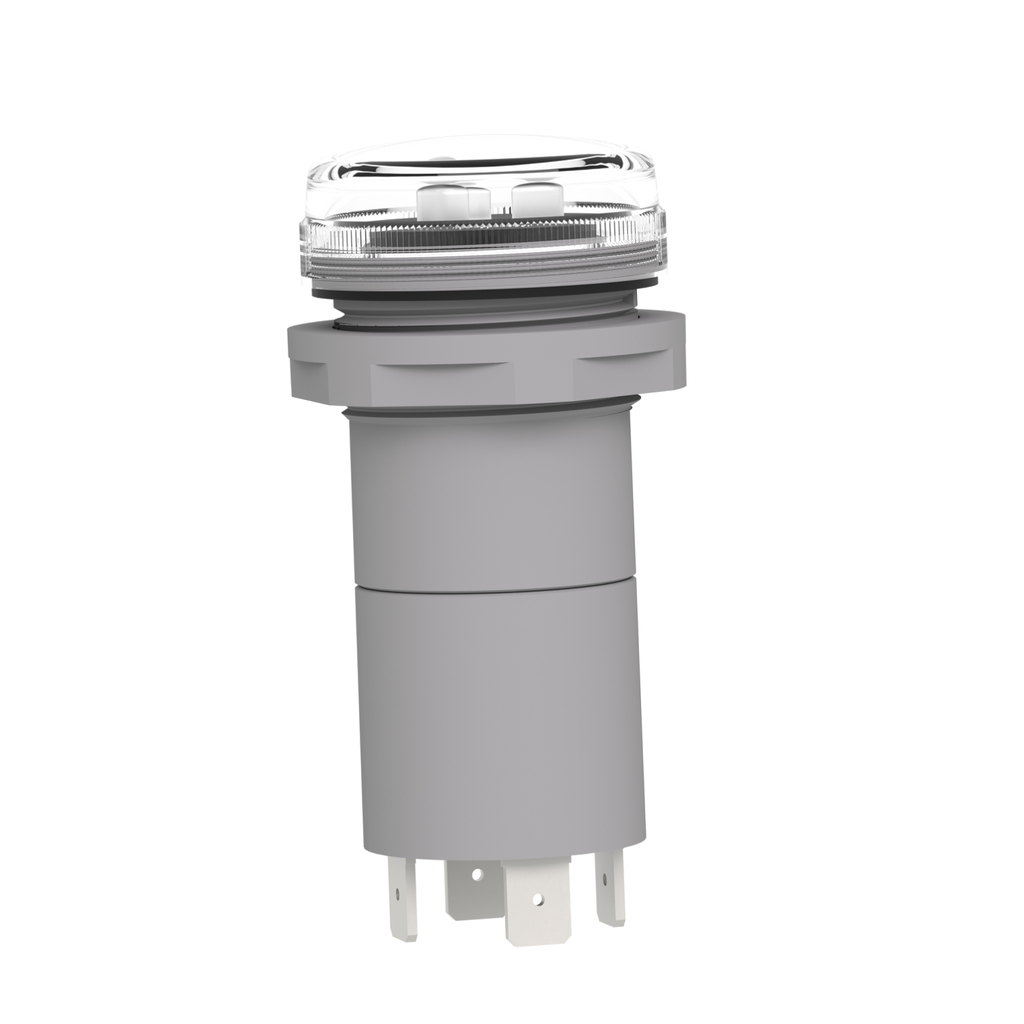

This Harmony XB5, plain lens monolithic red / yellow / green 3-phase voltage presence indicator pilot light, is supplied with a 3-phase 400V AC voltage, uses an integral LED and uses screw clamp terminals. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP67. It is ideal for incoming section in main and secondary low voltage switchboards, with one colored LED per phase. It is designed to fit in a standard 22mm cutout.

• Features
• Quick and easy assembly and disassembly
• Robustness to withstand harsh environments
• With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
• A wide choice of contact blocks for general purposes or specific applications (low current, standard)
• Excellent mechanical connection with operator head
• A large set of accessories to customize your panels
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Light Source Color : green, red, yellow
• Cap Operator Or Lens Color : clear
• Conformance Attributes
• Standards : IEC 60947-5-1, IEC 60947-1, IEC 60947-5-4
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Electromagnetic Compatibility : electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2, electrostatic discharge - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2
• Light Source Color : green, red, yellow
• Carbon Footprint Of The Distribution Phase A4 : 0.0084998333, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.1127623611
• Carbon Footprint Of The Installation Phase A5 : 0.0252579167, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.5 kg CO2 eq., 0.49595
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 135 kg CO2 eq., 135.4480959833
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2308027EN
• Product Repair Index Dam Doc : XB4BS8442-ENVREPAIR-A-EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Function Option Id : STANDARD
• Function Option : Standard
• Bezel Material : plastic
• Bulb Base : integral LED
• Cap Operator Or Lens Color : clear
• Compatibility Code : XB5
• Current Consumption : 4...6 mA
• Device Short Name : XB5
• Fixing Collar Material : plastic
• Light Source : protected LED
• Mounting Diameter : 30 mm
• Package Weight Lbs : 69.000 g
• Phase : 3 phase
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : monolithic pilot light
• Product Repair Index : A
• Range Of Product : Harmony XB5
• Resistance To Electromagnetic Fields : 10 V/m IEC 61000-4-3
• Resistance To Fast Transients : 2 kV IEC 61000-4-4
• Returnability : Yes
• Service Life : 100000 h at rated voltage and 25 °C
• Shape Of Signaling Unit Head : round
• Supply Voltage Limits : 450-450 V AC
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 136 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Uimp Rated Impulse Withstand Voltage2 : 1 kV IEC 61000-4-5
• Us Rated Supply Voltage2 : 400 V
• Connections Terminals : Faston terminals 6.3 mm IEC 60947-1
• Product Repair Index Dam Document Id : XB4BS8442-ENVREPAIR-A-EN
• Medium Desc : Monolithic pilot light, Harmony XB5, 3 phases Voltage, indicator with 3 LED, red, green, yellow, 400V AC
• Stocking Flag : N
• Product Kit Identifier : N
• Pep Code : ENVPEP2308027EN
• Database Version : 2022-01
• Pep Verification Date : 2023-08-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : Pilot light uses an integral LED and screw clamp terminals. This pilot light, designed to last without maintece for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination.This pushbutton power consumption is 0.432W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
• Functional Unit Unit : Unit
• Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
• Global Commercial Status : Commercialised
• Connections Terminals3 : Faston terminals 6.3 mm IEC 60947-1
• Uimp Rated Impulse Withstand Voltage5 : 1 kV IEC 61000-4-5
• Environment Attributes Main
• Take Back : No, Nej
• EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP67 front face), IP20 back face)
• ROHS Exemption Information : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 136.0905660944
• Ambient Air Temperature For Operation : -30-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI2308027EN
• Environmental Disclosure : ENVPEP2308027EN
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2308027EN
• Pep Verification Date : 2023-08-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Phase : 3 phase
• Product Or Component Type : monolithic pilot light
• Range Of Product : Harmony XB5
• Surge Protection And Filtering Attributes
• Surge Withstand : 1 kV IEC 61000-4-5
• Specifications
• Depth : 77 mm
• Overview Attributes
• Device Presentation : monolithic product
