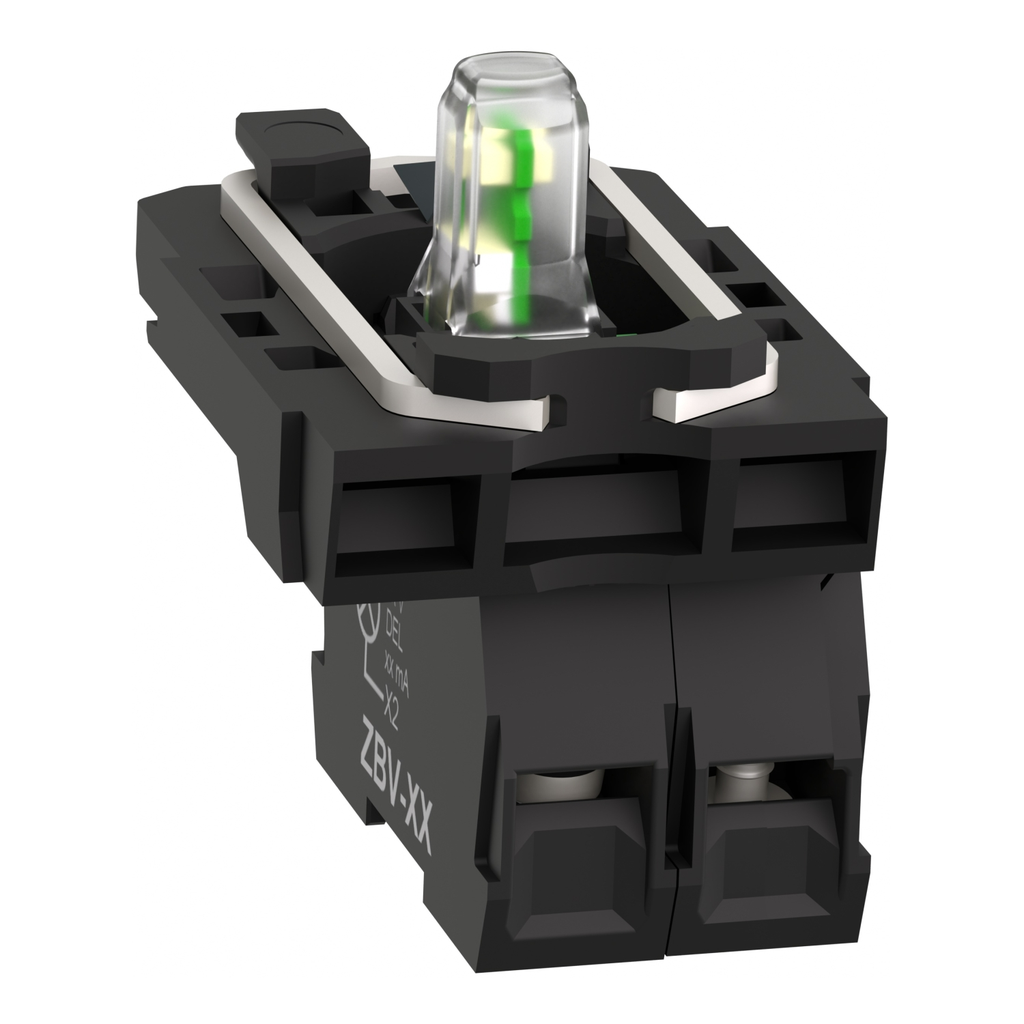

This Harmony XB5, light block with body/fixing collar operates with a universal LED. It has 1 x NO contact and a plastic body and is compatible with Harmony XB5 pilot lights. This light block allows fast and easy replacement and configuration of your sig

• Connections Terminals
• screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
• screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60
• Uimp Rated Impulse Withstand Voltage
• 6 kV IEC 60947-1
• Supply Voltage Limits
• 19.2-30 V DC
• 21.6-26.4 V AC
• Shape Of Screw Head
• cross Philips no 1
• cross pozidriv No 1
• slotted flat Ø 4 mm
• slotted flat Ø 5.5 mm
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.0002155158
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0 kg CO2 eq.
• 0.0253906871
• Standards
• IEC 60947-1
• UL 508
• IEC 60947-5-1
• CSA C22.2 No 14
• JIS C8201-5-1
• IEC 60947-5-4
• JIS C8201-1
• Ui Rated Insulation Voltage
• 600 V 3)IEC 60947-1
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 0.2 kg CO2 eq.
• 0.1740339181
• Electrical Shock Protection Class
• class II conforming to IEC 60536
• Operating Torque
• 0.05 N.m NO changing electrical state
• Accessories
• ZB5AZ905
• ZBY2101
• ZBYLEG503001
• ZBYP2101
• Electrical Durability
• 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
• 1000000 cycles, AC-15, 2 A 230 V 36
• Service Life
• 100000 h at rated voltage and 25 °C
• Operating Force
• 2.3 N NO changing electrical state
• Vibration Resistance
• 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Charge Point Operator
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Electrician
• System Integrator
• IT Channel Partner
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 8 kg CO2 eq.
• 8.0477802198
• Resistance To Fast Transients
• 2 kV IEC 61000-4-4
• Persona Type Ids
• BM9
• EU
• LC
• OM
• OM8
• PB
• SC
• SI
• VR
• Surge Withstand
• 1 kV IEC 61000-4-5
• Us Rated Supply Voltage
• 24 V AC/DC 50/60 Hz
• Electromagnetic Emission
• class B IEC 55011
• Customizable
• no
• 0
• Resistance To Electrostatic Discharge
• 6 kV on contact (on metal parts) IEC 61000-2-6
• 8 kV in free air (in insulating parts) IEC 61000-2-6
• 8 kV in
• Carbon Footprint Of The Distribution Phase A4
• 0.0037922164
• 0 kg CO2 eq.
• Tightening Torque
• 0.8-1.2 N.m IEC 60947-1
• Ith Conventional Free Air Thermal Current
• 10 A IEC 60947-5-1
• Short Circuit Protection
• 10 A cartridge fuse gG IEC 60947-5-1
• Ie Rated Operational Current
• 3 A 240 V, AC-15, A600 IEC 60947-5-1
• 6 A 120 V, AC-15, A600 IEC 60947-5-1
• 6 A 120 V, AC-15, A600 IEC 60947
• Resistance To Electromagnetic Fields
• 10 V/m IEC 61000-4-3
• Operating Travel
• 2.6 mm NO changing electrical state)
• 4.3 mm total travel)
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Electrical Reliability
• λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4
• λ < 10exp(-6) 5 V 1 mA
• Shock Resistance
• 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
• 50 gn 11 ms) half sine wave ac
• Product Certifications
• CSA
• DNV
• BV
• LROS (Lloyds register of shipping)
• UL Listed

• Physical Attributes
• Cad Overall Depth : 32 mm
• Cad Overall Height : 42 mm
• Cad Overall Width : 30 mm
• Light Source Color : white
• Important Information Attributes
• B2B Bullet Point 1 : Compatible with improved color heads
• B2B Bullet Point 2 : Universal LED block to be used for all colors
• B2B Bullet Point 3 : Quick and easy assembly and disassembly
• B2B Bullet Point 4 : Excellent mechanical connection with operator head
• B2B Bullet Point 5 : A wide choice of contact blocks for general purposes or specific applications (low current, standard)
• B2B Bullet Point 6 : Various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
• Local Data Status : Publishable
• Local Publishable Date : 8/18/2025
• Manufacturing Carbon Footprint : 0.174033918
• Distribution Carbon Footprint : 0.003792216
• Installation Carbon Footprint : 0.000215516
• Use Carbon Footprint : 8.04778022
• End Of Life Carbon Footprint : 0.025390687
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2404014EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1930
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Bulb Base : integral LED
• Compatibility Code : ZB5
• Contact Operation : slow-break
• Contacts Material : silver alloy (Ag/Ni)
• Contacts Type And Composition : 1 NO
• Contacts Usage : standard
• Current Consumption : 18 mA
• Device Short Name : ZB5
• Fixing Collar Material : plastic
• Head Type : standard
• Light Block Supply : direct
• Light Source : universal LED
• Light Source Color : white
• Mechanical Durability : 5000000 cycles
• Package Weight Lbs : 29.000 g
• Positive Opening : without
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : complete body/contact assembly and light block
• Protective Treatment : TH
• Range Of Product : Harmony XB5
• Returnability : Yes
• Sale Per Indivisible Quantity : 1
• Signalling Type : steady
• Sustainable Packaging : Yes
• Terminals Description Iso N 1 : (13-14)NO
• Total Lifecycle Carbon Footprint : 8 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 8.251212557
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : complete body/contact assembly and light block
• Range Of Product : Harmony XB5
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=654586&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 8.251212557
• Ambient Air Temperature For Operation : -40-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI2404014EN
• Environmental Disclosure : ENVPEP2404014EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France
• Overview Attributes
• Device Presentation : basic sub-assemblies
