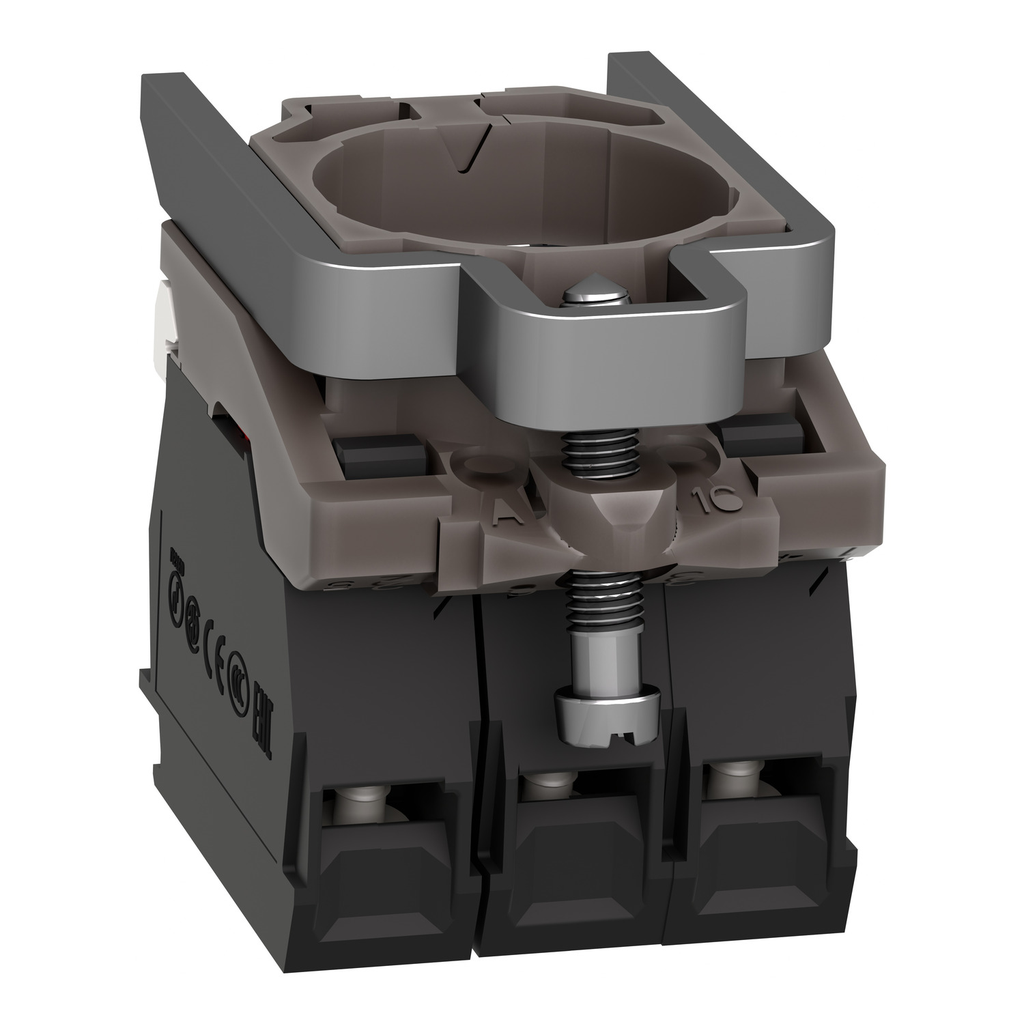

This Harmony XB4, light block with body/fixing collar isoperates with BA9s bulb. It has 1 x NO + 1 x NC contacts and a metal body and is compatible with Harmony XB4 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by connected with BA9s bulb. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 55°C allows versatility in usage of product.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Cad Overall Depth : 37 mm
• Cad Overall Height : 47 mm
• Cad Overall Width : 30 mm
• Complementary Attributes
• Ie Rated Operational Current : 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
• Us Rated Supply Voltage : <= 250 V, <= 250 V
• Ui Rated Insulation Voltage : 600 V 3)IEC 60947-1
• Uimp Rated Impulse Withstand Voltage : 6 kV IEC 60947-1
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Contact Operation : slow-break
• Contacts Material : silver alloy (Ag/Ni)
• Contacts Usage : standard
• Customizable : 0, no
• Electrical Durability : 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
• Electrical Reliability : λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
• Light Source : bulb not included, bulb not included
• Operating Force : 2 N NC changing electrical state, 2.3 N NO changing electrical state
• Operating Travel : 1.5 mm NC changing electrical state), 2.6 mm NO changing electrical state), 4.3 mm total travel)
• Product Or Component Type : complete body/contact assembly and light block
• Protective Treatment : TH
• Shape Of Screw Head : cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Signalling Type : steady
• Terminals Description Iso N 1 : (11-12)NC, (11-12)NC
• Tightening Torque : 0.8-1.2 N.m IEC 60947-1
• Connections Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
• Ie Rated Operational Current : 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
• Carbon Footprint Of The Distribution Phase A4 : 0.011197271, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.1166189084
• Carbon Footprint Of The Installation Phase A5 : 0.0102912281, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.5 kg CO2 eq., 0.5268216374
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 54 kg CO2 eq., 53.893556015
• Contacts Composition : 1 NO + 1 NC
• Certificate Agency : DNV, UL Listed, LROS (Lloyds register of shipping), BV, CSA
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Return Indicator : Y
• Stocking Flag : Y
• Stock Policy : 1
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1808008EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1930
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 5
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Average Percentage Of Recycled Metal Content : 21 %
• Average Percentage Of Recycled Plastic Content : 37 %
• Bulb Base : BA 9s
• Compatibility Code : ZB4
• Contacts Type And Composition : 1 NO + 1 NC
• Device Short Name : ZB4
• Electrical Shock Protection Class : class I conforming to IEC 60536
• Fixing Collar Material : zamak
• Head Type : standard
• Light Block Supply : direct <2.4 W
• Mechanical Durability : 5000000 cycles
• Operating Torque : 0.05 N.m NO changing electrical state
• Positive Opening : with IEC 60947-5-1 appendix K
• Product Availability : Stock - Normally stocked in distribution facility
• Range Of Product : Harmony XB4
• Returnability : Yes
• Sale Per Indivisible Quantity : 1
• Short Circuit Protection : 10 A cartridge fuse gG IEC 60947-5-1
• Software Version : v5.9.4
• Supply Voltage : 250 V
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 55 kg CO2 eq.
• Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Ith Conventional Free Air Thermal Current : 10 A IEC 60947-5-1
• Warranty In Months : 18
• Pep Code : ENVPEP1808008_V2-EN
• Database Version : 2022-01
• Pep Verification Date : 2023-08-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional-unit Description : Harmony XB4 illuminated modular green push button operates with a spring return mechanism uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It has power consumption of 0.436 W with use rate of 71% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
• Functional-unit Quantity : 1
• Functional-unit Unit : Unit
• Reference Lifetime, In Y : 10
• Energy Model - Manufacturing [A1-a3] : Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
• Offer Owner Code : 190786
• Pn : 1
• Environment Attributes Main
• Ambient Air Temperature For Operation : -40-70 °C, -40-70 °C
• Ambient Air Temperature For Storage : -40-70 °C, -40-70 °C
• Take Back : No
• Recycled Metal Content At Cr Level : 21 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 54.5584850598
• Circularity Profile : ENVEOLI1808008EN
• Environmental Disclosure : ENVPEP1808008_V2-EN
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1808008_V2-EN
• Pep Verification Date : 2023-08-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : complete body/contact assembly and light block
• Range Of Product : Harmony XB4
• ETIM
• ETIM 8 : EC000204
• ETIM 9 : EC000204
