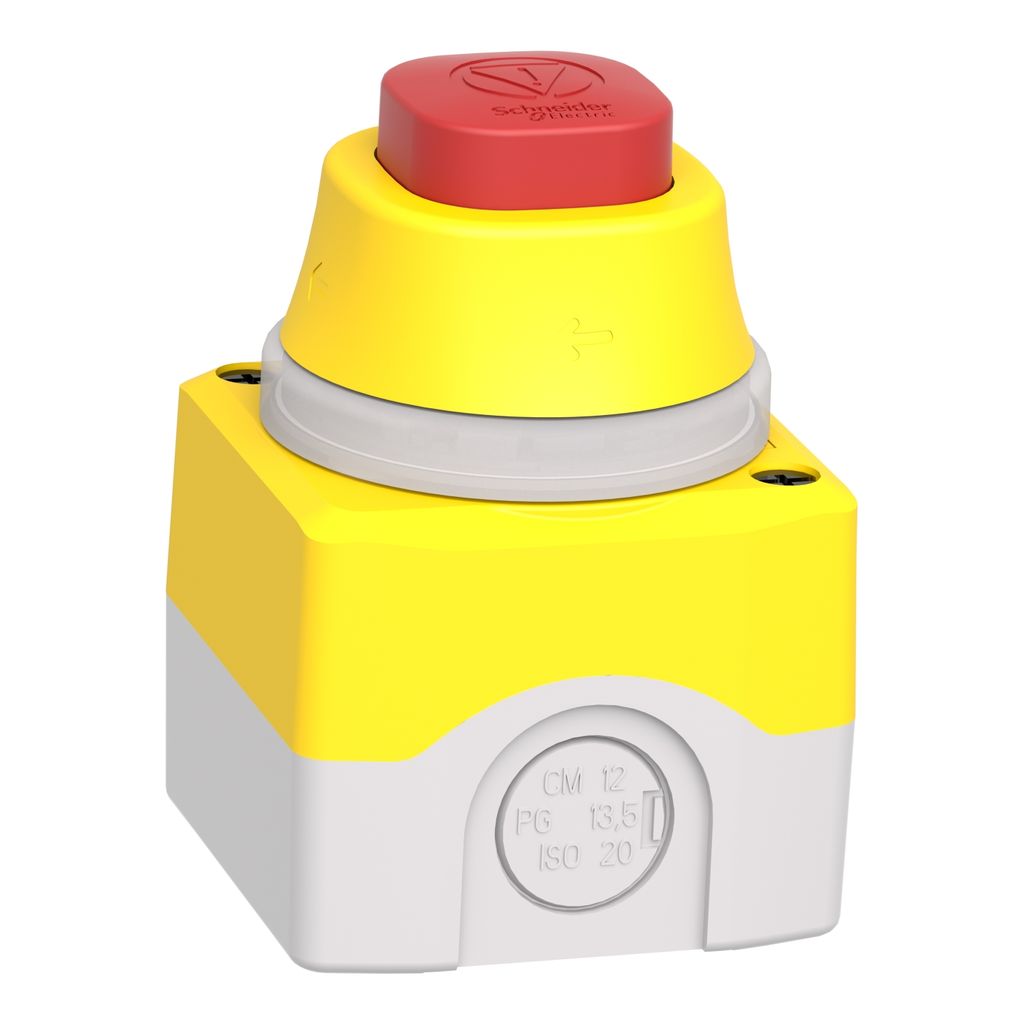

Complete control station, Harmony XALD, XALK, plastic, yellow lid, 1 illuminated emergency stop, white red fixed, turn to release, 1NO 2NC, 24V AC DC

illuminated emergency stop con

SQDXALK84W3BG XALK84W3BG 3606489745660
233.05 / EA
http://schema.org/OutOfStock
Mayer-DDS-Complete control station, Harmony XALD, XALK, plastic, yellow lid, 1 illuminated emergency stop, white red fixed, turn to release, 1NO 2NC, 24V AC DC-2
  • Country of Origin: Czechia
  • Material: Polycarbonate
  • Operating Force: 44 N
  • Warranty Length: 18 mth
This control station with mushroom head push-button for emergency stop function is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. Its schematic is
QTY
  • Product Description
  • Features
  • Specifications
This control station with mushroom head push-button for emergency stop function is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. Its schematic is
  • Connections Terminals
    • screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
    • screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60
  • Color Of Base Of Enclosure
    • light grey RAL 7035)
  • Uimp Rated Impulse Withstand Voltage
    • 6 kV IEC 60947-1
  • Shape Of Screw Head
    • cross Philips no 1
    • cross pozidriv No 1
    • slotted flat Ø 4 mm
    • slotted flat Ø 5.5 mm
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.0012969175
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0 kg CO2 eq.
    • 0.0405979209
  • Standards
    • CSA C22.2 No 14
    • IEC 60947-5-1
    • IEC 60947-5-4
    • UL 508
    • IEC 60947-1
    • JIS C 4520
  • Ui Rated Insulation Voltage
    • 600 V 3)IEC 60947-1
  • Cable Entry
    • 1 knock-out for cable entry 0-14 mm
    • 2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm
  • Ip Degree Of Protection
    • IP66 IEC 60529
    • IP67 IEC 60529
    • IP69 IEC 60529
    • IP69K ISO 20653
    • Type 13 UL 50E
    • Type 12 UL 50E
    • Type 4 UL 50E
    • Type 4X UL 50E
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 1 kg CO2 eq.
    • 1.3993612815
  • Accessories
    • ZBZ58
    • ZBZ1605
    • ZBY9W2B330
    • ZBY9420
    • ZBY9121
  • Electrical Durability
    • 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    • 1000000 cycles, AC-15, 2 A 230 V 36
  • Electrical Insulation Class
    • class II IEC 61140
  • Vibration Resistance
    • 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
    • 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
    • 25 mm peak to peak (f= 2-10 Hz) conforming to IEC
  • Color Of Cover
    • yellow RAL 1021)
  • Positive Opening
    • with IEC 60947-5-1 appendix K
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 14 kg CO2 eq.
    • 13.5352512
  • Us Rated Supply Voltage
    • 24 V AC/DC
  • Resistance To Electrostatic Discharge
    • 4 kV on contact (on metal parts) IEC 61000-4-2
    • 8 kV in free air (in insulating parts) IEC 61000-4-2
    • 8 kV in
  • Carbon Footprint Of The Distribution Phase A4
    • 0.0277404226
    • 0 kg CO2 eq.
  • Tightening Torque
    • 0.8-1.2 N.m IEC 60947-1
  • Ith Conventional Free Air Thermal Current
    • 10 A IEC 60947-5-1
  • Resistance To High Pressure Washer
    • 7000000 Pa 55 °C 0.1 m
  • Short Circuit Protection
    • 10 A cartridge fuse gG IEC 60947-5-1
  • Control Station Composition
    • 1 mushroom head push-button, red 1 NO + 2 NC
  • Control Station Application
    • emergency switching off function
    • emergency stop function
  • Ie Rated Operational Current
    • 3 A 240 V, AC-15, A600 IEC 60947-5-1
    • 6 A 120 V, AC-15, A600 IEC 60947-5-1
    • 6 A 120 V, AC-15, A600 IEC 60947
  • Operating Travel
    • 1.5 mm NC changing electrical state)
    • 4.3 mm total travel)
  • Electrical Reliability
    • λ < 10exp(-6) 5 V, 1 mA IEC 60947-5-4
    • λ < 10exp(-8) 17 V, 5 mA IEC 60947-5-4
    • λ < 10exp(-8) 17 V, 5 mA
  • Shock Resistance
    • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
    • 50 gn 11 ms) half sine wave ac
  • Product Certifications
    • UL Listed
    • CSA
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 7/9/2025
    • Manufacturing Carbon Footprint : 1.399361282
    • Distribution Carbon Footprint : 0.027740423
    • Installation Carbon Footprint : 0.001296918
    • Use Carbon Footprint : 13.5352512
    • End Of Life Carbon Footprint : 0.040597921
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2506022EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant with Exemptions
    • ROHS Eur Conformity Date : 1930
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 7
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Compatibility Code : XALK
    • Contact Operation : slow-break
    • Contacts Material : silver alloy (Ag/Ni)
    • DC Control Voltage : 24-24 V
    • Device Short Name : XALK
    • Material : polycarbonate
    • Mechanical Durability : 300000 cycles
    • Operating Force : 44 N
    • Operator Profile : red square 32 mm
    • Operators Description : red unmarked 1 NO + 2 NC
    • Package Weight Lbs : 213.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Destination : for XB5 Ø 22 mm control and signalling units
    • Product Or Component Type : complete control station
    • Protective Treatment : TH
    • Range Of Product : Harmony XALK
    • Reset : turn to release
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 15 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 15.00424774
    • Relationshiptype : Compatible relationship
    • Ac Control Voltage 50 Hz : 24-24 V
    • Ac Control Voltage 60 Hz : 24-24 V
    • Number Of Command Positions : 1
    • Number Of Contacts As Change Over Contact : 0
    • Number Of Contacts As Normally Closed Contact : 0
    • Number Of Contacts As Normally Open Contact : 0
    • Number Of Indicator Lights : 0
    • Number Of Key Switches : 0
    • Number Of Mushroom Shaped Push Buttons : 1
    • Number Of Push Buttons : 0
    • Number Of Selector Switches : 0
    • Input #2 Ac Control Voltage 50 Hz : 24-24 V
    • Input #2 Ac Control Voltage 60 Hz : 24-24 V
    • Input #2 Number Of Command Positions : 1
    • Input #2 Number Of Contacts As Change Over Contact : 0
    • Input #2 Number Of Contacts As Normally Closed Contact : 0
    • Input #2 Number Of Contacts As Normally Open Contact : 0
    • Input #2 Number Of Indicator Lights : 0
    • Input #2 Number Of Key Switches : 0
    • Input #2 Number Of Mushroom Shaped Push Buttons : 1
    • Input #2 Number Of Push Buttons : 0
    • Input #2 Number Of Selector Switches : 0
  • General Attributes
    • Product Or Component Type : complete control station
    • Range Of Product : Harmony XALK
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=475004763&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0%
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 15.00424774
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Circularity Profile : ENVEOLI2506022EN
    • Environmental Disclosure : ENVPEP2506022EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Czechia
