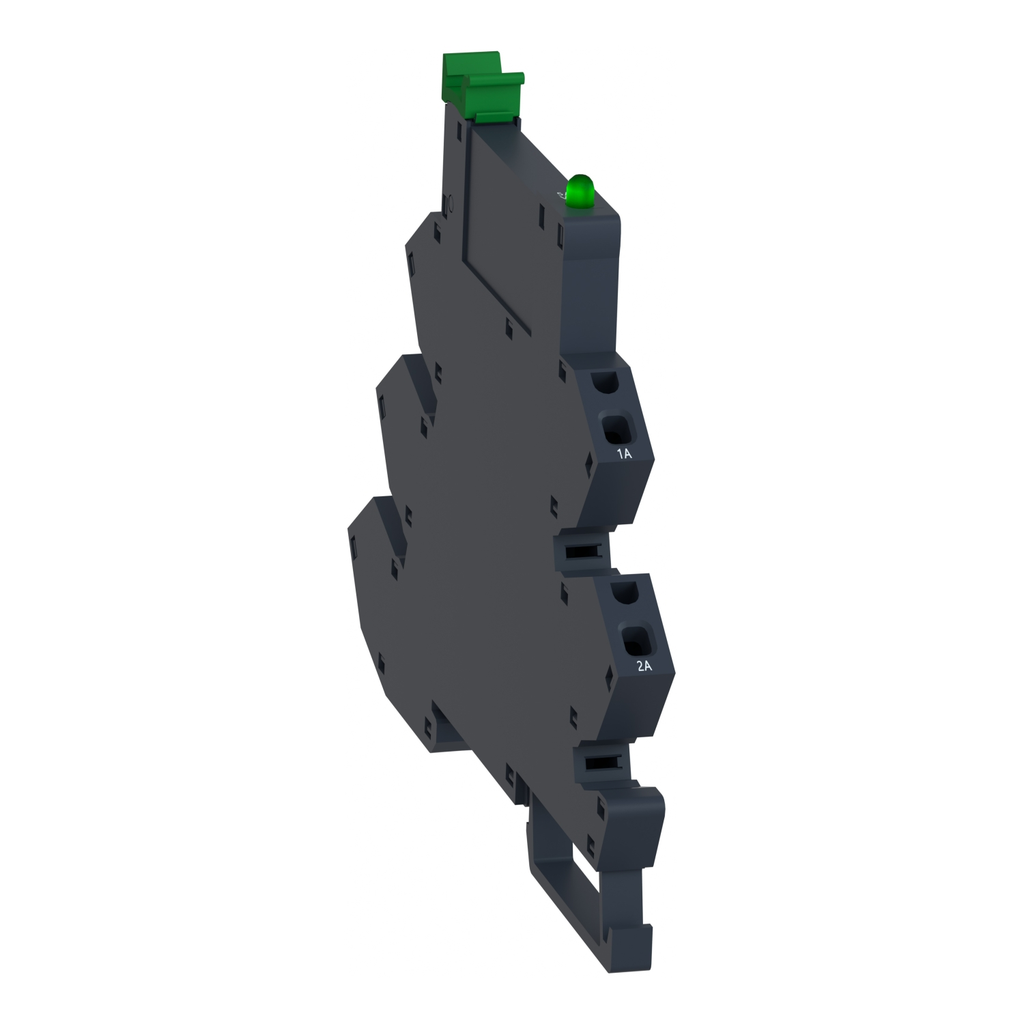

pre-assembled relay, Harmony Solid State Relays, 2A, zeroVoltage switching, spring sockets, input 16...30V DC, output 24...250V AC

HARMONY, SOLID STATE RELAY PRE

SQDSSL1A12BDPR SSL1A12BDPR 3606489563073
36.02 / EA
http://schema.org/OutOfStock
Mayer-DDS-pre-assembled relay, Harmony Solid State Relays, 2A, zeroVoltage switching, spring sockets, input 16...30V DC, output 24...250V AC-2
  • Dielectric Strength: 2500 V
  • Output Voltage: ...250 V
  • Warranty Length: 18 mth
This slim interface solid state relay belongs to the Schneider Electric Harmony solid state relays range. This is a pre-assembled relay mounted on a socket that has a built-in reverse polarity protection circuit and a LED indicator. This is a 2A zero voltage switching slim relay with 16Vdc to 30Vdc input and 24Vac to 250 Vac output. This pre-assembled relay is a ready-to-go package saving assembly time. This 6mm relay has an IP67 water resistant encapsulation and a IP20 socket protection. The relay socket connection is by spring terminal type with a lever for locking or releasing the relay. This SSL weighs 0.033Kg. It is the ideal solution for packaging, HVAC, injection molding, textile machines, medical equipment, and heating control applications. It conforms to international standard and certifications like IEC, UL, CSA, CE, ROHS, GOST, EN, and REACH. It is sold in lots of 30. This is a complete range of control input and load output configurations for both AC and DC switching applications. The pre-assembled range in SSL brings you easier selection, time-saving in installation and robustness.
QTY
  • Product Description
  • Features
  • Specifications
This slim interface solid state relay belongs to the Schneider Electric Harmony solid state relays range. This is a pre-assembled relay mounted on a socket that has a built-in reverse polarity protection circuit and a LED indicator. This is a 2A zero voltage switching slim relay with 16Vdc to 30Vdc input and 24Vac to 250 Vac output. This pre-assembled relay is a ready-to-go package saving assembly time. This 6mm relay has an IP67 water resistant encapsulation and a IP20 socket protection. The relay socket connection is by spring terminal type with a lever for locking or releasing the relay. This SSL weighs 0.033Kg. It is the ideal solution for packaging, HVAC, injection molding, textile machines, medical equipment, and heating control applications. It conforms to international standard and certifications like IEC, UL, CSA, CE, ROHS, GOST, EN, and REACH. It is sold in lots of 30. This is a complete range of control input and load output configurations for both AC and DC switching applications. The pre-assembled range in SSL brings you easier selection, time-saving in installation and robustness.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Standards : IEC 60950-1, IEC 61000, IEC 62314, IEC 61984, EN 61984
  • Complementary Attributes
    • Maximum I T For Fusing : 285 A².s for 10 ms at 50 Hz, 260 A².s for 8.3 ms at 60 Hz
    • Maximum Voltage Drop : <1.1 V on-state, <1.1 V on-state
    • Maximum Leakage Current : 4 mA off-state
    • Maximum Switching Voltage : 5 V DC turn-off
    • Minimum Switching Voltage : 16 V DC turn-on
    • UC Control Circuit Voltage : 16...30 V DC
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Response Time : 0.5 cycle (turn-on), 0.5 cycle (turn-off)
    • Carbon Footprint Of The Distribution Phase A4 : 0.0042577601, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0048252207
    • Carbon Footprint Of The Installation Phase A5 : 0.002161025, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.6 kg CO2 eq., 0.5817817658
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 10 kg CO2 eq., 10.4722766667
    • Connections Terminals : flexible cable with cable end, 0.2...1.5 mm² AWG 24...AWG 16), solid cable with cable end, 0.2...1.5 mm² AWG 24...AWG 16)
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1405004EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Device Short Name : SSL
    • Dielectric Strength : 2500 V for input/output
    • DV DT : 500 V/µs off-state at maximum voltage
    • Flame Retardance : V0 conforming to UL 94
    • Package Weight Lbs : 27.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : pre-assembled plug-in relay with socket
    • Range Of Product : Harmony Solid State Relays
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 11 kg CO2 eq.
    • Relationship Type : Spare part relationship
    • Pep Code : ENVPEP1405004EN
    • Pep Verification Date : 2017-04-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • PSR Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 30% use rate, in compliance with French standards.
    • Functional Unit Unit : unité (unit)
    • Product Kit Identifier : N
    • Product Manager : LEK YEE ALEX THO
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 11.0653024383
    • Circularity Profile : ENVEOLI1405004EN
    • Environmental Disclosure : ENVPEP1405004EN
    • IP Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1405004EN
    • Pep Verification Date : 2017-04-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • PSR Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : pre-assembled plug-in relay with socket
    • Range Of Product : Harmony Solid State Relays
  • Output Attributes
    • Solid State Output Type : zero voltage switching, SCR output
    • Output Switching Mode : zero voltage switching
    • Output Voltage : 24...250 V AC
  • Surge Protection And Filtering Attributes
    • Surge Current : 120 A 16.6 ms, 115 A 20 ms
  • Contractual Warranty Attributes
    • Warranty Period : 18 Months
    • Warranty : 18 Months
  • Overview Attributes
    • Device Presentation : complete product
