Harmony, Solid state relay, 75 A, DIN rail mount, zero voltage switching, thermal pad and smart diagnostic, input 4-32 V DC, output 48-660 V AC

HARMONY, SOLID STATE RELAY, 75

SQDSSP1A475BDS SSP1A475BDS 3606485442259
175.92 / EA
http://schema.org/OutOfStock
Mayer-DDS-Harmony, Solid state relay, 75 A, DIN rail mount, zero voltage switching, thermal pad and smart diagnostic, input 4-32 V DC, output 48-660 V AC-1
  • Country of Origin: USA
  • Dielectric Strength: 4 kV
  • Output Voltage: 48-660 V

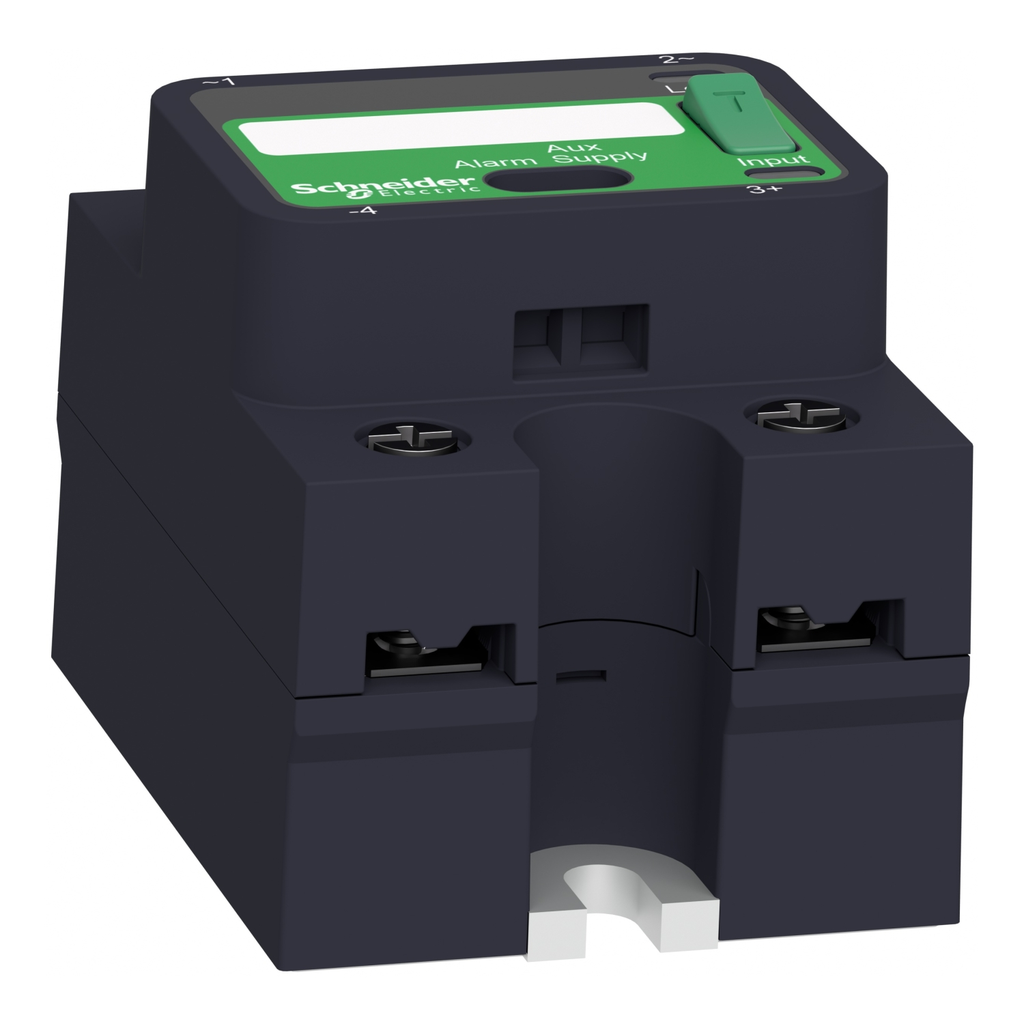

SSP panel mount relay is part of the Harmony Solid sate relays range. This single-phase panel mount static relay accepts wiring with either bare cable, crimped cable ends, fork lugs or ring lugs. Its rated current is 75A, is controlled withA 4V to 32V DC circuit, has a rated load voltage of 48V to 660V AC output. It also has a test button for easy debugging, testing and commissioning. It mounts on metallic panel surface, with an excellent thermal dissipation capability thanks to its factory-installed thermal pad, or on DIN rails with an accessory heatsink It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. This premium product conforms to international standard and certifications.
QTY
  • Product Description
  • Features
  • Specifications
SSP panel mount relay is part of the Harmony Solid sate relays range. This single-phase panel mount static relay accepts wiring with either bare cable, crimped cable ends, fork lugs or ring lugs. Its rated current is 75A, is controlled withA 4V to 32V DC circuit, has a rated load voltage of 48V to 660V AC output. It also has a test button for easy debugging, testing and commissioning. It mounts on metallic panel surface, with an excellent thermal dissipation capability thanks to its factory-installed thermal pad, or on DIN rails with an accessory heatsink It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. This premium product conforms to international standard and certifications.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=SSP1A150BDS_NEW_2024
  • Conformance Attributes
    • Product Certifications : CSA, EAC, UL, CE
    • Standards : UL 508, IEC 60950-1, IEC 62314, CSA C22.2 No 14-13
  • Complementary Attributes
    • Maximum Horse Power Rating : 1.5 hp 120 V AC, 3 hp 240 V AC, 7.5 hp 480 V AC
    • Maximum I T For Fusing : 4150 A².s for 8.33 ms at 60 Hz, 4555 A².s for 10 ms at 50 Hz
    • Maximum Voltage Drop : <1.15 V on-state, <1.15 V on-state, <1.15 V on-state, <1.15 V on-state
    • Uc Control Circuit Voltage : 4...32 V DC, 4...32 V
    • Uimp Rated Impulse Withstand Voltage : 6 kV output to case, 6 kV input to output
    • Absolute Maximum Voltage : 1200 V
    • Line Rated Current : 75 A
    • Maximum Leakage Current : 1 mA off-state
    • Maximum Output Current : 30 mA 32 V DC
    • Maximum Switching Voltage : 1 V DC turn-off
    • Minimum Load : 150 mA
    • Minimum Switching Voltage : 4 V DC turn-on
    • Rated Current : 75 A
  • Important Information Attributes
    • Dielectric Strength : 4 kV AC for input/output, 4 kV AC for input or output to case
    • Electromagnetic Compatibility : electrostatic discharge 6 kV criteria A contact discharge conforming to IEC 61000-4-2, electrostatic discharge 8 kV criteria A air discharge conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test criteria A output ports conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test criteria B alarm port conforming to IEC 61000-4-3, electrical fast transient/burst immunity test 1 kV, 5/100 kHz criteria B output ports conforming to IEC 61000-4-4, surge immunity test 1 kV criteria A output ports line to line conforming to IEC 61000-4-5, surge immunity test 2 kV criteria A output ports line to earth conforming to IEC 61000-4-5
    • Local Signalling : LED, steady, green ON status control input/test button actuated, LED, steady, amber ON status load, LED, flashing, amber control input to energise load, LED, steady, red open-circuit control input, LED, flashing, red load cut-off/short-circuit
    • Marking : CSA, UL, EAC, CE
    • Protection Device Type : type 1 - 50 A miniature circuit breaker (MCB) B, type 2 - 40 A miniature circuit breaker (MCB) B
    • Response Time : 0.5 cycle (turn-on), 0.5 cycle (turn-off)
    • Safety Reliability Data : B10d = 1731395, MTTFd = 1875.9 years
    • Tightening Torque : 1.5...1.7 N.m for input, 2...2.2 N.m for output, 17.7...19.47 lb.in for output, 13.27...15.04 lb.in for input, 0.5...0.6 N.m for auxillary terminal, 4.4...5.3 lb.in for auxillary terminal
    • Connections Terminals : ring lugs 11.7 x 4.5 mm output, screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input, screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output, screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input, screw terminals 0.5...8.26 mm², AWG 20...AWG 8) without cable end output, forked type tag connectors 9.2 x 4 mm input, ring lugs 9.2 x 4 mm input, forked type tag connectors 11.7 x 4.5 mm output, screw connectors
    • Carbon Footprint Of The Distribution Phase A4 : 0.0154824742, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0284090722
    • Carbon Footprint Of The Installation Phase A5 : 0.0006729155, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 1 kg CO2 eq., 1.3318762887
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 7 826 kg CO2 eq., 7826.3624408616
    • Medium Desc : Harmony, Solid state relay, 75 A, DIN rail mount, zero voltage switching, thermal pad and smart diagnostic, input 4-32 V DC, output 48-660 V AC
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : Commercialised
    • Return Indicator : N
    • Stocking Flag : Y
    • Legacy Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1505006EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Product Kit Identifier : N
    • Auxiliary Connection Terminal : screw-type connector, 0.5...1.5 mm² AWG 20...AWG 16)slotted Philips
    • Control Type : with test button
    • Cos Phi : 0.5-0.5 (with maximum load)
    • Device Short Name : SSP1
    • Dv Dt : 500 V/µs off-state at maximum voltage
    • Insulation Resistance : 1000 MOhm at 500 V DC
    • Load Current : 0.15-75 A
    • Mounting Support : panel
    • Overvoltage Category : III
    • Phase : 1 phase
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : panel mount relay
    • Provided Equipment : thermal pad
    • Range Of Product : Harmony Solid State Relays
    • Returnability : No
    • Software Version : EIME v5.8.1
    • Sustainable Packaging : Yes
    • Thermal Resistance : 0.3 °C/W junction to case
    • Total Lifecycle Carbon Footprint : 7 828 kg CO2 eq.
    • Control Circuit Voltage : 4...32 V
    • Pep Code : ENVPEP1505006EN
    • Database Version : 2016-11
    • Pep Verification Date : 2019-05-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Psr Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : To switch ON/OFF electronic contact during 10 years at a 50% use rate.
    • Functional Unit Unit : unité (unit)
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Mexico
    • Energy Model Installation A5 2 : Electricity Mix; AC; < 1kV; EU-27
    • Energy Model Use B6 2 : Electricity Mix; AC; < 1kV; EU-27
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; AC; < 1kV; EU-27
  • Environment Attributes Main
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 7827.7388816121
    • Ambient Air Temperature For Operation : -40-80 °C
    • Ambient Air Temperature For Storage : -40-125 °C
    • Circularity Profile : ENVEOLI1505006EN
    • Environmental Disclosure : ENVPEP1505006EN
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1505006EN
    • Pep Verification Date : 2019-05-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Psr Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Phase : 1 phase
    • Product Or Component Type : panel mount relay
    • Provided Equipment : thermal pad
    • Range Of Product : Harmony Solid State Relays
  • ETIM
    • ETIM 8 : EC002055
    • ETIM 9 : EC002055
  • Output Attributes
    • Solid State Output Type : zero voltage switching, SCR output
    • Maximum Output Current : 30 mA 32 V DC
    • Output Switching Mode : zero voltage switching
    • Output Voltage : 48...660 V AC
  • Surge Protection And Filtering Attributes
    • Surge Current : 1000 A 16.6 ms
  • Input Attributes
    • Cos Phi : 0.5-0.5 (with maximum load)
    • Input Current Limits : 7-12 mA
  • Specifications
    • Country of Origin : United States
  • Overview Attributes
    • Device Presentation : complete product
