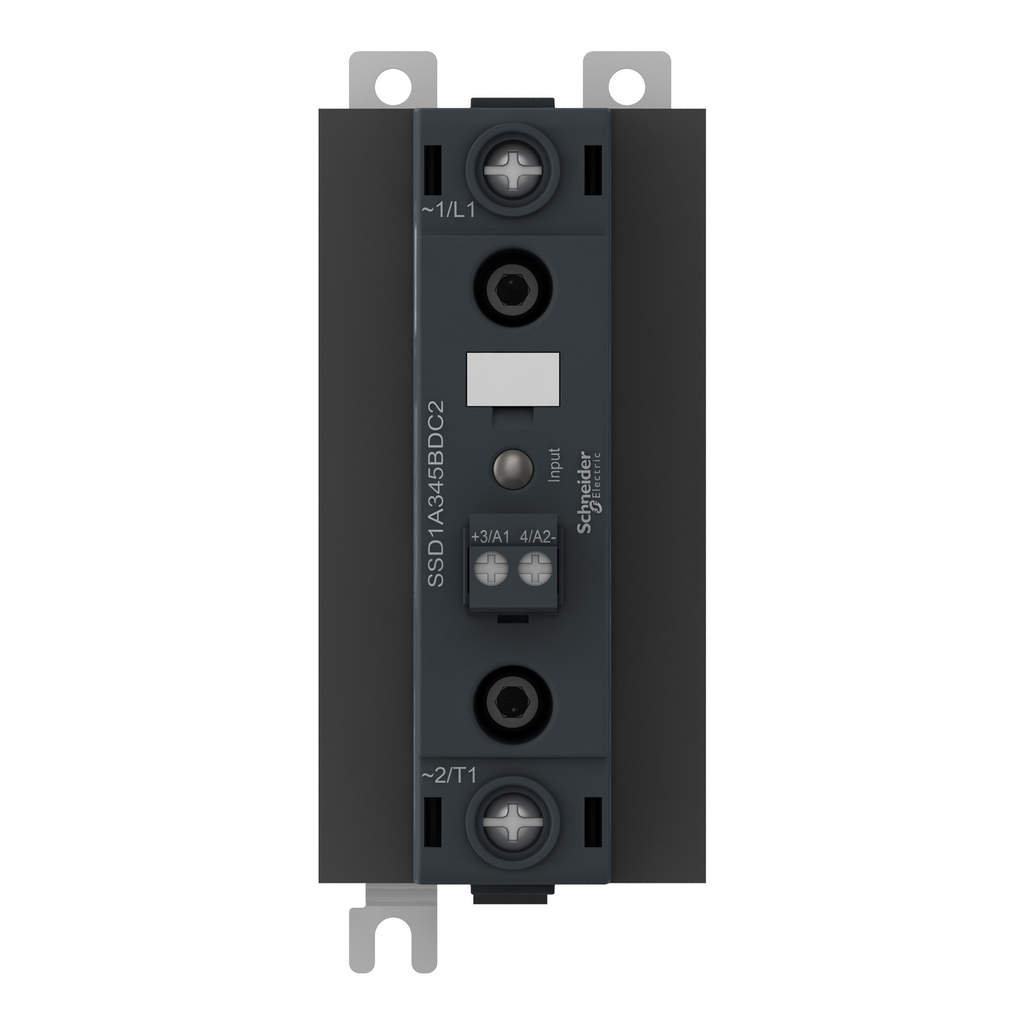

DIN rail mount, Harmony Solid State Relays, 45A, zeroVoltage switching, contactor configuration screw input, input 4 to 32V DC, output 48 to 600V AC

HARMONY, SOLID STATE RELAY, 45

SQDSSD1A345BDC2 SSD1A345BDC2 3606489808013
113.46 / EA
http://schema.org/OutOfStock
Mayer-DDS-DIN rail mount, Harmony Solid State Relays, 45A, zeroVoltage switching, contactor configuration screw input, input 4 to 32V DC, output 48 to 600V AC-2
  • Dielectric Strength: 4 kV
  • Output Voltage: 48-600 V
This solid state DIN rail mounted relay belongs to the Schneider Electric Harmony solid state relays range. This electrical relay mounts on 35mm DIN rail and comes with a secure mounting latch. This is a 45A power rated relay with pluggable screw input contactor type configuration and zero voltage switching. This single-phase relay has a IP20 built-in heat sink and a built-in transient overvoltage protection. It is controlled with a 4Vdc to 32Vdc input, has a rated load voltage of 48Vac to 600Vac. It also has a LED input voltage status indicator and clip-in legend for easy identification. It weighs 0.507Kg and its dimensions are, 45mm wide, 154.4mm deep, 111.5mm high. It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications. This relay conforms to international standards like EN/IEC 60068, IEC 61373, UL 508, CSA C22.2 No 14-13 and certifications like UL and CSA. Besides the existing standard screw connection for input and output, SSD provides more wiring options like the spring or screw pluggable input connectors, and telescopic or clamp cage output terminals.
QTY
  • Product Description
  • Features
  • Specifications
This solid state DIN rail mounted relay belongs to the Schneider Electric Harmony solid state relays range. This electrical relay mounts on 35mm DIN rail and comes with a secure mounting latch. This is a 45A power rated relay with pluggable screw input contactor type configuration and zero voltage switching. This single-phase relay has a IP20 built-in heat sink and a built-in transient overvoltage protection. It is controlled with a 4Vdc to 32Vdc input, has a rated load voltage of 48Vac to 600Vac. It also has a LED input voltage status indicator and clip-in legend for easy identification. It weighs 0.507Kg and its dimensions are, 45mm wide, 154.4mm deep, 111.5mm high. It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications. This relay conforms to international standards like EN/IEC 60068, IEC 61373, UL 508, CSA C22.2 No 14-13 and certifications like UL and CSA. Besides the existing standard screw connection for input and output, SSD provides more wiring options like the spring or screw pluggable input connectors, and telescopic or clamp cage output terminals.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Standards : IEC 61373:class B: category 1, IEC 60947-4-3, IEC 62314, IEC 60950-1, CSA C22.2 No 14-13, UL 508
  • Complementary Attributes
    • Maximum I T For Fusing : 2563 A².s for 10 ms, 2343 A².s for 8.33 ms
    • Maximum Voltage Drop : <1.25 V on-state, <1.25 V on-state
    • UIMP Rated Impulse Withstand Voltage : 6 kV for input/output circuit, 6 kV for input or output to case
    • Maximum Leakage Current : 1 mA off-state
    • Maximum Switching Voltage : 1 V DC turn-off
    • Minimum Switching Voltage : 4 V DC turn-on
    • UC Control Circuit Voltage : 4...32 V DC
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Coordination Type : type 1, type 2
    • Dielectric Strength : 4 kV AC for input/output circuit, 4 kV AC for input or output to case
    • Electromagnetic Compatibility : electrostatic discharge 6 kV criteria A contact discharge conforming to IEC 61000-4-2, electrostatic discharge 8 kV criteria A air discharge conforming to IEC 61000-4-2, conducted RF disturbances 10 V, 0.15...80 MHz criteria A level 3 conforming to IEC 61000-4-6, electrical fast transient/burst immunity test 2 kV, 5/100 kHz criteria B output ports conforming to IEC 61000-4-4, electrical fast transient/burst immunity test 1 kV, 5/100 kHz criteria B input ports conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test 10 V/m, 80 MHz...1 GHz criteria A conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test 3 V/m, 1.4...2 GHz criteria A conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test 1 V/m, 2...2.7 GHz criteria A conforming to IEC 61000-4-3, surge immunity test 1 kV criteria B output ports line to line conforming to IEC 61000-4-5, surge immunity test 2 kV criteria B output ports line to earth conforming to IEC 61000-4-5, radiated emission environment B for DC input supply conforming to IEC 60947-4-3, conducted emission environment B for DC input supply conforming to IEC 60947-4-3, immunity to microbreaks and voltage drops 30 %, 500 ms criteria A conforming to IEC 61000-4-11, immunity to microbreaks and voltage drops 100 %, 20 ms criteria B conforming to IEC 61000-4-11
    • Motor Power KW : 0.75 kW/1 hp at 120 V AC, 2.24 kW/3 hp at 240 V AC, 3.73 kW/5 hp at 480 V AC
    • Response Time : 0.5 cycle (turn-on), 0.5 cycle (turn-off)
    • Shock Resistance : 50 gn for 11 ms (peak acceleration) , longitudinal position conforming to IEC 60068-2-27, 30 gn for 11 ms (peak acceleration) , vertical position conforming to IEC 60068-2-27
    • Tightening Torque : 0.5 N.m for control input, 5 lb.in for control input, 2...2.2 N.m for load output, 18...20 lb.in for load output
    • Carbon Footprint Of The Distribution Phase A4 : 0.071607566, 0.1 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.0760758396
    • Carbon Footprint Of The Installation Phase A5 : 0.0028536425, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 7 kg CO2 eq., 6.5945518868
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 486 kg CO2 eq., 485.930176
    • Connections Terminals : plug-inscrew terminals, clamping connection capacity:0.08...3.30 mm², AWG 28...AWG 12 for input, clamp terminal, clamping connection capacity:10...26.67 mm², AWG 8...AWG 3 for output
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-29
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Contact Form : Form 5 semiconductor output DOL contactor
    • Device Short Name : SSD1
    • DV DT : 500 V/µs off-state at maximum rated voltage
    • Flame Retardance : V-0 conforming to UL 94
    • Inrush Current : 750 A at 60 Hz
    • Insulation Resistance : 1000 MOhm at 500 V DC
    • Local Signalling : LED (green) for control voltage
    • Mounting Support : 35 mm symmetrical DIN rail conforming to IEC 60715
    • Package Weight Lbs : 557.000 g
    • Power Factor : 0.5 with maximum load
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Configuration Type : contactor configuration with pluggable screw input
    • Product Or Component Type : modular DIN rail relay
    • Range Of Product : Harmony Solid State Relays
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 493 kg CO2 eq.
    • Vibration Resistance : 0.35 mm (f = 10-150 Hz) conforming to IEC 60068-2-6
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1508007_V3
    • Pep Verification Date : 2019-12-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • PSR Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : To switch ON/OFF electronic contact during 10 years at a 50% use rate.
    • Functional Unit Unit : unité (unit)
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 492.6752649349
    • Environmental Disclosure : ENVPEP1508007_V3
    • IP Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1508007_V3
    • Pep Verification Date : 2019-12-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • PSR Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : modular DIN rail relay
    • Range Of Product : Harmony Solid State Relays
  • Output Attributes
    • Output Switching Mode : zero voltage switching
    • Output Voltage : 48...600 V AC
    • Solid State Output Type : zero voltage switching
  • Input Attributes
    • Input Current Limits : 10-15 mA
  • Overview Attributes
    • Device Presentation : complete product
