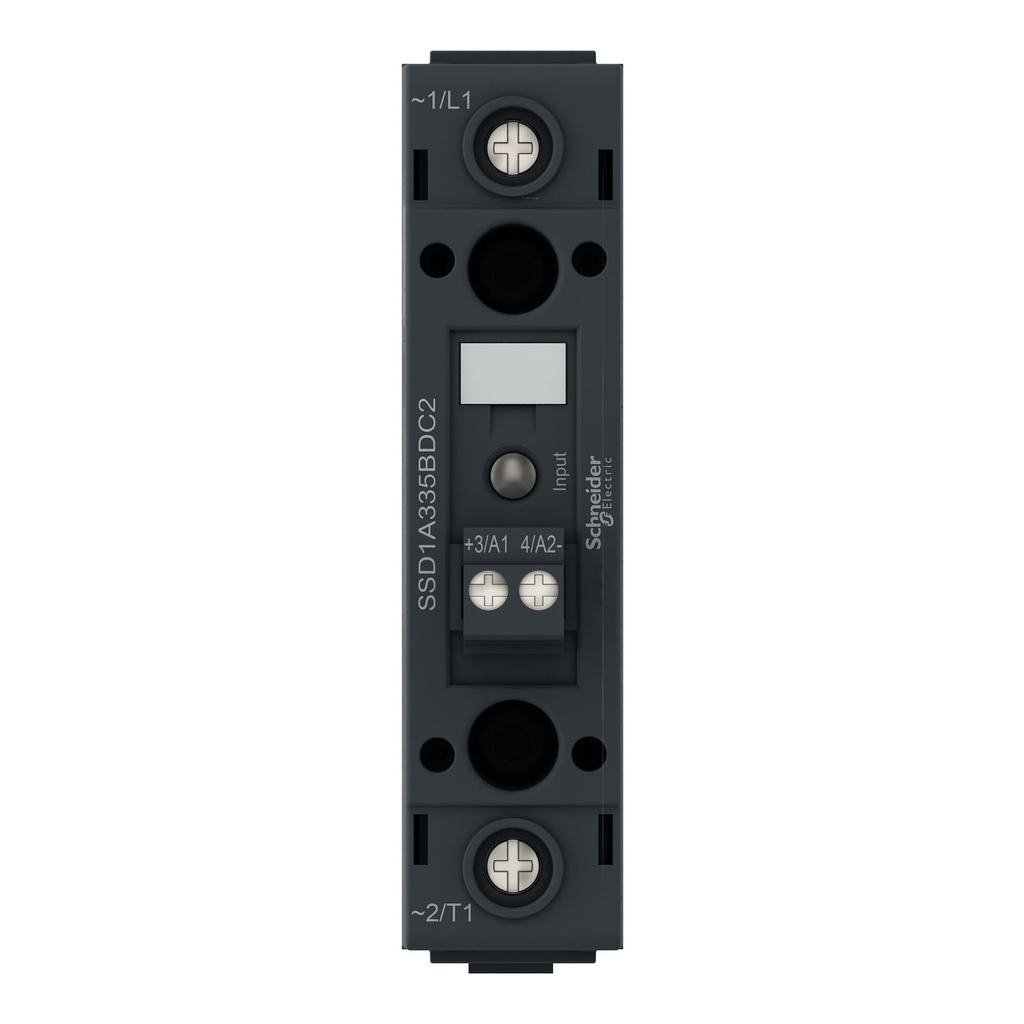

This solid state DIN rail mounted relay belongs to the Schneider Electric Harmony solid state relays range. This electrical relay mounts on 35mm DIN rail and comes with a secure mounting latch. This is a 35A power rated relay with pluggable screw input contactor type configuration and zero voltage switching. This single-phase relay has a IP20 built-in heat sink and a built-in transient overvoltage protection. It is controlled with a 4Vdc to 32Vdc input, has a rated load voltage of 48Vac to 600Vac. It also has a LED input voltage status indicator and clip-in legend for easy identification. It weighs 0.301Kg and its dimensions are, 22.5mm wide, 133.8mm deep, 91.9mm high. It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications. This relay conforms to international standards like EN/IEC 60068, IEC 61373, UL 508, CSA C22.2 No 14-13 and certifications like UL and CSA. Besides the existing standard screw connection for input and output, SSD provides more wiring options like the spring or screw pluggable input connectors, and telescopic or clamp cage output terminals.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Maximum I T For Fusing : 8320 A².s for 10 ms, 7593 A².s for 8.33 ms
• Maximum Voltage Drop : <1.15 V on-state, <1.15 V on-state<1.15 V on-state, <1.15 V on-state
• Uc Control Circuit Voltage : 4...32 V DC, 4...32 V
• Uimp Rated Impulse Withstand Voltage : 6 kV for input/output circuit, 6 kV for input or output to case
• Absolute Maximum Voltage : 1200 V
• Line Rated Current : 35 A
• Maximum Leakage Current : 1 mA off-state
• Maximum Switching Voltage : 1 V DC turn-off
• Minimum Switching Voltage : 4 V DC turn-on
• Rated Current : 35 A
• Rated Duty : uninterrupted
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Control Type : without test button
• Coordination Type : type 1, type 2
• Dielectric Strength : 4 kV AC for input/output circuit, 4 kV AC for input or output to case
• Electromagnetic Compatibility : electrostatic discharge 6 kV criteria A contact discharge conforming to IEC 61000-4-2, electrostatic discharge 8 kV criteria A air discharge conforming to IEC 61000-4-2, conducted RF disturbances 10 V, 0.15...80 MHz criteria A level 3 conforming to IEC 61000-4-6, electrical fast transient/burst immunity test 2 kV, 5/100 kHz criteria B output ports conforming to IEC 61000-4-4, electrical fast transient/burst immunity test 1 kV, 5/100 kHz criteria B input ports conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test 10 V/m, 80 MHz...1 GHz criteria A conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test 3 V/m, 1.4...2 GHz criteria A conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test 1 V/m, 2...2.7 GHz criteria A conforming to IEC 61000-4-3, surge immunity test 1 kV criteria A output ports line to line conforming to IEC 61000-4-5, surge immunity test 2 kV criteria B output ports line to earth conforming to IEC 61000-4-5, radiated emission environment B for DC input supply conforming to IEC 60947-4-3, conducted emission environment B for DC input supply conforming to IEC 60947-4-3, immunity to microbreaks and voltage drops 30 %, 500 ms criteria A conforming to IEC 61000-4-11, immunity to microbreaks and voltage drops 100 %, 20 ms criteria B conforming to IEC 61000-4-11
• Inrush Current : 1350 A at 60 Hz
• Motor Power Kw : 1.5 kW/2 hp at 120 V AC, 3.73 kW/5 hp at 240 V AC, 7.46 kW/10 hp at 480 V AC
• Mounting Support : 35 mm symmetrical DIN rail conforming to IEC 60715
• Number Of Channels : 1
• Product Or Component Type : modular DIN rail relay
• Response Time : 0.5 cycle (turn-on), 0.5 cycle (turn-off)
• Shock Resistance : 50 gn for 11 ms (peak acceleration) , longitudinal position conforming to IEC 60068-2-27, 30 gn for 11 ms (peak acceleration) , vertical position conforming to IEC 60068-2-27
• Tightening Torque : 0.5 N.m for control input, 5 lb.in for control input, 2...2.2 N.m for load output, 18...20 lb.in for load output
• Connections Terminals : plug-inscrew terminals, clamping connection capacity:0.08...3.30 mm², AWG 28...AWG 12 for input, telescopic screw, clamping connection capacity:0.75...10 mm², AWG 20...AWG 8 for output, screw connectors
• Carbon Footprint Of The Distribution Phase A4 : 0.0419323585, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0445489151
• Carbon Footprint Of The Installation Phase A5 : 0.0016710519, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 4 kg CO2 eq., 3.8616745283
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 409 kg CO2 eq., 408.675776
• Control Circuit Voltage : 4...32 V
• Certificate Agency : IEC 61373:class B: category 1, IEC 60947-4-3, IEC 62314, IEC 60950-1, CSA C22.2 No 14-13, UL 508
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• Weee Scope : Out
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1930
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 5
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Contact Form : Form 5 semiconductor output DOL contactor
• Device Short Name : SSD1
• Dv Dt : 500 V/µs off-state at maximum rated voltage
• Flame Retardance : V-0 conforming to UL 94
• Insulation Resistance : 1000 MOhm at 500 V DC
• Load Current : 0.2-35 A
• Local Signalling : LED (green) for control voltage
• Network Frequency : 47...440 Hz
• Overvoltage Category : III
• Phase : 1 phase
• Power Factor : 0.5 with maximum load
• Product Availability : Stock - Normally stocked in distribution facility
• Product Configuration Type : contactor configuration with pluggable screw input
• Range Of Product : Harmony Solid State Relays
• Returnability : Yes
• Software Version : EIME v5.8.1
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 413 kg CO2 eq.
• Vibration Resistance : 0.75 mm (f = 10-150 Hz) conforming to IEC 60068-2-6
• Warranty In Months : 18
• X Product Configuration Type : contactor configuration with pluggable screw input
• Pep Code : ENVPEP1508007_V3
• Database Version : 2016-11
• Pep Verification Date : 2019-12-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional-unit Description : To switch ON/OFF electronic contact during 10 years at a 50% use rate.
• Functional-unit Quantity : 1
• Functional-unit Unit : unité (unit)
• Reference Lifetime, In Y : 10
• Energy Consumption On Product Lifetime, In Kwh : 834.1272
• Energy Model - Manufacturing [A1-a3] : Energy model used: Mexico
• Energy Model - Installation [A5] : Electricity mix; AC; < 1kV; EU-27
• Energy Model - Use [B6] : Electricity mix; AC; < 1kV; EU-27
• Energy Model - End Of Life [C1-c4] : Electricity mix; AC; < 1kV; EU-27
• Offer Owner Code : 190786
• Pn : 1
• Height Nominal : 94.6 mm
• Width Nominal : 22.5 mm
• Air Pollution (M3) Operational Energy Use [B6] : 17589.4616
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] : 4638.6952
• Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] : 1523.7316
• Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] : 7124.1488
• Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] : 8162.2584
• Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] : 1037.898
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] : 7124.1488
• Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] : 1037.898
• Water Pollution (M3) Operational Energy Use [B6] : 16863.6736
• Environment Attributes Main
• Ambient Air Temperature For Operation : -40-80 °C, -40-80 °C
• Ambient Air Temperature For Storage : -40-100 °C, -40-100 °C
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 412.6256028538
• Environmental Disclosure : ENVPEP1508007_V3
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP20
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1508007_V3
• Pep Verification Date : 2019-12-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : modular DIN rail relay
• Phase : 1 phase
• Range Of Product : Harmony Solid State Relays
• ETIM
• ETIM 8 : EC002055
• ETIM 9 : EC002055
• Output Attributes
• Output Switching Mode : zero voltage switching
• Output Voltage : 48...600 V AC
• Solid State Output Type : zero voltage switching
• Input Attributes
• Input Current Limits : 10-15 mA
• Specifications
• Country of Origin : United States
• Depth : 134.7 mm
• Overview Attributes
• Device Presentation : complete product
