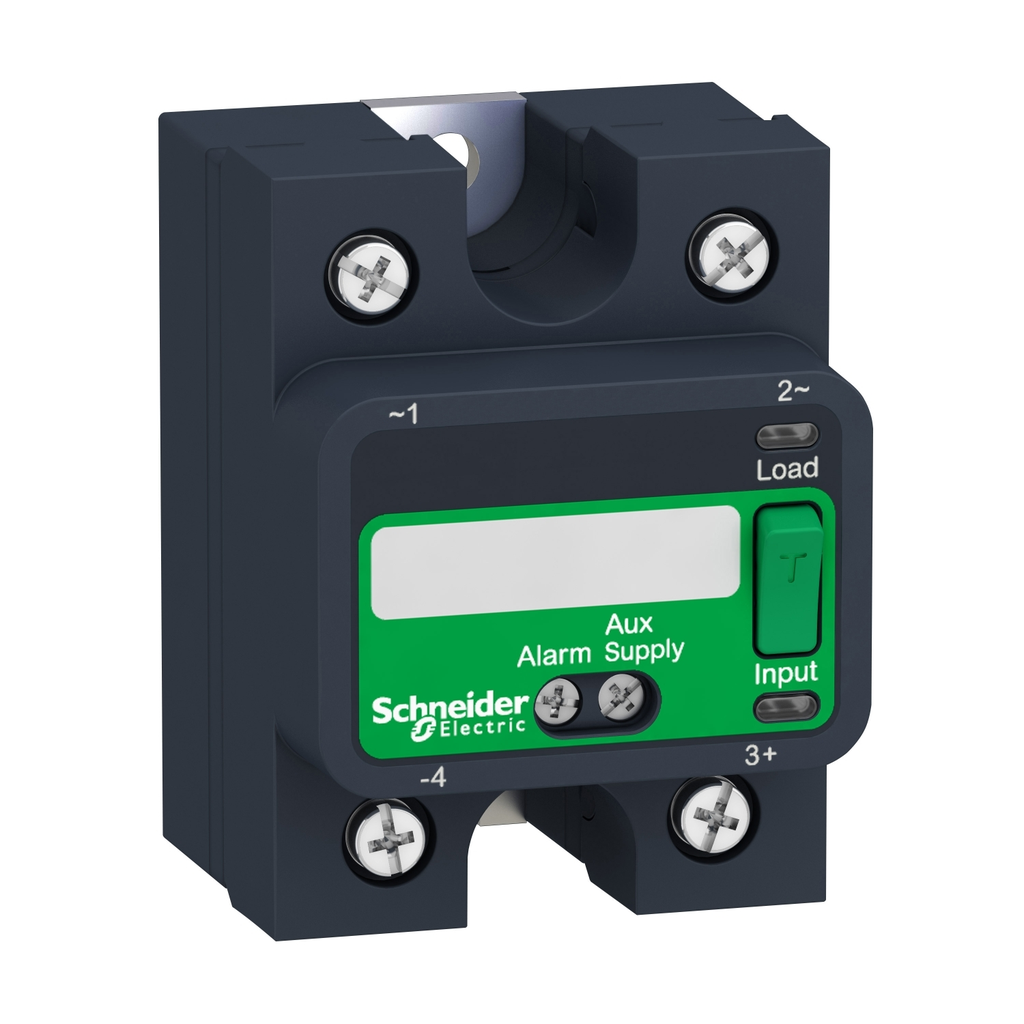

Harmony, Solid state relay, 25 A, panel mount, zero voltage switching, thermal pad and smart diagnostic, input 3...32 V DC, output 24…300 V AC

HARMONY, SOLID STATE RELAY, 25

SQDSSP1A125BDS SSP1A125BDS 3606485442228
132.59 / EA
http://schema.org/OutOfStock
Mayer-DDS-Harmony, Solid state relay, 25 A, panel mount, zero voltage switching, thermal pad and smart diagnostic, input 3...32 V DC, output 24…300 V AC-1
  • Dielectric Strength: 4 kV
  • Output Voltage: 24-300 V
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : EAC, CSA, UL, CE
    • Standards : UL 508, IEC 62314, CSA C22.2 No 14-13, IEC 60950-1
  • Complementary Attributes
    • Maximum Horse Power Rating : 0.5 hp 120 V AC, 1 hp 240 V AC
    • Maximum I T For Fusing : 259 A².s for 8.33 ms at 60 Hz, 258 A².s for 10 ms at 50 Hz
    • Maximum Voltage Drop : <1.15 V on-state, <1.15 V on-state, <1.15 V on-state, <1.15 V on-state
    • Uc Control Circuit Voltage : 4...32 V DC, 4...32 V
    • Uimp Rated Impulse Withstand Voltage : 6 kV output to case, 6 kV input to output
    • Absolute Maximum Voltage : 600 V
    • Line Rated Current : 25 A
    • Maximum Leakage Current : 1 mA off-state
    • Maximum Output Current : 30 mA 32 V DC
    • Maximum Switching Voltage : 1 V DC turn-off
    • Minimum Load : 150 mA
    • Minimum Switching Voltage : 4 V DC turn-on
    • Rated Current : 25 A
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Dielectric Strength : 4 kV AC for input/output, 4 kV AC for input or output to case
    • Electromagnetic Compatibility : electrostatic discharge 6 kV criteria A contact discharge conforming to IEC 61000-4-2, electrostatic discharge 8 kV criteria A air discharge conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test criteria A output ports conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test criteria B alarm port conforming to IEC 61000-4-3, electrical fast transient/burst immunity test 1 kV, 5/100 kHz criteria B output ports conforming to IEC 61000-4-4, surge immunity test 1 kV criteria A output ports line to line conforming to IEC 61000-4-5, surge immunity test 2 kV criteria A output ports line to earth conforming to IEC 61000-4-5
    • Local Signalling : LED, steady, green ON status control input/test button actuated, LED, steady, amber ON status load, LED, flashing, amber control input to energise load, LED, steady, red open-circuit control input, LED, flashing, red load cut-off/short-circuit
    • Marking : EAC, UL, CSA, CE
    • Protection Device Type : type 1 - 25 A miniature circuit breaker (MCB) B, type 2 - 20 A miniature circuit breaker (MCB) B
    • Response Time : 0.5 cycle (turn-on), 0.5 cycle (turn-off)
    • Safety Reliability Data : B10d = 1731395, MTTFd = 1875.9 years
    • Tightening Torque : 1.5...1.7 N.m for input, 2...2.2 N.m for output, 17.7...19.47 lb.in for output, 13.27...15.04 lb.in for input, 0.5...0.6 N.m for auxillary terminal, 4.4...5.3 lb.in for auxillary terminal
    • Connections Terminals : ring lugs 11.7 x 4.5 mm output, screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input, screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output, screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input, screw terminals 0.5...8.26 mm², AWG 20...AWG 8) without cable end output, forked type tag connectors 9.2 x 4 mm input, ring lugs 9.2 x 4 mm input, forked type tag connectors 11.7 x 4.5 mm output, screw connectors
    • Carbon Footprint Of The Distribution Phase A4 : 0.0140632474, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0258049072
    • Carbon Footprint Of The Installation Phase A5 : 0.0006112315, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 1 kg CO2 eq., 1.2097876289
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 2 616 kg CO2 eq., 2616.0366198089
    • Medium Desc : Harmony, Solid state relay, 25 A, panel mount, zero voltage switching, thermal pad and smart diagnostic, input 3...32 V DC, output 24…300 V AC
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : Commercialised
    • Return Indicator : Y
    • Stocking Flag : N
    • Legacy Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1505006EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Auxiliary Connection Terminal : screw-type connector, 0.5...1.5 mm² AWG 20...AWG 16)slotted Philips
    • Control Type : with test button
    • Cos Phi : 0.5-0.5 (with maximum load)
    • Device Short Name : SSP1
    • Dv Dt : 500 V/µs off-state at maximum voltage
    • Insulation Resistance : 1000 MOhm at 500 V DC
    • Load Current : 0.15-25 A
    • Mounting Support : panel
    • Overvoltage Category : III
    • Phase : 1 phase
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : panel mount relay
    • Provided Equipment : thermal pad
    • Range Of Product : Harmony Solid State Relays
    • Returnability : Yes
    • Software Version : EIME v5.8.1
    • Sustainable Packaging : Yes
    • Thermal Resistance : 0.8 °C/W junction to case
    • Total Lifecycle Carbon Footprint : 2 617 kg CO2 eq.
    • Control Circuit Voltage : 4...32 V
    • Pep Code : ENVPEP1505006EN
    • Database Version : 2016-11
    • Pep Verification Date : 2019-05-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Psr Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : To switch ON/OFF electronic contact during 10 years at a 50% use rate.
    • Functional Unit Unit : unité (unit)
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Mexico
    • Energy Model Installation A5 2 : Electricity Mix; AC; < 1kV; EU-27
    • Energy Model Use B6 2 : Electricity Mix; AC; < 1kV; EU-27
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; AC; < 1kV; EU-27
  • Environment Attributes Main
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 2617.286886824
    • Ambient Air Temperature For Operation : -40-80 °C
    • Ambient Air Temperature For Storage : -40-125 °C
    • Circularity Profile : ENVEOLI1505006EN
    • Environmental Disclosure : ENVPEP1505006EN
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1505006EN
    • Pep Verification Date : 2019-05-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Psr Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Phase : 1 phase
    • Product Or Component Type : panel mount relay
    • Provided Equipment : thermal pad
    • Range Of Product : Harmony Solid State Relays
  • ETIM
    • ETIM 8 : EC002055
    • ETIM 9 : EC002055
  • Output Attributes
    • Solid State Output Type : SCR output, zero voltage switching
    • Maximum Output Current : 30 mA 32 V DC
    • Output Switching Mode : zero voltage switching
    • Output Voltage : 24...300 V AC
  • Surge Protection And Filtering Attributes
    • Surge Current : 250 A 16.6 ms
  • Input Attributes
    • Cos Phi : 0.5-0.5 (with maximum load)
    • Input Current Limits : 10-10 mA at 12 V DC
  • Overview Attributes
    • Device Presentation : complete product
