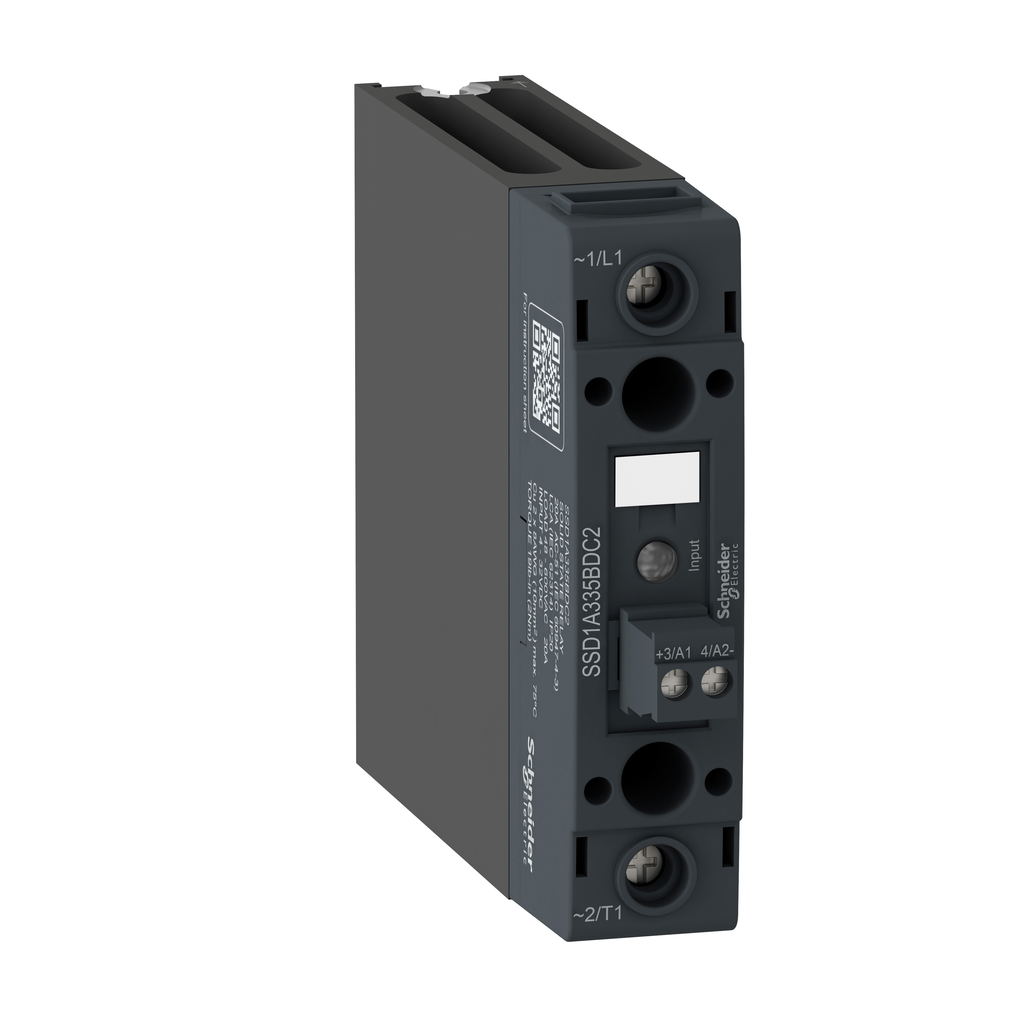

Harmony, Solid state relay, 20 A, DIN rail mount, random switching, input 90…280 V AC/DC, output 48...600 V AC

HARMONY, SOLID STATE RELAY, 20

SQDSSD1A320M7RC2 SSD1A320M7RC2 SQDSSD1A320M7RC2
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Harmony, Solid state relay, 20 A, DIN rail mount, random switching, input 90…280 V AC/DC, output 48...600 V AC-2
  • Depth: 133.8 mm
  • Height: 91.9 mm
  • Line Rated Current: 20 A
  • Net Weight: 0.301 kg
  • Number of Channels: 1
  • Number of Phases: 1
  • Output Voltage: 48-600 V
  • Standard: CSA C22.2 No 14-13, IEC 60947-4-3, IEC 60950-1, IEC 61373:class B: Category 1, IEC 62314, UL 508
  • Storage Temperature: -40-100 °C
  • Width: 22.5 mm
This solid state DIN rail mounted relay belongs to the Schneider Electric Harmony solid state relays range. This electrical relay mounts on 35mm DIN rail and comes with a secure mounting latch. This is a 20A power rated relay with pluggable screw input contactor type configuration and random switching. This single-phase relay has a IP20 built-in heat sink and a built-in transient overvoltage protection. It is controlled with a 90Vdc/Vac to 280Vdc/Vac input, has a rated load voltage of 48Vac to 600Vac. It also has a LED input voltage status indicator and clip-in legend for easy identification. It weighs 0.301Kg and its dimensions are, 22.5mm wide, 133.8mm deep, 91.9mm high. It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications. This relay conforms to international standards like EN/IEC 60068, IEC 61373, UL 508, CSA C22.2 No 14-13 and certifications like UL and CSA. Besides the existing standard screw connection for input and output, SSD provides more wiring options like the spring or screw pluggable input connectors, and telescopic or clamp cage output terminals.
QTY
  • Product Description
  • Specifications
This solid state DIN rail mounted relay belongs to the Schneider Electric Harmony solid state relays range. This electrical relay mounts on 35mm DIN rail and comes with a secure mounting latch. This is a 20A power rated relay with pluggable screw input contactor type configuration and random switching. This single-phase relay has a IP20 built-in heat sink and a built-in transient overvoltage protection. It is controlled with a 90Vdc/Vac to 280Vdc/Vac input, has a rated load voltage of 48Vac to 600Vac. It also has a LED input voltage status indicator and clip-in legend for easy identification. It weighs 0.301Kg and its dimensions are, 22.5mm wide, 133.8mm deep, 91.9mm high. It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications. This relay conforms to international standards like EN/IEC 60068, IEC 61373, UL 508, CSA C22.2 No 14-13 and certifications like UL and CSA. Besides the existing standard screw connection for input and output, SSD provides more wiring options like the spring or screw pluggable input connectors, and telescopic or clamp cage output terminals.
  • Complementary
    • Network Frequency : 47...440 Hz
    • Coordination Type : type 1 || type 2
    • [Uc] Control Circuit Voltage : 90...280 V AC/DC
    • Height : 91.9 mm
    • Connections - Terminals : plug-inscrew terminals, clamping connection capacity:0.08...3.30 mm², AWG 28...AWG 12 for input || telescopic screw, clamping connection capacity:0.75...10 mm², AWG 20...AWG 8 for output
    • Output Voltage : 48...600 V AC
    • Tightening Torque : 0.5 N.m for control input || 5 lb.in for control input || 2...2.2 N.m for load output || 18...20 lb.in for load output
    • Insulation Resistance : 1000 MOhm at 500 V DC
    • Maximum I²T For Fusing : 409 A².s for 10 ms || 375 A².s for 8.33 ms
    • Maximum Voltage Drop : <1.3 V on-state
    • Dielectric Strength : 4 kV AC for input/output circuit || 4 kV AC for input or output to case
    • Response Time : 20 ms (turn-on) || 30 ms (turn-off)
    • Load Current : 0.1-20 A
    • Motor Power Kw : 0.37 kW/0.5 hp at 120 V AC || 1.12 kW/1.5 hp at 240 V AC || 2.24 kW/3 hp at 480 V AC
    • [Uimp] Rated Impulse Withstand Voltage : 6 kV for input/output circuit || 6 kV for input or output to case
    • Net Weight : 0.301 kg
    • Minimum Switching Voltage : 90 V AC/DC turn-on
    • Maximum Leakage Current : 1 mA off-state
    • Device Presentation : complete product
    • Electromagnetic Compatibility : electrostatic discharge 6 kV criteria A contact discharge conforming to IEC 61000-4-2 || electrostatic discharge 8 kV criteria A air discharge conforming to IEC 61000-4-2 || conducted RF disturbances 10 V, 0.15...80 MHz criteria A level 3 conforming to IEC 61000-4-6 || electrical fast transient/burst immunity test 2 kV, 5/100 kHz criteria B output ports conforming to IEC 61000-4-4 || electrical fast transient/burst immunity test 1 kV, 5/100 kHz criteria B input ports conforming to IEC 61000-4-4 || radiated radio-frequency electromagnetic field immunity test 10 V/m, 80 MHz...1 GHz criteria A conforming to IEC 61000-4-3 || radiated radio-frequency electromagnetic field immunity test 3 V/m, 1.4...2 GHz criteria A conforming to IEC 61000-4-3 || radiated radio-frequency electromagnetic field immunity test 1 V/m, 2...2.7 GHz criteria A conforming to IEC 61000-4-3 || surge immunity test 1 kV criteria A output ports line to line conforming to IEC 61000-4-5 || surge immunity test 2 kV criteria A output ports line to earth conforming to IEC 61000-4-5 || surge immunity test 1 kV criteria A input ports line to line conforming to IEC 61000-4-5 || surge immunity test 2 kV criteria A input ports line to earth conforming to IEC 61000-4-5 || radiated emission environment B for AC input supply conforming to IEC 60947-4-3 || conducted emission environment A for AC input supply conforming to IEC 60947-4-3 || immunity to microbreaks and voltage drops 30 %, 500 ms criteria A conforming to IEC 61000-4-11 || immunity to microbreaks and voltage drops 100 %, 20 ms criteria B conforming to IEC 61000-4-11
    • Absolute Maximum Voltage : 1200 V
    • Dv/Dt : 500 V/µs off-state at maximum rated voltage
    • Local Signalling : for control voltage LED (green)
    • Maximum Switching Voltage : 5 V AC/DC turn-off
    • Solid State Output Type : random voltage switching
    • Contact Form : Form 5 semiconductor output DOL contactor
    • Width : 22.5 mm
    • Input Current Limits : 6-10 mA
    • Overvoltage Category : III
    • Inrush Current : 300 A at 60 Hz
    • Depth : 133.8 mm
    • Rated Duty : uninterrupted
    • Power Factor : 0.5 with maximum load
  • Environment
    • Ambient Air Temperature For Operation : -40-80 °C
    • Standards : IEC 61373:class B: category 1 || IEC 60947-4-3 || IEC 62314 || IEC 60950-1 || CSA C22.2 No 14-13 || UL 508
    • Pollution Degree : 2
    • Vibration Resistance : 0.75 mm (f = 10-150 Hz) conforming to IEC 60068-2-6
    • Shock Resistance : 50 gn for 11 ms (peak acceleration) , longitudinal position conforming to IEC 60068-2-27 || 30 gn for 11 ms (peak acceleration) , vertical position conforming to IEC 60068-2-27
    • Ip Degree Of Protection : IP20
    • Flame Retardance : V-0 conforming to UL 94
    • Ambient Air Temperature For Storage : -40-100 °C
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1508007EN
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1508007EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Specifications
    • Range Of Product : Harmony Solid State Relays
    • Output Switching Mode : random voltage switching
    • Product Or Component Type : solid state relay up to 20 A
    • Phase : 1 phase
    • Number Of Channels : 1
    • Mounting Support : 35 mm symmetrical DIN rail conforming to IEC 60715
    • Line Rated Current : 20 A
    • Product Configuration Type : contactor configuration with pluggable screw input
    • Device Short Name : SSD1
