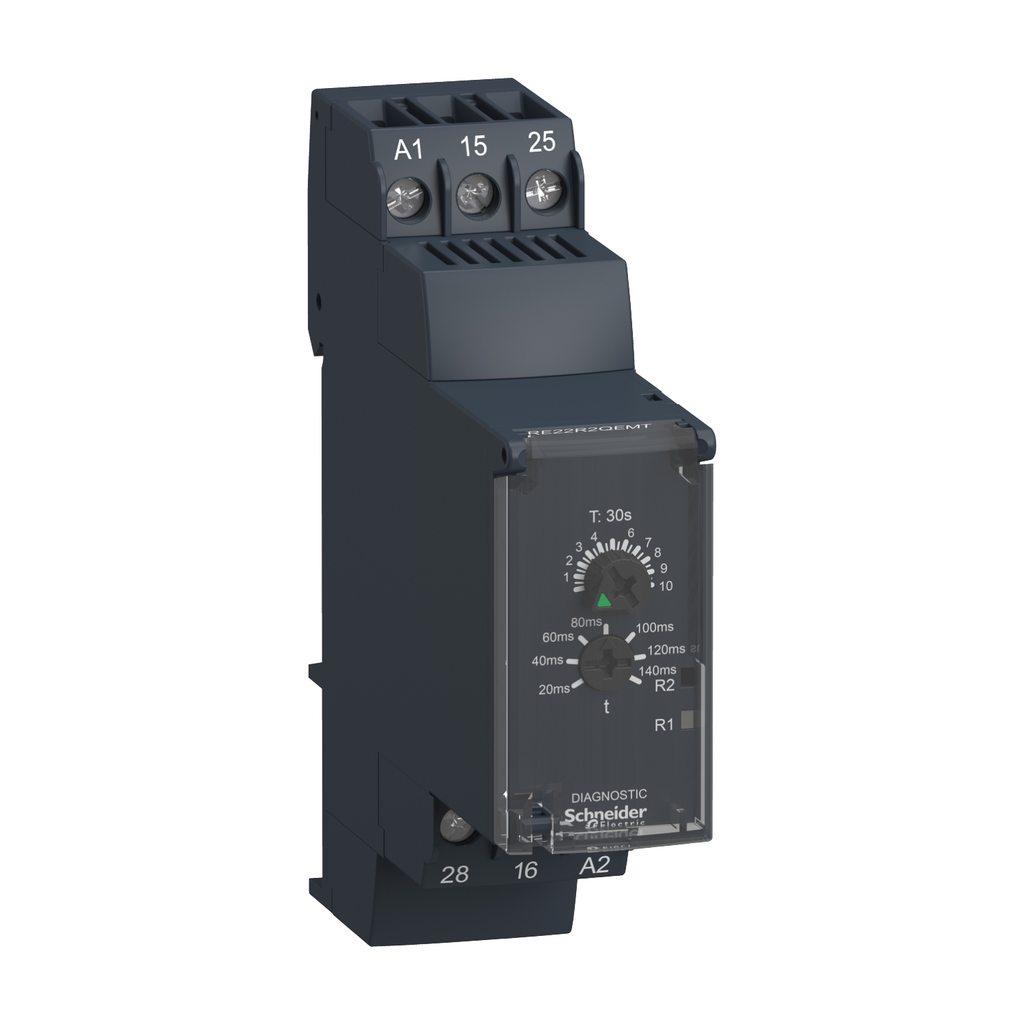

"This Harmony RE22 modular single function timer can be set between 0.3 and 30s." "It provides function Qe and it is mountable on DIN rail." "This modular single function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers." "It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device." "It also offers a sealable cover, simple and precise settings with rotary trimmers." "Selectable timing range offers a one stop solution for your power management system." "Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC." 0 0 0 0 0 0 0 0 0

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Contacts Type And Composition : 2 C/O timed contact, cadmium free, 2 C/O timed contact, cadmium free, 2 C/O timed contact, cadmium free
• Control Type : rotary knob, diagnostic button
• Creepage Distance : 4 kV/3 IEC 60664-1, 4 kV/3 IEC 60664-1
• Dielectric Strength : 2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1, 2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1, 2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1, 2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1, 2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1, 2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1
• Electrical Durability : 100000 cycles, 8 A at 250 V, AC-1, 100000 cycles, 8 A at 250 V, AC-1, 100000 cycles, 8 A at 250 V, AC-1, 100000 cycles, 8 A at 250 V, AC-1, 100000 cycles, 2 A at 24 V, DC-1, 100000 cycles, 2 A at 24 V, DC-1, 100000 cycles, 2 A at 24 V, DC-1, 100000 cycles, 2 A at 24 V, DC-1
• Electromagnetic Compatibility : fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4, fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4, fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4, fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4, fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3, conducted RF disturbances - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6, conducted RF disturbances - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6, conducted RF disturbances - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6, conducted RF disturbances - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6, conducted RF disturbances - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6, fast transient bursts - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4, fast transient bursts - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4, fast transient bursts - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4, fast transient bursts - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4, fast transient bursts - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4, immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11, immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11, immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11, immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11, immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11, immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11, immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11, immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11, surge immunity test - test level: 2 kV level 3 (differential mode) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV level 3 (differential mode) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV level 3 (differential mode) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV level 3 (differential mode) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV level 3 (differential mode) conforming to IEC 61000-4-5, surge immunity test - test level: 4 kV level 3 (common mode) conforming to IEC 61000-4-5, surge immunity test - test level: 4 kV level 3 (common mode) conforming to IEC 61000-4-5, surge immunity test - test level: 4 kV level 3 (common mode) conforming to IEC 61000-4-5, surge immunity test - test level: 4 kV level 3 (common mode) conforming to IEC 61000-4-5, surge immunity test - test level: 4 kV level 3 (common mode) conforming to IEC 61000-4-5
• Function Available : Qe-Star-delta relay (1 NC + 1 NO outputs with split common)-2 C/O, Qe-Star-delta relay (1 NC + 1 NO outputs with split common)-2 C/O
• Insulation Resistance : 100 MOhm 500 V DC IEC 60664-1, 100 MOhm 500 V DC IEC 60664-1, 100 MOhm 500 V DC IEC 60664-1, 100 MOhm 500 V DC IEC 60664-1
• Mounting Support : 35 mm DIN rail conforming to IEC 60715, 35 mm DIN rail conforming to IEC 60715
• Overvoltage Category : III conforming to IEC 60664-1, III conforming to IEC 60664-1
• Power Consumption In VA : 15-15 VA 380 V AC, 15-15 VA 380 V AC, 15-15 VA 380 V AC
• Repeat Accuracy : +/- 0.5 % IEC 61812-1, +/- 0.5 % IEC 61812-1
• Reset Time : 120 ms on de-energisation, 120 ms on de-energisation
• Setting Accuracy Of Time Delay : +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1
• Shock Resistance : 15 gn not operating 11 ms IEC 60068-2-27, 15 gn not operating 11 ms IEC 60068-2-27, 15 gn not operating 11 ms IEC 60068-2-27, 15 gn not operating 11 ms IEC 60068-2-27, 5 gn in operation 11 ms IEC 60068-2-27, 5 gn in operation 11 ms IEC 60068-2-27, 5 gn in operation 11 ms IEC 60068-2-27, 5 gn in operation 11 ms IEC 60068-2-27
• Status Led : Green LED backlight steady)dial pointer indication, Green LED backlight steady)dial pointer indication, Green LED backlight steady)dial pointer indication, Green LED backlight steady)dial pointer indication, Yellow LED steady)output relay energised, Yellow LED steady)output relay energised, Yellow LED steady)output relay energised, Yellow LED steady)output relay energised, Yellow LED fast flashing)timing in progress and output relay de-energised, Yellow LED fast flashing)timing in progress and output relay de-energised, Yellow LED fast flashing)timing in progress and output relay de-energised, Yellow LED fast flashing)timing in progress and output relay de-energised, Yellow LED slow flashing)timing in progress and output relay energised, Yellow LED slow flashing)timing in progress and output relay energised, Yellow LED slow flashing)timing in progress and output relay energised, Yellow LED slow flashing)timing in progress and output relay energised
• Supply Frequency : 50...60 Hz +/- 5 %, 50...60 Hz +/- 5 %
• Tightening Torque : 0.6-1 N.m IEC 60947-1, 0.6-1 N.m IEC 60947-1
• Time Delay Type : star-delta - Qe-Star-delta relay (1 NC + 1 NO outputs with split common), star-delta - Qe-Star-delta relay (1 NC + 1 NO outputs with split common)
• Vibration Resistance : 20 m/s² (f= 10-150 Hz) conforming to IEC 60068-2-6, 20 m/s² (f= 10-150 Hz) conforming to IEC 60068-2-6, 20 m/s² (f= 10-150 Hz) conforming to IEC 60068-2-6
• Carbon Footprint Of The Distribution Phase A4 : 0.0129020913, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.0602937262
• Carbon Footprint Of The Installation Phase A5 : 0.0005595627, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 2 kg CO2 eq., 1.9147338403
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 52 kg CO2 eq., 51.5032
• Connections Terminals : screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end, screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end, screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end, screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end, screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-25
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2502020EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Device Short Name : RE22
• Functionality : star-delta starter timing
• Housing Material : polycarbonate
• Mounting Position : any position
• Package Weight Lbs : 100.0 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : modular timing relay
• Range Of Product : Harmony Timer Relays
• Returnability : Yes
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 53 kg CO2 eq.
• Pep Code : ENVPEP2502020EN
• Pep Verification Date : 2018-04-01
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : To control an event based on time. The contacts switch ON or OFF before or after some period of time to control automation industrial system. during 10 years with a 100% use rate, in compliance with French standard.
• Functional Unit Unit : unité (unit)
• Product Kit Identifier : N
• Environment Attributes Main
• Directives : 2006/95/EC - low voltage directive, 2004/108/EC - electromagnetic compatibility
• EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP40 housing: conforming to IEC 60529, IP40 housing: conforming to IEC 60529, IP40 housing: conforming to IEC 60529, IP20 terminals: conforming to IEC 60529, IP20 terminals: conforming to IEC 60529, IP20 terminals: conforming to IEC 60529, IP50 front panel: conforming to IEC 60529, IP50 front panel: conforming to IEC 60529, IP50 front panel: conforming to IEC 60529
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 95-95 % 25-55 °C, 95-95 % 25-55 °C
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 53.4916892205
• Circularity Profile : ENVEOLI2502020EN
• Environmental Disclosure : ENVPEP2502020EN
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Pep Code : ENVPEP2502020EN
• Pep Verification Date : 2018-04-01
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : modular timing relay
• Range Of Product : Harmony Timer Relays
• Complementary Attributes
• Maximum Switching Voltage : 250 V AC, 250 V AC
• Minimum Switching Current : 10 mA 5 V DC, 10 mA 5 V DC, 10 mA 5 V DC
• UIMP Rated Impulse Withstand Voltage : 5 kV 1.2-50 µs IEC 60664-1, 5 kV 1.2-50 µs IEC 60664-1, 5 kV 1.2-50 µs IEC 60664-1
• US Rated Supply Voltage : 380...415 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 380...415 V AC 50/60 Hz
• Maximum Delay Response : 100 ms
