SQUARE D

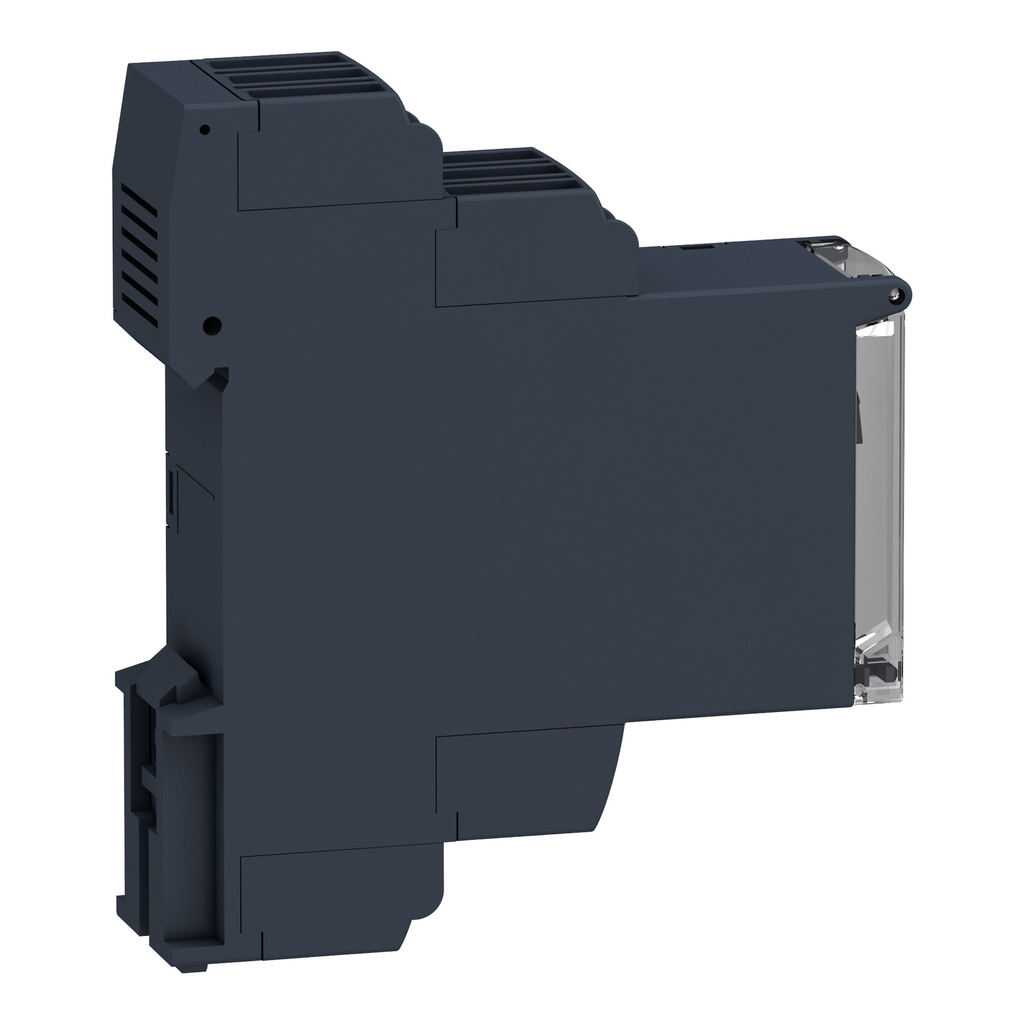

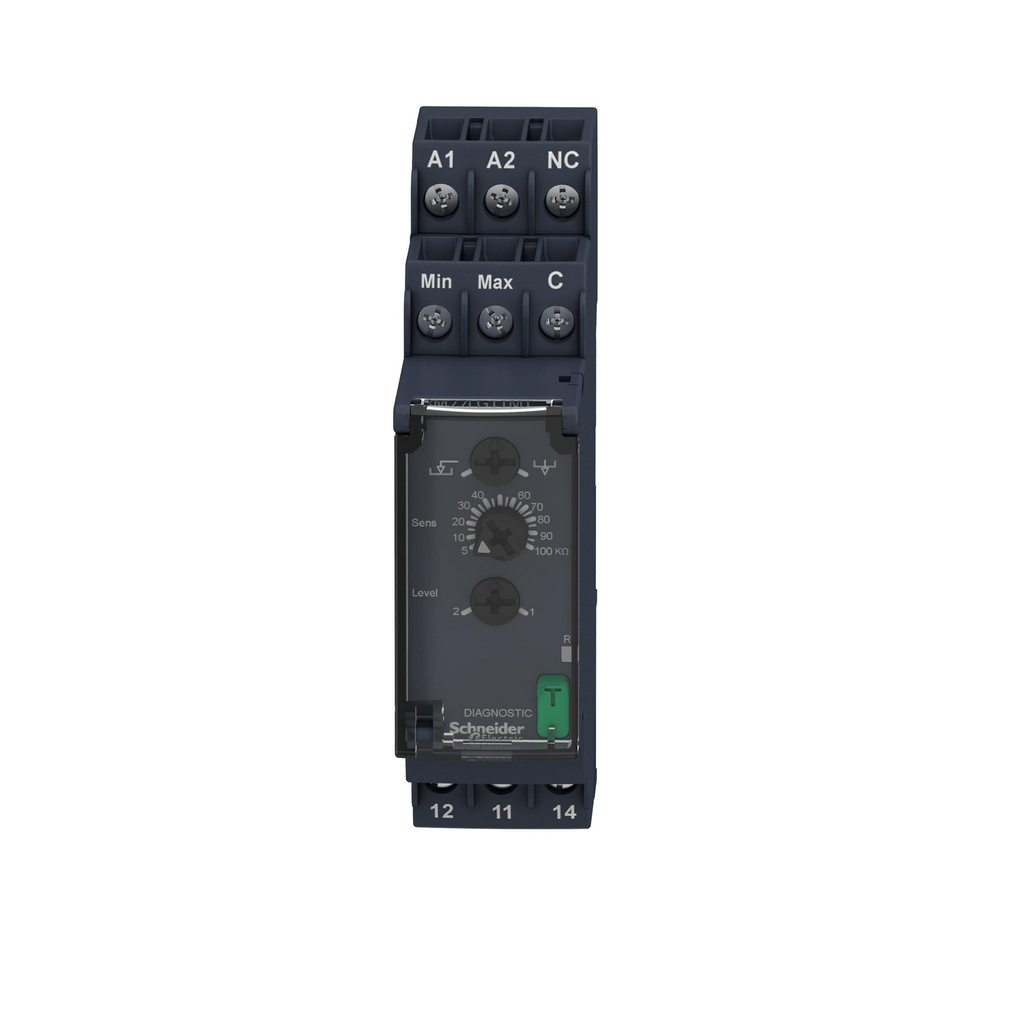

level control relay, Harmony Control Relays, 8A, 1CO, 380…415V AC DC

level control relay, Harmony Control Relays, 8A, 1CO, 380…415V AC DC

SQDRM22LG11MT 3606480792335
77.10 / EA
http://schema.org/OutOfStock
  • Certifications: CCC, CE, CSA, EAC, GL, RCM, UL
  • Housing Material: Plastic
  • Net Weight: 0.1 kg
  • Standard: IEC 60255-1
  • Storage Temperature: -40-70 °C
  • Width: 22.5 mm
This Harmony RM22-LG relay allows monitoring of liquid level control in 3-phase networks." "This modular multi function 3-phase liquid level control relay is ideal for monitoring of electrical values in industrial and building control panels." "It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water." "It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device." "It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers." "It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting." "multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC." 0 0 0 0 0 0 0 0 0
QTY
  • Product Description
  • Specifications
This Harmony RM22-LG relay allows monitoring of liquid level control in 3-phase networks." "This modular multi function 3-phase liquid level control relay is ideal for monitoring of electrical values in industrial and building control panels." "It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water." "It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device." "It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers." "It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting." "multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC." 0 0 0 0 0 0 0 0 0
  • Complementary
    • Safety Reliability Data : MTTFd = 125.5 years || B10d = 120000
    • Maximum Electrode Voltage : 12 V AC
    • Cable Capacitance : 1 nF HS (High Sensitivity) probe cable || 2.2 nF St (Standard Sensitivity) probe cable || 4.7 nF LS (Low Sensitivity) probe cable
    • Measurement Error : < 1 % over the whole range with voltage variation || 0.05 %/°C with temperature variation
    • [Us] Rated Supply Voltage : AC non self-powered
    • Maximum Cable Distance Between Devices : 1000 m probe and delay
    • Output Contacts : 2 C/O
    • Contacts Material : cadmium free
    • Sensitivity Scale : 5...100 kOhm St (Standard Sensitivity)
    • Net Weight : 0.1 kg
    • Maximum Switching Voltage : 250 V AC
    • Control Type : with test button
    • Maximum Electrode Current : 1 mA
    • Connections - Terminals : screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end || screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
    • Overvoltage Category : III IEC 60664-1
    • Insulation : between supply and measurement
    • Supply Voltage Limits : 323-456.5 V AC
    • Mounting Support : 35 mm DIN rail conforming to IEC 60715
    • Nominal Output Current : 8 A
    • Mechanical Durability : 10000000 cycles
    • Maximum Supply Current For Sensors : 1 mA
    • Housing Material : self-extinguishing plastic
    • Mounting Position : any position
    • Width : 22.5 mm
    • Tightening Torque : 0.6-1 N.m IEC 60947-1
    • Sensitivity Adjustment : 5-100 %
    • Electrical Durability : 100000 cycles
    • Run-Up Delay At Power-Up : 0.6 s
    • Repeat Accuracy : +/- 2 % time delay
  • Specifications
    • Minimum Switching Current : 10 mA 5 V DC
    • Maximum Switching Current : 8 A AC
    • Range Of Product : Harmony Control Relays
    • Switching Capacity In Va : 2000 VA
    • Product Or Component Type : level control relay
    • Utilisation Category : AC-15 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || AC-1 IEC 60947-4-1 || DC-1 IEC 60947-4-1
    • Relay Name : RM22L
    • Contacts Type And Composition : 1 C/O
    • Relay Type : level control relay
    • Time Delay Type : without
    • Relay Monitored Parameters : detection by resistive probes
  • Environment
    • Product Certifications : CSA || GL || RCM || UL || EAC || CE || CCC
    • Standards : IEC 60255-1
    • Dielectric Test Voltage : 2.5 kV AC 50 Hz, 1 min IEC 60255-27
    • Electromagnetic Compatibility : immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1 || immunity for industrial environments conforming to IEC 61000-6-2 || emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 || emission standard for industrial environments conforming to IEC 61000-6-4 || electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3 || electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4 || electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4 || surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5 || surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5 || conducted and radiated emissions class B group 1 conforming to CISPR 11 || conducted and radiated emissions class B conforming to CISPR 22
    • Immunity To Microbreaks : 100 ms DC || 90 ms AC
    • Shock Resistance : 15 gn 11 ms) not in operation IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
    • Vibration Resistance : 0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6 || 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6 || 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6 || 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6
    • Ip Degree Of Protection : IP20 IEC 60529 terminals) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)
    • Pollution Degree : 3 IEC 60664-1
    • Ambient Air Temperature For Storage : -40-70 °C
    • Relative Humidity : 93-97 % 25-55 °C IEC 60068-2-30
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1504008EN
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1504008EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
