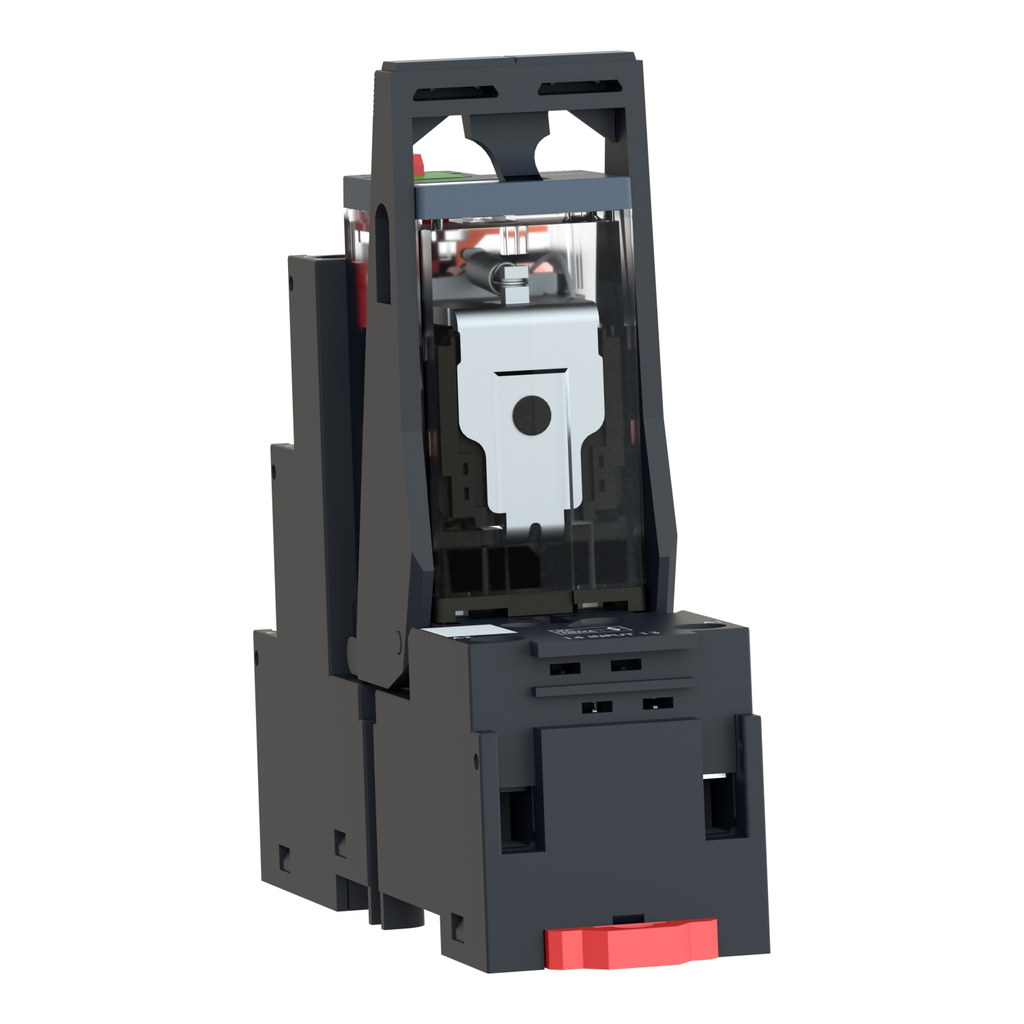

Harmony, Miniature plug-in relay pre-assembled, 6 A, 4 CO, with LED, with lockable test button, separate terminals socket, 24 V AC

HARMONY, MINIATURE PLUG-IN REL

SQDRXM4AB2B7PVS SQDRXM4AB2B7PVS
0.00 / EA
http://schema.org/OutOfStock
  • Certifications: CE, CSA, EAC, Lloyd's, UL
  • Contact Material: Silver Alloy
  • IsSustainable: No
  • Net Weight: 0.105 kg
  • Operating Cycles: 1200, 18000
  • Standard: CSA C22.2 No 14, EN/IEC 61810-1, IEC 61984, UL 508
  • Storage Temperature: -40-85 °C
  • Warranty Length: 18 mth
This miniature Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled relay mounted on a separate contact terminal socket with integrated clamp and legend. This is a 6A, 24Vac, 4 CO miniature mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. It also offers one-step lockable test button and LED indicator. The miniature relay socket connection is by screw connector type. This pre-assembled relay weighs 0.113Kg. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, UL, EAC, CSA, Lloyd's, RoHS and REACH. It is sold in lots of 30. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A) or 4 CO (6A) contacts.
QTY
  • Product Description
  • Specifications
This miniature Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled relay mounted on a separate contact terminal socket with integrated clamp and legend. This is a 6A, 24Vac, 4 CO miniature mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. It also offers one-step lockable test button and LED indicator. The miniature relay socket connection is by screw connector type. This pre-assembled relay weighs 0.113Kg. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, UL, EAC, CSA, Lloyd's, RoHS and REACH. It is sold in lots of 30. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A) or 4 CO (6A) contacts.
  • Environment
    • Ambient Air Temperature For Operation : -40-55 °C
    • Ip Degree Of Protection : IP20 conforming to EN/IEC 60529
    • Dielectric Strength : 1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with basic insulation || 2000 V AC between poles with basic insulation
    • Ambient Air Temperature For Storage : -40-85 °C
    • Vibration Resistance : 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
    • Product Certifications : CE || UL || CSA || EAC || Lloyd's
    • Pollution Degree : 2
    • Shock Resistance : 10 gnin operation || 30 gnnot operating
    • Standards : UL 508 || EN/IEC 61810-1 || CSA C22.2 No 14 || IEC 61984
  • Contractual warranty
    • Warranty : 18 Months
  • Offer Sustainability
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Rohs Exemption Information : Yes
    • China Rohs Regulation : X
    • Reach Free Of Svhc : Yes
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Environmental Disclosure : ENVPEP1511008EN
    • Mercury Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Protection Category : RT I
    • [Ui] Rated Insulation Voltage : 250 V IEC
    • Cad Overall Width : 26.9 mm
    • Operating Rate : <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
    • [Ie] Rated Operational Current : 3 A 28 V DC) NC IEC || 3 A 250 V AC) NC IEC || 6 A 28 V DC) NO IEC || 6 A 250 V AC) NO IEC || 6 A 277 V AC) UL || 8 A 30 V DC) UL
    • Contacts Material : AgNi
    • Mechanical Durability : 10000000 cycles
    • Connections - Terminals : connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end || connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end || connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end || connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
    • Maximum Switching Voltage : 250 V
    • Safety Reliability Data : B10d = 100000
    • Minimum Switching Capacity : 170 mW 10 mA, 17 V
    • Reset Time : 20 ms
    • Continuous Output Current : 5 A
    • Minimum Switching Current : 10 mA
    • Drop-Out Voltage Threshold : >= 0.3 Uc AC
    • Average Coil Consumption : 1.2 W, AC
    • Rated Operational Voltage Limits : 19.2...26.4 V AC
    • Sale Per Indivisible Quantity : 30
    • Net Weight : 0.105 kg
    • Electrical Durability : 100000 cycles resistive
    • [Uimp] Rated Impulse Withstand Voltage : 2.5 kV 1.2/50 µs
    • Cad Overall Height : 82.8 mm
    • Minimum Switching Voltage : 17 V
    • Average Resistance : 180 Ohm 20 °C +/- 10 %
    • Operating Time : 20 ms
    • Torque Value : 1 N.m
    • Device Presentation : complete product
    • Operating Position : any position
    • Cad Overall Depth : 80.35 mm
    • Maximum Switching Capacity : 1500 VA/168 W AC/DC
    • Test Levels : level A group mounting
    • Load Current : 6 A 250 V AC || 6 A 28 V DC
  • Specifications
    • Contacts Type And Composition : 4 C/O
    • Status Led : with
    • Product Or Component Type : pre-assembled plug-in relay with socket
    • Control Type : lockable test button
    • Device Short Name : RXM
    • Series Name : Miniature
    • Range Of Product : Harmony Electromechanical Relays
    • Utilisation Coefficient : 20 %
    • [Uc] Control Circuit Voltage : 24 V AC 50/60 Hz
