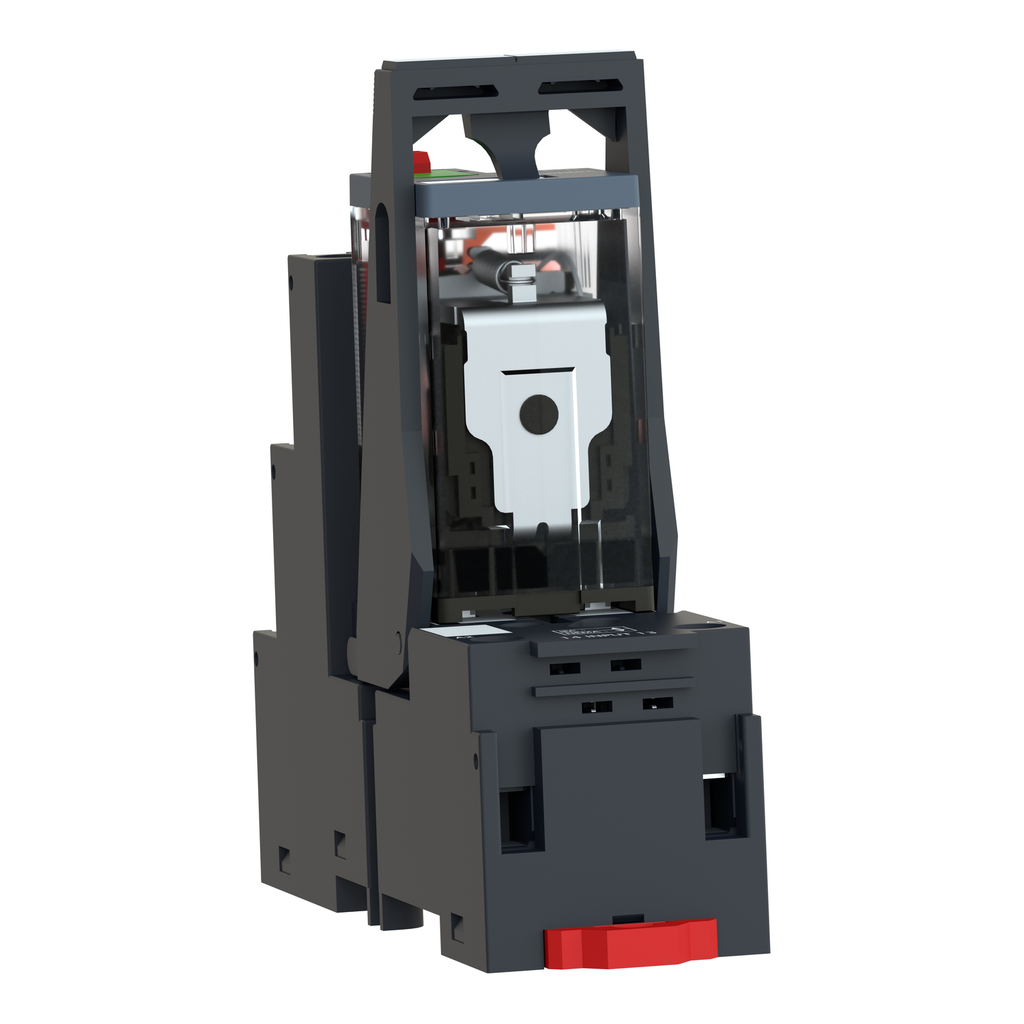

This miniature Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled relay mounted on a separate contact terminal socket with integrated clamp and legend. This is a 12A, 24Vac, 2 CO miniature mech

• Uc Control Circuit Voltage
• 24 V AC 50/60 Hz
• Connections Terminals
• connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end
• connector, 1 x 0.25...1 x 2.5
• Test Levels
• level A group mounting
• Uimp Rated Impulse Withstand Voltage
• 4 kV 1.2/50 µs
• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
• Load Current
• 12 A 250 V AC
• 12 A 28 V DC
• Standards
• UL 508
• IEC 61810-1
• CSA C22.2 No 14
• IEC 61984
• Ui Rated Insulation Voltage
• 250 V IEC
• Ip Degree Of Protection
• IP20 conforming to IEC 60529
• Electrical Durability
• 100000 cycles resistive
• Vibration Resistance
• 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation
• 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
• 5 gn +/- 1 mm 10-150 Hz
• Market Segmentation
• Commercial
• Industrial
• Rated Operational Voltage Limits
• 19.2...26.4 V AC
• Persona Type Names
• Charge Point Operator
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Electrician
• System Integrator
• IT Channel Partner
• Drop Out Voltage Threshold
• >= 0.3 Uc AC
• Persona Type Ids
• BM9
• EU
• LC
• OM
• OM8
• PB
• SC
• SI
• VR
• Dielectric Strength
• 1300 V AC between contacts with micro disconnection
• 2000 V AC between coil and contact with basic
• Average Resistance
• 180 Ohm 20 °C +/- 10 %
• Ie Rated Operational Current
• 6 A 28 V DC) NC IEC
• 6 A 250 V AC) NC IEC
• 12 A 28 V DC) NO IEC
• 12 A 28
• Minimum Switching Capacity
• 170 mW 10 mA, 17 V
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Operating Rate
• <= 1200 cycles/hour under load
• <= 18000 cycles/hour no-load
• Maximum Switching Capacity
• 3000 VA AC
• 336 W DC
• Shock Resistance
• 10 gnin operation
• 30 gnnot operating
• Average Coil Consumption
• 1.2 W, AC
• Product Certifications
• UL
• Lloyd's
• CE
• CSA
• GOST
• IECEE CB Scheme

• Physical Attributes
• Cad Overall Depth : 80.35 mm
• Cad Overall Height : 82.8 mm
• Cad Overall Width : 26.9 mm
• Complementary Attributes
• Control Circuit Type : AC
• Line Rated Current : 12:00 AM
• Maximum Switching Voltage : 250 V
• Minimum Switching Current : 10 mA
• Minimum Switching Voltage : 17 V
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2/26/2025
• Legacy WEEE Scope : Out
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2106019EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 1930
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Compatibility Code : RXM
• Contact Terminal Arrangement : separate
• Contacts Material : AgNi
• Contacts Type And Composition : 2 C/O
• Control Type : lockable test button
• Mechanical Durability : 10000000 cycles
• Operating Position : any position
• Operating Time : 20 ms
• Package Weight Lbs : 85.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : pre-assembled plug-in relay with socket
• Protection Category : RT I
• Range Of Product : Harmony Electromechanical Relays
• Relay Type : miniature relay
• Reset Time : 20 ms
• Returnability : Yes
• Safety Reliability Data : B10d = 100000
• Sale Per Indivisible Quantity : 30
• Series Name : RXM series
• Shape Of Pin : flat (faston type)
• Status Led : with
• Sustainable Packaging : Yes
• Torque Value : 1 N.m
• Utilisation Coefficient : 20%
• Ithe Conventional Enclosed Thermal Current : 12:00 AM
• Relationshiptype : Compatible relationship
• Accessories : RXZE2M114M
• General Attributes
• Product Or Component Type : pre-assembled plug-in relay with socket
• Range Of Product : Harmony Electromechanical Relays
• Output Attributes
• Continuous Output Current : 10:00 AM
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=467217026&lang=en-us
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Ambient Air Temperature For Operation : -40-55 °C
• Ambient Air Temperature For Storage : -40-85 °C
• Circularity Profile : ENVEOLI2106019EN
• Environmental Disclosure : ENVPEP2106019EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 Months
• Warranty : 18 Months
• Specifications
• Country of Origin : Indonesia
• Overview Attributes
• Device Presentation : complete product
