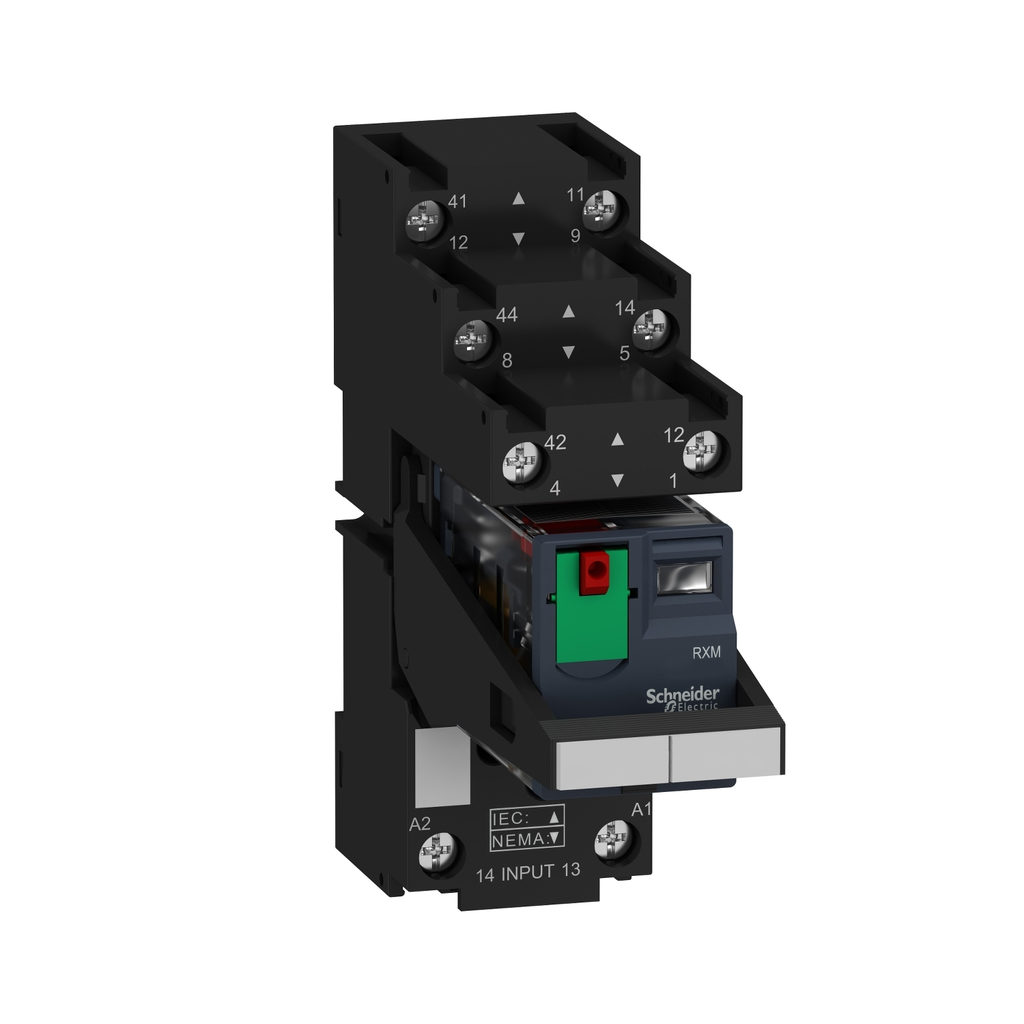

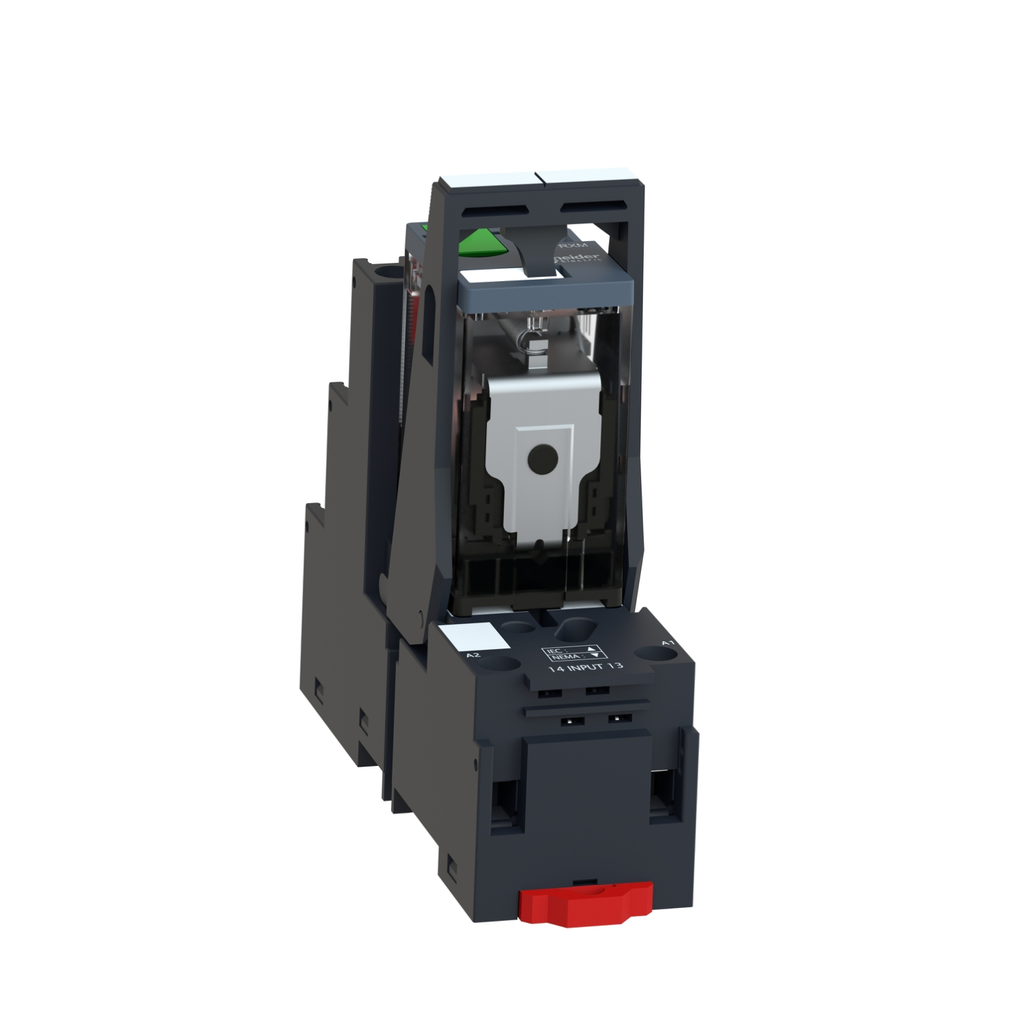

This miniature Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled relay mounted on a separate contact terminal socket with integrated clamp and legend. This is a 12A, 230Vac, 2 CO miniature mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. It also offers one-step lockable test button and LED indicator. The miniature relay socket connection is by screw connector type. This pre-assembled relay weighs 0.101Kg. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, UL, EAC, CSA, Lloyd's, RoHS and REACH. It is sold in lots of 30. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A) or 4 CO (6A) contacts.
- Environment
- Product Certifications : UL || Lloyd's || CE || CSA || GOST || IECEE CB Scheme
- Standards : UL 508 || IEC 61810-1 || CSA C22.2 No 14 || IEC 61984
- Pollution Degree : 2
- Ambient Air Temperature For Operation : -40-55 °C
- Dielectric Strength : 1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with basic insulation || 2000 V AC between poles with basic insulation
- Vibration Resistance : 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Shock Resistance : 10 gnin operation || 30 gnnot operating
- Ip Degree Of Protection : IP20 conforming to IEC 60529
- Ambient Air Temperature For Storage : -40-85 °C
- Contractual warranty
- Offer Sustainability
- Rohs Exemption Information : Yes
- Mercury Free : Yes
- Environmental Disclosure : ENVPEP2106019EN
- Sustainable Offer Status : Green Premium product
- Toxic Heavy Metal Free : Yes
- Reach Regulation : Free of Substances of Very High Concern above the threshold
- California Proposition 65 : "WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
- Reach Free Of Svhc : Yes
- Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation : X
- Circularity Profile : ENVEOLI2106019EN
- Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
- Complementary
- Maximum Switching Capacity : 3000 VA AC || 336 W DC
- Safety Reliability Data : B10d = 100000
- Continuous Output Current : 10 A
- Operating Rate : <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
- Torque Value : 1 N.m
- Protection Category : RT I
- Test Levels : level A group mounting
- Contacts Material : AgNi
- Reset Time : 20 ms
- Net Weight : 0.096 kg
- Cad Overall Height : 82.8 mm
- Maximum Switching Voltage : 250 V
- Average Resistance : 15000 Ohm 20 °C +/- 15 %
- Device Presentation : complete product
- Connections - Terminals : connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end || connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end || connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end || connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
- Average Coil Consumption : 1.2 W, AC
- Rated Operational Voltage Limits : 184...253 V AC
- [Ie] Rated Operational Current : 6 A 28 V DC) NC IEC || 6 A 250 V AC) NC IEC || 12 A 28 V DC) NO IEC || 12 A 250 V AC) NO IEC
- Sale Per Indivisible Quantity : 30
- [Ui] Rated Insulation Voltage : 250 V IEC
- Minimum Switching Current : 10 mA
- Electrical Durability : 100000 cycles resistive
- Mechanical Durability : 10000000 cycles
- Operating Position : any position
- Operating Time : 20 ms
- Load Current : 12 A 250 V AC || 12 A 28 V DC
- Drop-Out Voltage Threshold : >= 0.3 Uc AC
- [Uimp] Rated Impulse Withstand Voltage : 4 kV 1.2/50 µs
- Cad Overall Width : 26.9 mm
- Minimum Switching Voltage : 17 V
- Minimum Switching Capacity : 170 mW 10 mA, 17 V
- Cad Overall Depth : 80.35 mm
- Specifications
- Country of Origin : Indonesia
- Width : 26.9 mm
- Height : 82.8 mm
- Weight : 0.096 kg
- Utilisation Coefficient : 20 %
- [Uc] Control Circuit Voltage : 230 V AC 50/60 Hz
- Range Of Product : Harmony Electromechanical Relays
- Product Or Component Type : pre-assembled plug-in relay with socket
- Status Led : with
- Control Type : lockable test button
- Series Name : Miniature
- Contacts Type And Composition : 2 C/O
- Device Short Name : RXM
