miniature plug in relay, Harmony Electromechanical Relays, 6A, 4CO, with LED, lockable test but to n, 230V AC

PLUG-IN RELAY 250V 6A RXM +OPT

SQDRXM4AB2P7 RXM4AB2P7 3389119403887
10.76 / EA
http://schema.org/OutOfStock
Mayer-DDS-miniature plug in relay, Harmony Electromechanical Relays, 6A, 4CO, with LED, lockable test but to n, 230V AC-2
  • Certifications: CE, CSA, GOST, IECEE CB Scheme, Lloyd's, UL
  • Contact Material: Silver Alloy
  • Net Weight: 0.037 kg
  • Operating Cycles: 1200, 18000
  • Power Consumption: 1.2 VA, 60 Hz
  • Standard: CSA C22.2 No 14, IEC 61810-1, UL 508
  • Storage Temperature: -40-85 °C
  • Warranty Length: 18 mth

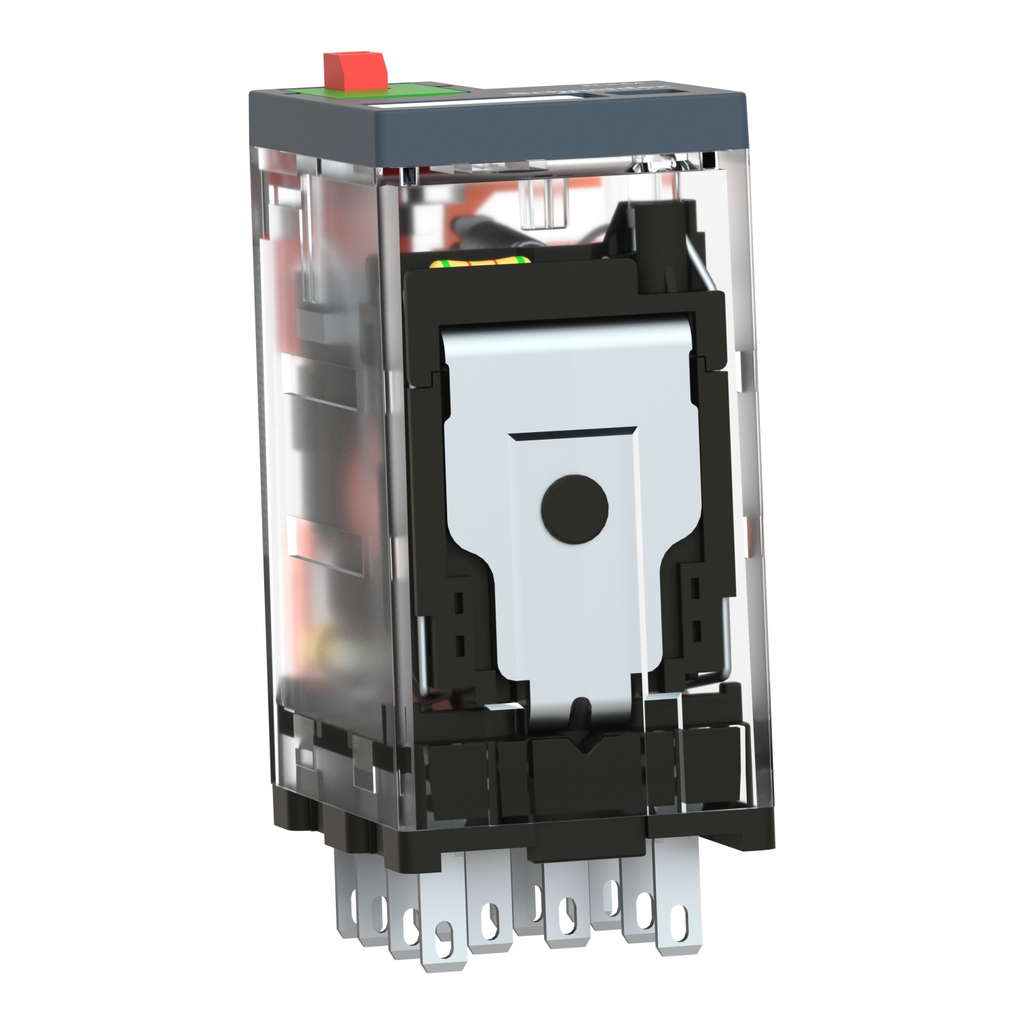

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay with current rating of 6A, control circuit voltage of 230 V AC 50/60 Hz. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the red pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. A green LED on the front will illuminate when the relay is on. Status display with LED: clearly signal both in the day and night. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.
QTY
  • Product Description
  • Specifications
RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay with current rating of 6A, control circuit voltage of 230 V AC 50/60 Hz. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the red pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. A green LED on the front will illuminate when the relay is on. Status display with LED: clearly signal both in the day and night. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.
  • Environment
    • Product Certifications : UL || Lloyd's || CE || CSA || GOST || IECEE CB Scheme
    • Standards : CSA C22.2 No 14 || IEC 61810-1 || UL 508
    • Pollution Degree : 2
    • Ambient Air Temperature For Operation : -40-55 °C
    • Dielectric Strength : 1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with basic insulation || 2000 V AC between poles with basic insulation
    • Vibration Resistance : 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
    • Shock Resistance : 10 gnin operation || 30 gnnot operating
    • Ip Degree Of Protection : IP40 conforming to IEC 60529
    • Ambient Air Temperature For Storage : -40-85 °C
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2106019EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI2106019EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Maximum Switching Capacity : 1500 VA/168 W
    • Safety Reliability Data : B10d = 100000
    • Average Consumption : 1.2 VA 60 Hz
    • Continuous Output Current : 5 A
    • Operating Rate : <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
    • Protection Category : RT I
    • Test Levels : level A group mounting
    • Contacts Material : AgNi
    • Reset Time : 20 ms
    • Shape Of Pin : flat
    • Net Weight : 0.037 kg
    • Cad Overall Height : 82.8 mm
    • Maximum Switching Voltage : 250 V IEC
    • Average Resistance : 15000 Ohm 20 °C +/- 15 %
    • Device Presentation : complete product
    • Rated Operational Voltage Limits : 184...253 V AC
    • [Ie] Rated Operational Current : 3 A 28 V DC) NC IEC || 3 A 250 V AC) NC IEC || 6 A 28 V DC) NO IEC || 6 A 250 V AC) NO IEC || 6 A 277 V AC) UL || 8 A 30 V DC) UL
    • [Ui] Rated Insulation Voltage : 250 V IEC || 300 V CSA || 300 V UL
    • Electrical Durability : 100000 cycles resistive
    • Mechanical Durability : 10000000 cycles
    • Operating Position : any position
    • Operating Time : 20 ms
    • Load Current : 6 A 250 V AC || 6 A 28 V DC
    • Drop-Out Voltage Threshold : >= 0.15 Uc
    • [Uimp] Rated Impulse Withstand Voltage : 2.5 kV 1.2/50 µs
    • Minimum Switching Capacity : 170 mW 10 mA, 17 V
    • Cad Overall Depth : 80.35 mm
    • Average Coil Consumption In Va : 1.2-1.2 60 Hz
  • Specifications
    • Utilisation Coefficient : 20 %
    • [Uc] Control Circuit Voltage : 230 V AC 50/60 Hz
    • Range Of Product : Harmony Electromechanical Relays
    • Product Or Component Type : plug-in relay
    • Status Led : with
    • Control Type : lockable test button
    • Series Name : Miniature
    • Contacts Type And Composition : 4 C/O
    • Device Short Name : RXM
