Interface plug-in relay, Harmony electromechanical relays, pre-assembled, 8A, 2CO, with LED, with protection circuit, 120V AC, 8800Ohm coil resistance

RSB RLY SCKT2C/O 8A 120VAC VAR

SQDRSB2A080F7PV RSB2A080F7PV SQDRSB2A080F7PV
38.71 / EA
http://schema.org/OutOfStock
QTY
  • Product Description
  • Specifications

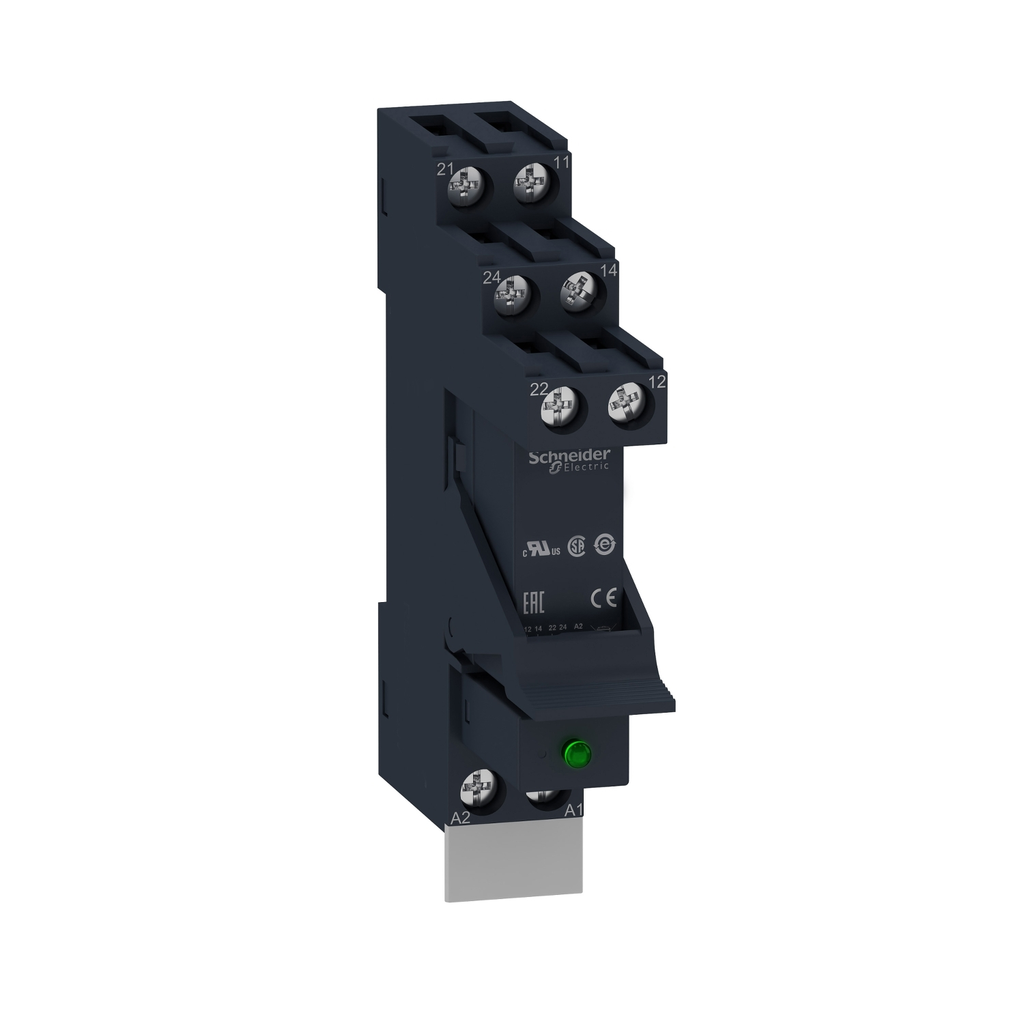

This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled electromechanical relay mounted on a separate contact terminal socket with varistor protection module and maintaining clamp. This is a 8A, 120Vac, 2 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The protection module comes with a green LED indicator. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.057Kg. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. This RSB plug-in relay range comprises of 12A relays with 1 CO contact, 16A relays with 1 CO contact, and 8A relays with 2 CO contacts.
  • Environment
    • Product Certifications : CE || UL || CSA || EAC
    • Standards : IEC 61810-1 || CSA C22.2 No 14 || UL 508 || IEC 61984
    • Ambient Air Temperature For Operation : -40-70 °C AC)
    • Shock Resistance : 10 gn 11 ms) not operating IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
    • Dielectric Strength : 1000 V AC between contacts || 2500 V AC between poles || 5000 V AC between coil and contact
    • Vibration Resistance : +/- 1 mm 10-55 Hz)IEC 60068-2-6
    • Ip Degree Of Protection : IP20 conforming to IEC 60529
    • Ambient Air Temperature For Storage : -40-85 °C
  • Contractual warranty
    • Warranty : 18 Months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2403026EN
    • Toxic Heavy Metal Free : Yes
    • California Proposition 65 : "WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Maximum Switching Capacity : 2000 VA AC || 224 W DC
    • Safety Reliability Data : B10d = 100000
    • [Ue] Rated Operational Voltage : 96...132 V AC 50/60 Hz
    • Operating Rate : <= 600 cycles/hour under load || <= 18000 cycles/hour no-load
    • Torque Value : 0.8 N.m || 7.0 lbf.in
    • Protection Category : RT I
    • Test Levels : level A group mounting
    • Contacts Material : silver alloy (AgNi)
    • Net Weight : 0.057 kg
    • [Uimp] Rated Impulse Withstand Voltage : 3.6 kV IEC 61000-4-5
    • Maximum Switching Voltage : 300 V DC IEC
    • Average Resistance : 8800 Ohm AC 20 °C +/- 15 %
    • Device Presentation : complete product
    • Connections - Terminals : connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end || connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end || connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end || connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
    • Switching Voltage : 12 V
    • Average Coil Consumption : 0.75 VA AC
    • [Ie] Rated Operational Current : 4 A AC-1/DC-1) NC IEC || 8 A AC-1/DC-1) NO IEC
    • Sale Per Indivisible Quantity : 30
    • [Ui] Rated Insulation Voltage : 400 V IEC 60947
    • Minimum Switching Current : 10 mA
    • Electrical Durability : 100000 cycles, 8 A at 250 V, AC-1 NO || 100000 cycles, 4 A at 250 V, AC-1 NC
    • Mechanical Durability : 5000000 cycles
    • Operating Position : any position
    • Operating Time : 20 ms operating || 20 ms reset
    • Load Current : 8 A 250 V AC || 8 A 28 V DC
    • Drop-Out Voltage Threshold : >= 0.15 Uc AC
    • Minimum Switching Capacity : 120 mW 10 mA, 12 V
  • Specifications
    • Country of Origin : Indonesia
    • Weight : 0.057 kg
    • [Uc] Control Circuit Voltage : 120 V AC 50/60 Hz
    • Range Of Product : Harmony Electromechanical Relays
    • Product Or Component Type : pre-assembled plug-in relay with socket
    • Status Led : 1 LED
    • Control Type : Without
    • Series Name : interface relay
    • Contacts Type And Composition : 2 C/O
    • Contact Operation : standard
    • Device Short Name : RSB
    • [Ithe] Conventional Enclosed Thermal Current : 8 A -40-40 °C
