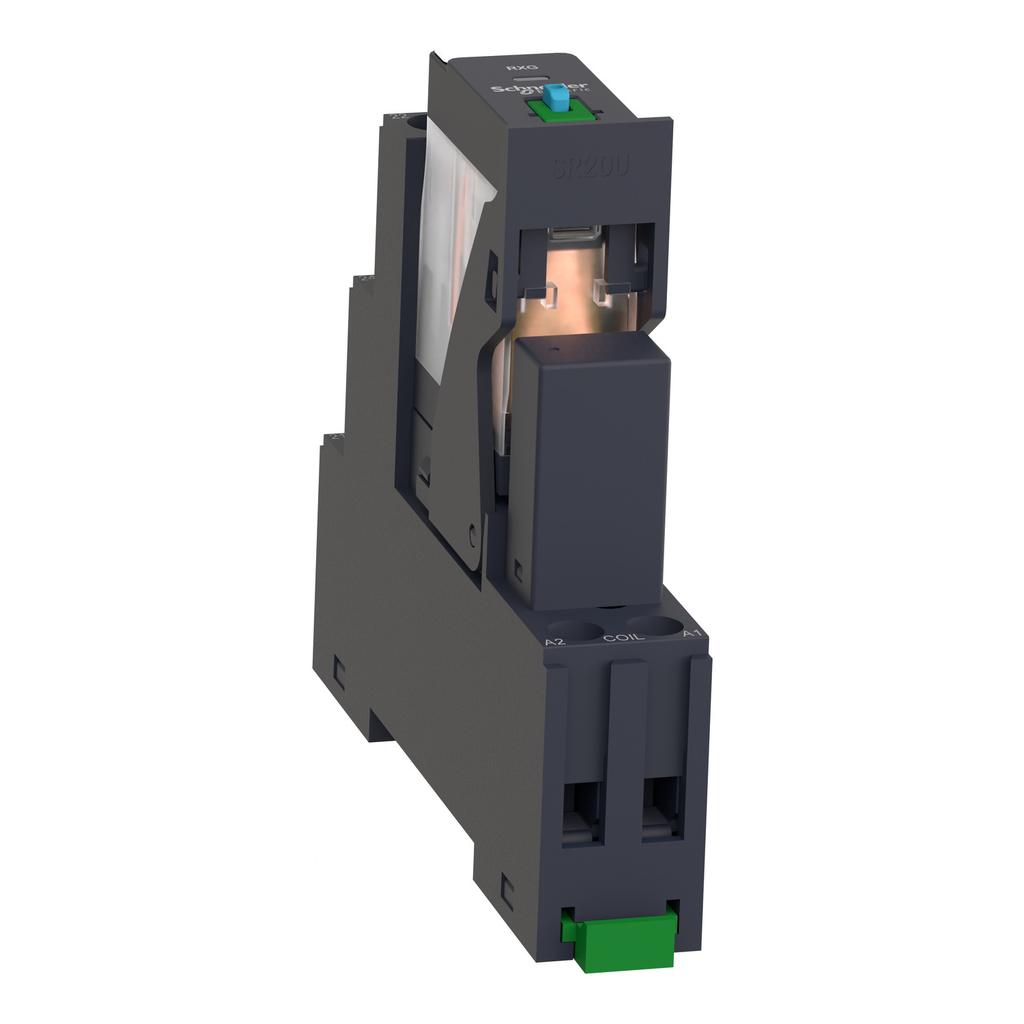

This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled relay mounted on a separate contact terminal socket with integrated clamp and a diode protection module. This is a 5A, 24Vdc, 2 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The relay offers single-step lockable test button. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.067Kg. Its design fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It conforms to international standards and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. The RXG plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 1 CO (10A) and 2 CO (5A) contacts.

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Assets
• Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0001889_3D-CAD
• Conformance Attributes
• Product Certifications : CSA, CE, EAC, UL, DNV
• Standards : IEC 61810-1, CSA C22.2 No 14, UL 508, IEC 61984
• Complementary Attributes
• Maximum Switching Capacity : 1250 VA AC, 150 W DC
• Ie Rated Operational Current : 10 A at 250 V (AC) conforming to IEC, 10 A at 30 V (DC) conforming to UL, 10 A at 30 V (DC) conforming to IEC, 10 A at 250 V (AC) conforming to UL
• Uc Control Circuit Voltage : 24 V DC, 24 V
• Uimp Rated Impulse Withstand Voltage : 1200 V AC between contacts with micro disconnection, 6000 V between coil and contact with reinforced insulation, 1500 V between terminals and case with basic insulation
• Control Circuit Type : DC
• Line Rated Current : 5 A
• Maximum Switching Voltage : 250 V
• Minimum Switching Capacity : 50 mW at 10 mA, 5 V DC
• Ui Rated Insulation Voltage : 250 V IEC
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Dielectric Strength : 1000 V AC between contacts with micro disconnection, 1300 V between terminals and base with basic insulation, 3000 V between terminals and LTB area with basic insulation, 3000 V AC between poles with basic insulation, 5000 V AC between coil and contact with reinforced insulation
• Drop Out Voltage Threshold : >= 0.1 Uc DC, >= 0.1 Uc DC, >= 0.1 Uc DC, >= 0.1 Uc DC, >= 0.1 Uc DC, >= 0.1 Uc DC, >= 0.1 Uc DC, >= 0.1 Uc DC
• Electrical Durability : 100000 cycles NO resistive at 55 °C, 100000 cycles NC resistive at 55 °C
• Operating Rate : <= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load, <= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load, <= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load, <= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
• Vibration Resistance : 3 gn +/- 1.5 mm 10-150 Hz)in operation, 5 gn +/- 1.5 mm 10-150 Hz)not in operation
• Connections Terminals : screw connectors, connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end, connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end, connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end, connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
• Ie Rated Operational Current : 10 A at 250 V (AC) conforming to IEC, 10 A at 30 V (DC) conforming to UL, 10 A at 30 V (DC) conforming to IEC, 10 A at 250 V (AC) conforming to UL
• Carbon Footprint Of The Distribution Phase A4 : 0.0085154502, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.0097052133, 0 kg CO2 eq.
• Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.0004322654
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.5 kg CO2 eq., 0.4817156398
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 5 kg CO2 eq., 5.0130101961
• Medium Desc : interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, pre assembled, lockable test but to n, 24V DC
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Global Commercial Status : Commercialised
• Return Indicator : Y
• Stocking Flag : N
• Legacy Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2208012EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : Yes
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Average Resistance : 1100 Ohm at 23 °C +/- 10 %
• Contact Resistance : 100 mOhm
• Contact Terminal Arrangement : separate
• Contacts Material : silver alloy (AgSnO2In2O3)
• Contacts Type And Composition : 2 C/O
• Control Type : lockable test button
• Electrical Insulation Class : class F
• Insulation Resistance : 1000 MOhm at 500 V DC
• Load Current : 5 A
• Mechanical Durability : 10000000 cycles
• Operating Time : 20 ms
• Overvoltage Category : III
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : pre-assembled plug-in relay with socket
• Protection Category : RT I
• Range Of Product : Harmony Electromechanical Relays
• Relay Type : interface relay
• Reset Time : 20 ms
• Returnability : Yes
• Safety Reliability Data : B10d = 100000
• Series Name : RXG series
• Shape Of Pin : flat (faston type)
• Software Version : EIME v5.7.0.4
• Status Led : without
• Sustainable Packaging : Yes
• Test Levels : level A group mounting
• Total Lifecycle Carbon Footprint : 6 kg CO2 eq.
• Utilisation Coefficient : 20 %
• Ithe Conventional Enclosed Thermal Current : 5 A
• Control Circuit Voltage : 24 V
• Control Circuit Type2 : DC
• Pep Code : ENVPEP2208012EN
• Database Version : 2018-09
• Pep Verification Date : 2018-09-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 30% use rate, in compliance with French standards.
• Functional Unit Unit : unité (unit)
• Energy Model Manufacturing A1 A3 2 : Energy model used: China
• Energy Model Installation A5 2 : Electricity mix; AC; < 1kV; EU-27
• Energy Model Use B6 2 : Electricity mix; AC; < 1kV; EU-27
• Energy Model End Of Life C1 C4 2 : Electricity mix; AC; < 1kV; EU-27
• Environment Attributes Main
• Ambient Air Temperature For Operation : -40-70 °C, -40-70 °C
• Ambient Air Temperature For Storage : -40-85 °C, -40-85 °C
• Take Back : Nej
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 5.5133787648
• Circularity Profile : ENVEOLI2208012EN
• Environmental Disclosure : ENVPEP2208012EN
• Eu Rohs Directive : Compliant
• Ip Degree Of Protection : IP20
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Relative Humidity : 10-85 %
• Pep Code : ENVPEP2208012EN
• Pep Verification Date : 2018-09-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : pre-assembled plug-in relay with socket
• Range Of Product : Harmony Electromechanical Relays
• ETIM
• ETIM 8 : EC001437
• ETIM 9 : EC001437
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Overview Attributes
• Device Presentation : complete product
• Presentation Of Legend : with
