interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, pre assembled, lockable test but to n, 24V AC

HARMONY, INTERFACE PLUG-IN REL

SQDRXG21B7PV RXG21B7PV SQDRXG21B7PV
0.00 / EA
http://schema.org/OutOfStock

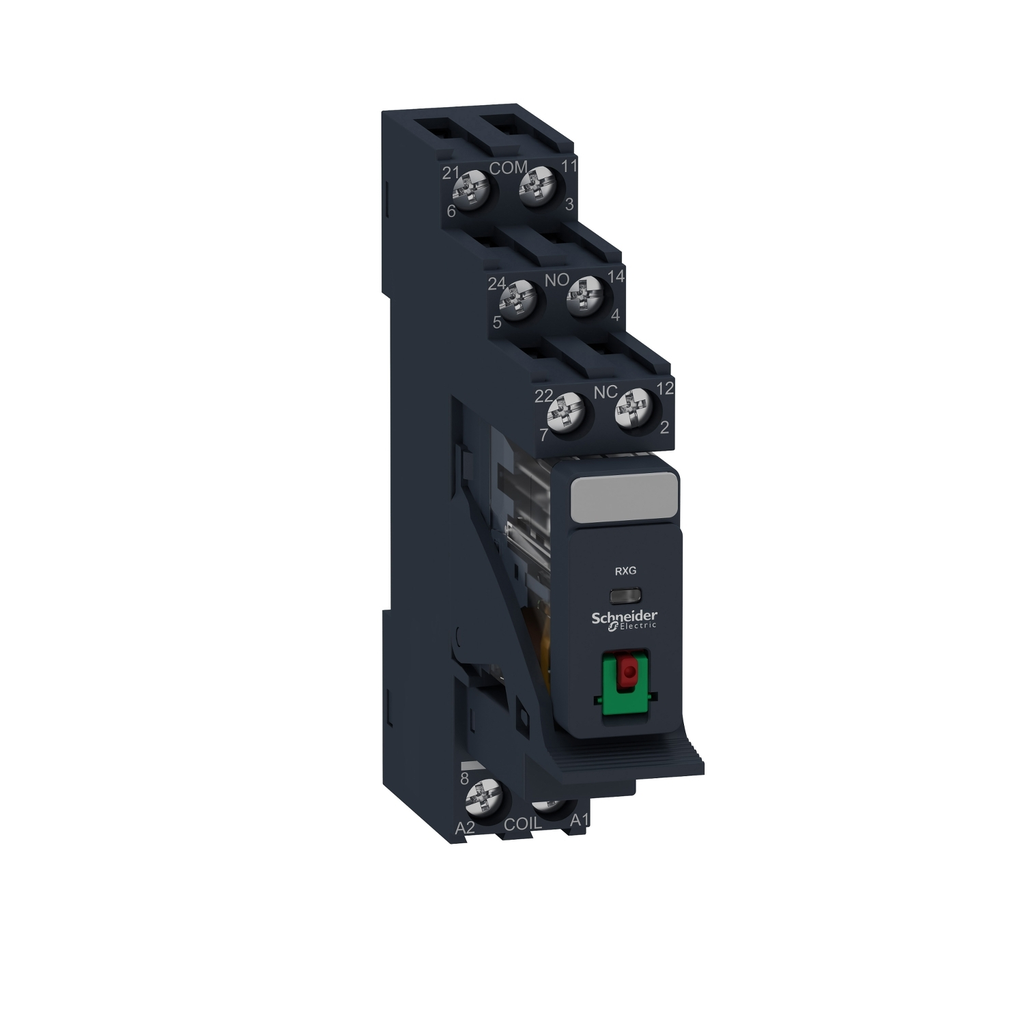

Mayer-DDS-interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, pre assembled, lockable test but to n, 24V AC-1
  • Country of Origin: China
  • Warranty Length: 18 mth
This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled relay mounted on a separate contact terminal socket with integrated clamp and a varistor protection module. This is a 5A, 24Vac
QTY
  • Product Description
  • Features
  • Specifications
This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled relay mounted on a separate contact terminal socket with integrated clamp and a varistor protection module. This is a 5A, 24Vac
  • Insulation Resistance
    • 1000 MOhm at 500 V DC
  • Connections Terminals
    • connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end
    • connector, 1 x 0.25...1 x 2.5
  • IE Rated Operational Current
    • 10 A at 30 V (DC) conforming to UL
    • 10 A at 30 V (DC) conforming to IEC
    • 10 A a
  • Test Levels
    • level A group mounting
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
  • Carbon Footprint Of The Installation Phase A5
    • 0.0004388149
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0 kg CO2 eq.
    • 0.009852262
  • UC Control Circuit Voltage
    • 24 V AC
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 0.5 kg CO2 eq.
    • 0.4890143616
  • UI Rated Insulation Voltage
    • 250 V IEC
  • Electrical Durability
    • 100000 cycles NO resistive at 55 °C
    • 100000 cycles NC resistive at 55 °C
    • 10
  • Vibration Resistance
    • 3 gn +/- 1.5 mm 10-150 Hz)in operation
    • 5 gn +/- 1.5 mm 10-150 Hz)not in operation
    • 5 gn +/- 1.5
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Charge Point Operator
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
    • System Integrator
    • IT Channel Partner
  • Drop Out Voltage Threshold
    • >= 0.3 Uc AC
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 6 kg CO2 eq.
    • 6.4722768627
  • Persona Type Ids
    • BM9
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SC
    • SI
    • VR
  • Dielectric Strength
    • 1000 V AC between contacts with micro disconnection
    • 1300 V between terminals and base with basic i
  • Carbon Footprint Of The Distribution Phase A4
    • 0.0086444722
    • 0 kg CO2 eq.
  • Average Resistance
    • 260 Ohm at 23 °C +/- 10 %
  • Minimum Switching Capacity
    • 50 mW at 10 mA, 5 V DC
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Operating Rate
    • <= 1800 cycles/hour under load
    • <= 18000 cycles/hour no-load
  • Maximum Switching Capacity
    • 1250 VA AC
    • 150 W DC
  • UIMP Rated Impulse Withstand Voltage
    • 1200 V AC between contacts with micro disconnection
    • 6000 V between coil and contact with reinforced insulation
    • 6000 V between coil and contact with re
  • Assets
    • CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0001888_3D-CAD
  • Complementary Attributes
    • Maximum Switching Voltage : 250 V
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-02-26
    • Manufacturing Carbon Footprint : 0.4890143616
    • Distribution Carbon Footprint : 0.0086444722
    • Installation Carbon Footprint : 0.0004388149
    • Use Carbon Footprint : 6.4722768627
    • End Of Life Carbon Footprint : 0.009852262
    • Legacy WEEE Scope : Out
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2208012EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 1907
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Contact Terminal Arrangement : separate
    • Load Current : 5 A
    • Package Weight Lbs : 67.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : pre-assembled plug-in relay with socket
    • Protection Category : RT I
    • Range Of Product : Harmony Electromechanical Relays
    • Returnability : No
    • Series Name : RXG series
    • Shape Of Pin : flat (faston type)
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 7 kg CO2 eq.
    • Utilisation Coefficient : 20 %
    • ITHE Conventional Enclosed Thermal Current : 5 A
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 6.9802267734
    • Relationship Type : Spare part relationship
    • Pep Code : ENVPEP2208012EN
    • Pep Verification Date : 2018-09-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • PSR Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Product Weight In G : 67
    • Functional Unit Description : To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 30% use rate, in compliance with French standards.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unité (unit)
    • Reference Lifetime In Y : 20
    • Energy Consumption On Product Lifetime In Kwh : 13.21008
    • Energy Model Manufacturing A1 A3 : Energy model used: China
    • Energy Model Installation A5 : Electricity mix; AC; < 1kV; EU-27
    • Energy Model Use B6 : Electricity mix; AC; < 1kV; EU-27
    • Energy Model End Of Life C1 C4 : Electricity mix; AC; < 1kV; EU-27
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0004996037
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0004990408
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000000003
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.0000005624
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000000002
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 80.430626596
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 6.7580224041
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.1214525348
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.0057109249
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 73.4662117647
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 0.0792289674
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0.0000256328
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.0000024094
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0.0000232234
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 2.9008570791
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 2.8006635071
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0
    • Hazardous Waste Disposed Of Kg Installation A5 : 0.0000000215
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.0033740761
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0968194744
    • Materials For Energy Recovery Kg Total Life Cycle : 0.0014165934
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0.0014165934
    • Materials For Recycling Kg Total Life Cycle : 0.0357981876
    • Materials For Recycling Kg Manufacturing A1 A3 : 0.0066043544
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0.0080671349
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 0.0211266983
    • Net Use Of Fresh Water M3 Total Life Cycle : 23.4893421531
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.0221918857
    • Net Use Of Fresh Water M3 Distribution A4 : 0.0000007736
    • Net Use Of Fresh Water M3 Installation A5 : 0.000000048
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 23.4671411765
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0000082693
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 24.3151022916
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.1832180095
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0003071339
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.0000595629
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 24.131252549
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0002650363
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0000004541
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.000000032
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.0000004216
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000000004
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.0162525761
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0001358379
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.0000002188
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.0000000117
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.0161160847
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.000000423
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 118.9525946048
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 5.9102024989
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.1220683613
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0057217981
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 112.8279686275
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.086633319
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 135.7564705074
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 6.2766192733
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.122222318
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.0057307468
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 129.2651686275
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 0.0867295419
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 16.8038555291
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.3663879075
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0001628861
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0000089003
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 16.4372
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0000958351
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.8941416056
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.8941416056
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 118.0584914883
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 5.0160993825
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.1220683613
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0057217981
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 112.8279686275
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.086633319
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.1609231653
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.1609231653
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 16.6429323638
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.2054647422
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0001628861
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0000089003
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 16.4372
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0000958351
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 0.0069316085
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.0069316085
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Air Pollution M3 Total Life Cycle : 386.8088875949
    • Air Pollution M3 Manufacturing A1 A3 : 107.2307913256
    • Air Pollution M3 Distribution A4 : 0.3677254057
    • Air Pollution M3 Installation A5 : 0.0175000574
    • Air Pollution M3 Operational Energy Use B6 : 278.5630823529
    • Air Pollution M3 End Of Life C1 C4 : 0.6297884533
    • Water Pollution M3 Total Life Cycle : 308.5942948062
    • Water Pollution M3 Manufacturing A1 A3 : 39.2685624013
    • Water Pollution M3 Distribution A4 : 1.4215970128
    • Water Pollution M3 Installation A5 : 0.0665487146
    • Water Pollution M3 Operational Energy Use B6 : 267.0697568627
    • Water Pollution M3 End Of Life C1 C4 : 0.7678298147
    • Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 0.0305487279
    • Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0.0017022406
    • Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0.0022448509
    • Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 0.0034918325
    • Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.0000394697
    • Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 0.0000018284
    • Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 0.0269976353
    • Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.0000179619
    • Global Warming Kg Equivalent Co2 Total Life Cycle : 6.9802267734
    • Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 0.4890143616
    • Global Warming Kg Equivalent Co2 Distribution A4 : 0.0086444722
    • Global Warming Kg Equivalent Co2 Installation A5 : 0.0004388149
    • Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 6.4722768627
    • Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 0.009852262
    • Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.0002139708
    • Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 0.0000028165
    • Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 0.0000001367
    • Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 0.001483458
    • Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 0.0000018585
    • Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.0006001614
    • Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.0000090909
    • Water Eutrophication Kg Equivalent P04 3 Installation A5 : 0.0000004443
    • Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 0.0016300593
    • Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.0000050949
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : pre-assembled plug-in relay with socket
    • Range Of Product : Harmony Electromechanical Relays
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=467217009&lang=en-us
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 6.9802267734
    • Circularity Profile : ENVEOLI2208012EN
    • Environmental Disclosure : ENVPEP2208012EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2208012EN
    • Pep Verification Date : 2018-09-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • PSR Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : China
  • Overview Attributes
    • Device Presentation : complete product
