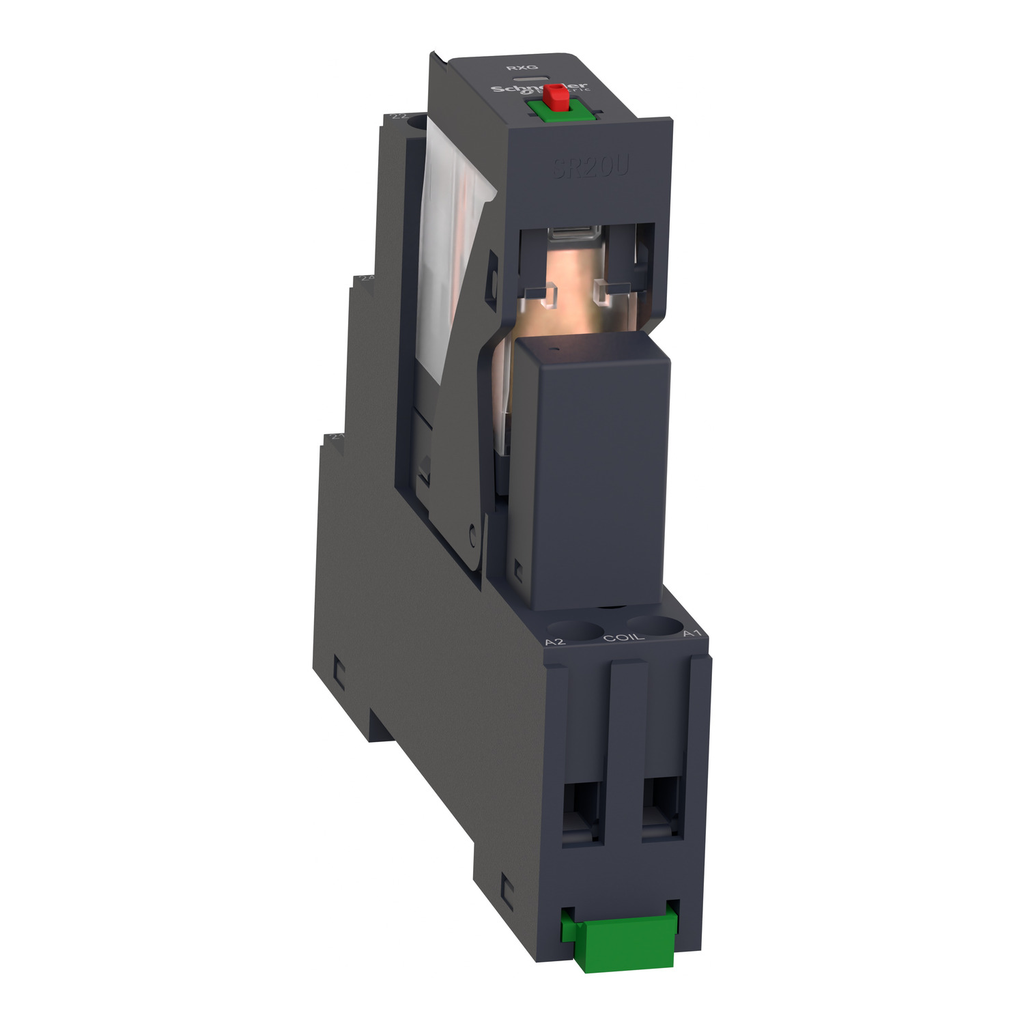

This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled relay mounted on a separate contact terminal socket with integrated clamp and a varistor protection module. This is a 5A, 230Vac, 2 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The relay offers single-step lockable test button. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.067Kg. Its design fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. The RXG plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 1 CO (10A) and 2 CO (5A) contacts.

• Environment
• Product Certifications : EAC || CSA || UL || CE || DNV-GL
• Ambient Air Temperature For Operation : -40-70 °C
• Standards : IEC 61810-1 || CSA C22.2 No 14 || UL 508 || IEC 61984
• Vibration Resistance : 3 gn +/- 1.5 mm 10-150 Hz)in operation || 5 gn +/- 1.5 mm 10-150 Hz)not in operation
• Relative Humidity : 10-85 %
• Ambient Air Temperature For Storage : -40-85 °C
• Ip Degree Of Protection : IP20
• Contractual warranty
• Warranty : 18 months
• Offer Sustainability
• Rohs Exemption Information : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP1406006EN
• Toxic Heavy Metal Free : Yes
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation : X
• Circularity Profile : N/A
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Complementary
• Utilisation Coefficient : 20 %
• Maximum Switching Capacity : 1250 VA AC || 150 W DC
• Safety Reliability Data : B10d = 100000
• [Uc] Control Circuit Voltage : 230 V AC 50/60 Hz
• Insulation Resistance : 1000 MOhm at 500 V DC
• Operating Rate : <= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
• Torque Value : 0.8 N.m || 7.0 lbf.in
• Protection Category : RT I
• Test Levels : level A group mounting
• Contacts Material : silver alloy (AgSnO2In2O3)
• Pollution Degree : 2
• Shock Resistance : 20 gn in operation || 100 gn not in operation
• Dielectric Strength : 1000 V AC between contacts with micro disconnection || 1300 V between terminals and base with basic insulation || 3000 V between terminals and LTB area with basic insulation || 3000 V AC between poles with basic insulation || 5000 V AC between coil and contact with reinforced insulation
• Status Led : without
• Net Weight : 0.065 kg
• Colour Of Cover : transparent
• Maximum Switching Voltage : 250 V
• Control Type : lockable test button
• Device Presentation : complete product
• Connections - Terminals : connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end || connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end || connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end || connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
• Average Coil Consumption : 0.96 VA AC 50-60 Hz
• [Ie] Rated Operational Current : 5 A 30 V DC) UL || 5 A 30 V DC) IEC || 5 A 250 V AC) IEC || 5 A 250 V AC) UL
• [Ui] Rated Insulation Voltage : 250 V IEC
• Electrical Durability : 100000 cycles resistive
• Mechanical Durability : 10000000 cycles
• Resistance : 23500 Ohm +/- 15 %
• Mounting Position : any position
• Overvoltage Category : III
• Load Current : 5 A
• Drop-Out Voltage Threshold : >= 0.3 Uc AC
• Minimum Switching Capacity : 50 mW at 10 mA, 5 V DC
• Specifications
• Range Of Product : Harmony Electromechanical Relays
• Product Or Component Type : pre-assembled plug-in relay with socket
• Series Name : interface relay
• Contacts Type And Composition : 2 C/O
• Device Short Name : RXG
• [Ithe] Conventional Enclosed Thermal Current : 5 A
