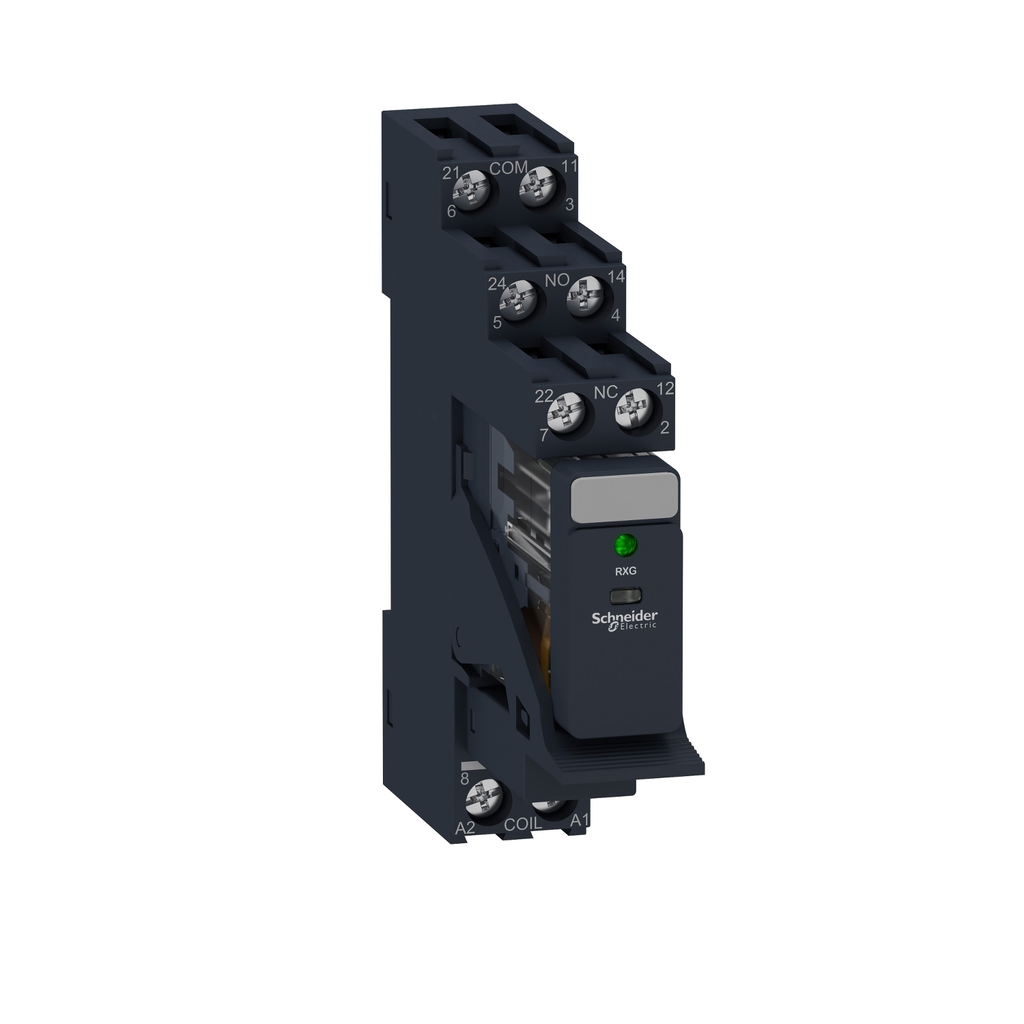

This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled relay mounted on a separate contact terminal socket with integrated clamp and a varistor protection module. This is a 5A, 230Vac, 2 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The relay offers LED indicator. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.067Kg. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It conforms to international standards and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. The RXG plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 1 CO (10A) and 2 CO (5A) contacts.

• Features
• With LED
• Can be expanded with protection modules
• Reduces size of enclosures while increasing machine reliability
• Easy to use
• High performance ensuring machine and system availability
• Wide range to meet most industrial applications
• Mechanical durability of 10 million cycles
• Electrical durability of 100,000 cycles
• IP20 degree of protection
• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Conformance Attributes
• Product Certifications : EAC, CSA, UL, CE, DNV
• Standards : IEC 61810-1, CSA C22.2 No 14, UL 508, IEC 61984
• Complementary Attributes
• Maximum Switching Capacity : 1250 VA AC, 150 W DC
• Control Circuit Type : AC
• Line Rated Current : 5 A
• Maximum Switching Voltage : 250 V
• Minimum Switching Capacity : 50 mW at 10 mA, 5 V DC
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Dielectric Strength : 1000 V AC between contacts with micro disconnection, 1300 V between terminals and base with basic insulation, 3000 V between terminals and LTB area with basic insulation, 3000 V AC between poles with basic insulation, 5000 V AC between coil and contact with reinforced insulation
• Drop Out Voltage Threshold : >= 0.3 Uc AC, >= 0.3 Uc AC, >= 0.3 Uc AC, >= 0.3 Uc AC
• Electrical Durability : 100000 cycles NO resistive at 55 °C, 100000 cycles NC resistive at 55 °C
• Vibration Resistance : 3 gn +/- 1.5 mm 10-150 Hz)in operation, 5 gn +/- 1.5 mm 10-150 Hz)not in operation
• Ie Rated Operational Current2 : 10 A at 30 V (DC) conforming to UL, 10 A at 30 V (DC) conforming to IEC, 10 A at 250 V (AC) conforming to UL
• Uc Control Circuit Voltage2 : 230 V AC, 230 V
• Uimp Rated Impulse Withstand Voltage2 : 1200 V AC between contacts with micro disconnection, 6000 V between coil and contact with reinforced insulation, 1500 V between terminals and case with basic insulation
• Carbon Footprint Of The Distribution Phase A4 : 0.0086444722, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.009852262, 0 kg CO2 eq.
• Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.0004388149
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.5 kg CO2 eq., 0.4890143616
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 12 kg CO2 eq., 11.7313594771
• Connections Terminals : screw connectors, connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end, connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end, connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end, connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
• Operating Rate : <= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load, <= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
• Connections Terminals3 : connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end, connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end, connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end, connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
• Ie Rated Operational Current5 : 10 A at 30 V (DC) conforming to UL, 10 A at 30 V (DC) conforming to IEC, 10 A at 250 V (AC) conforming to UL, 10 A at 250 V (AC) conforming to IEC
• Uimp Rated Impulse Withstand Voltage5 : 1200 V AC between contacts with micro disconnection, 6000 V between coil and contact with reinforced insulation, 1500 V between terminals and case with basic insulation
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2208012EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• Function Option Id : STANDARD
• Function Option : Standard
• Contact Resistance : 100 mOhm
• Contacts Material : silver alloy (AgSnO2In2O3)
• Contacts Type And Composition : 2 C/O
• Control Type : without lockable test button
• Electrical Insulation Class : class F
• Insulation Resistance : 1000 MOhm at 500 V DC
• Load Current : 5 A
• Mechanical Durability : 10000000 cycles
• Operating Time : 20 ms
• Overvoltage Category : III
• Package Weight Lbs : 63.000 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : pre-assembled plug-in relay with socket
• Range Of Product : Harmony Electromechanical Relays
• Relay Type : interface relay
• Returnability : No
• Series Name : RXG series
• Shape Of Pin : flat (faston type)
• Status Led : with
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 12 kg CO2 eq.
• Ithe Conventional Enclosed Thermal Current2 : 5 A
• Ui Rated Insulation Voltage2 : 250 V IEC
• Medium Desc : interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, pre assembled, with LED, 230V AC
• Stocking Flag : Y
• Product Kit Identifier : N
• Pep Code : ENVPEP2208012EN
• Database Version : 2018-09
• Pep Verification Date : 2018-09-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 30% use rate, in compliance with French standards.
• Functional Unit Unit : unité (unit)
• Energy Model Manufacturing A1 A3 2 : Energy model used: China
• Energy Model Installation A5 2 : Electricity mix; AC; < 1kV; EU-27
• Energy Model Use B6 2 : Electricity mix; AC; < 1kV; EU-27
• Energy Model End Of Life C1 C4 2 : Electricity mix; AC; < 1kV; EU-27
• Average Resistance : 23500 Ohm at 23 °C +/- 15 %
• Contact Terminal Arrangement : separate
• Protection Category : RT I
• Reset Time : 20 ms
• Safety Reliability Data : B10d = 100000
• Test Levels : level A group mounting
• Utilisation Coefficient : 20 %
• Global Commercial Status : Commercialised
• Ithe Conventional Enclosed Thermal Current5 : 5 A
• Uc Control Circuit Voltage5 : 230 V AC
• Ui Rated Insulation Voltage5 : 250 V IEC
• Environment Attributes Main
• Take Back : Nej, No
• EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Exemption Information : Yes
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 12.2393093878
• Ambient Air Temperature For Operation : -40-70 °C
• Ambient Air Temperature For Storage : -40-85 °C
• Circularity Profile : ENVEOLI2208012EN
• Environmental Disclosure : ENVPEP2208012EN
• IP Degree Of Protection : IP20
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Relative Humidity : 10-85 %
• Pep Code : ENVPEP2208012EN
• Pep Verification Date : 2018-09-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : pre-assembled plug-in relay with socket
• Range Of Product : Harmony Electromechanical Relays
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Overview Attributes
• Device Presentation : complete product
• Presentation Of Legend : with
