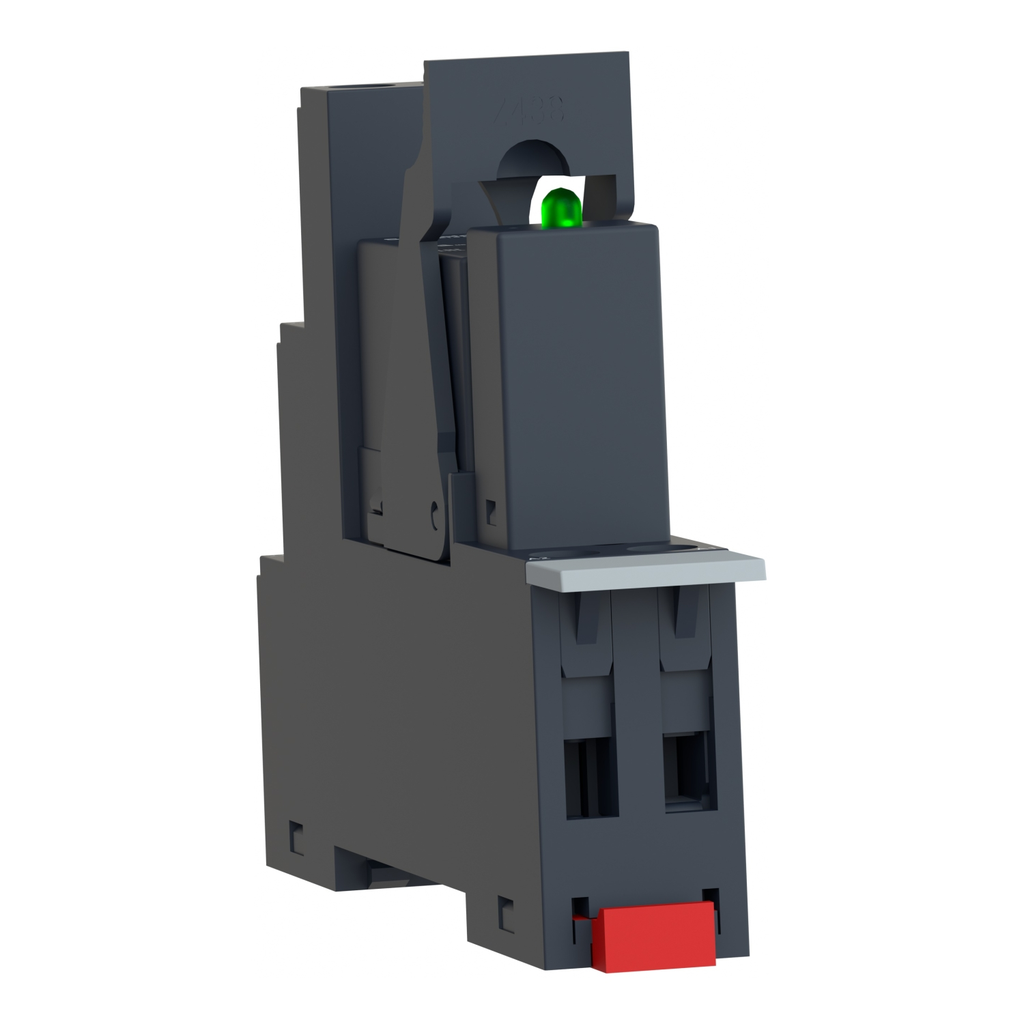

Interface plug-in relay, Harmony electromechanical relays, pre-assembled, 16A, 1CO, with LED, 230V AC

HARMONY, INTERFACE PLUG-IN REL

SQDRSB1A160P7PV RSB1A160P7PV SQDRSB1A160P7PV
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Interface plug-in relay, Harmony electromechanical relays, pre-assembled, 16A, 1CO, with LED, 230V AC-2
  • Country of Origin: Indonesia
  • Operating Position: Any Position
  • Warranty Length: 18 mth
This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled electromechanical relay mounted on a separate contact terminal socket with varistor protection module and maintaining clamp. Th
QTY
  • Product Description
  • Features
  • Specifications
This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled electromechanical relay mounted on a separate contact terminal socket with varistor protection module and maintaining clamp. Th
  • Uc Control Circuit Voltage
    • 12 V AC 50/60 Hz
  • Connections Terminals
    • connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end
    • connector, 1 x 0.25...1 x 2.5
  • Test Levels
    • level A group mounting
  • Uimp Rated Impulse Withstand Voltage
    • 3.6 kV IEC 61000-4-5
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
  • Carbon Footprint Of The Installation Phase A5
    • 0.0003214149
    • 0 kg CO2 eq.
  • Load Current
    • 16 A 250 V AC
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.1 kg CO2 eq.
    • 0.0835022307
  • Standards
    • IEC 61810-1
    • CSA C22.2 No 14
    • UL 508
    • IEC 61984
  • Ue Rated Operational Voltage
    • 184...253 V AC 50/60 Hz
  • Ui Rated Insulation Voltage
    • 400 V IEC 60947
  • Operating Time
    • 20 ms operating
    • 20 ms reset
  • Maximum Switching Voltage
    • 300 V DC IEC
  • Ip Degree Of Protection
    • IP20 conforming to IEC 60529
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 0.4 kg CO2 eq.
    • 0.4452517527
  • Electrical Durability
    • 70000 cycles, 16 A at 250 V, AC-1 NO
    • 70000 cycles, 8 A at 250 V, DC-1 NC
    • 70000 cycles, 8 A at 250 V, DC-1
  • Vibration Resistance
    • +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Charge Point Operator
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
    • System Integrator
    • IT Channel Partner
  • Drop Out Voltage Threshold
    • >= 0.15 Uc AC
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 17 kg CO2 eq.
    • 17.2014239059
  • Persona Type Ids
    • BM9
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SC
    • SI
    • VR
  • Dielectric Strength
    • 1000 V AC between contacts
    • 5000 V AC between coil and contact
  • Carbon Footprint Of The Distribution Phase A4
    • 0.0065382409
    • 0 kg CO2 eq.
  • Average Resistance
    • 32500 Ohm AC 20 °C +/- 15 %
  • Torque Value
    • 0.8 N.m
    • 7.0 lbf.in
  • Ie Rated Operational Current
    • 16 A AC-1/DC-1) NO IEC
    • 8 A AC-1/DC-1) NC IEC
  • Minimum Switching Capacity
    • 120 mW 10 mA, 12 V
  • Ithe Conventional Enclosed Thermal Current
    • 16 A -40-40 °C
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Operating Rate
    • <= 600 cycles/hour under load
    • <= 18000 cycles/hour no-load
  • Maximum Switching Capacity
    • 4000 VA AC
    • 448 W DC
  • Shock Resistance
    • 10 gn 11 ms) not operating IEC 60068-2-27
    • 5 gn 11 ms) in operation IEC 60068-2-27
    • 5 gn 1
  • Ambient Air Temperature For Operation
    • -40-70 °C AC)
  • Average Coil Consumption
    • 0.75 VA AC
  • Product Certifications
    • CE
    • UL
    • CSA
    • EAC
  • Complementary Attributes
    • Control Circuit Type : AC
    • Line Rated Current : 16 A
    • Minimum Switching Current : 10 mA
  • Important Information Attributes
    • Country Id : US
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-02-26
    • ETIM 10 : EC001437
    • Manufacturing Carbon Footprint : 0.4452517527
    • Distribution Carbon Footprint : 0.0065382409
    • Installation Carbon Footprint : 0.0003214149
    • Use Carbon Footprint : 17.2014239059
    • End Of Life Carbon Footprint : 0.0835022307
    • Legacy WEEE Scope : Out
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2403026EN
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant
    • ROHS Eur Conformity Date : 1907
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Compatibility Code : RSB
    • Contact Operation : standard
    • Contact Terminal Arrangement : separate
    • Contacts Material : silver alloy (AgNi)
    • Contacts Type And Composition : 1 C/O
    • Control Type : without lockable test button
    • Mechanical Durability : 10000000 cycles
    • Operating Position : any position
    • Package Weight Lbs : 56.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : pre-assembled plug-in relay with socket
    • Protection Category : RT I
    • Range Of Product : Harmony Electromechanical Relays
    • Relay Type : interface relay
    • Returnability : Yes
    • Safety Reliability Data : B10d = 100000
    • Sale Per Indivisible Quantity : 30
    • Series Name : RSB series
    • Shape Of Pin : flat (PCB type)
    • Status Led : with
    • Sustainable Packaging : Yes
    • Switching Voltage : 12 V
    • Total Lifecycle Carbon Footprint : 18 kg CO2 eq.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 17.7370375452
    • Relationshiptype : Spare part relationship
  • General Attributes
    • Product Or Component Type : pre-assembled plug-in relay with socket
    • Range Of Product : Harmony Electromechanical Relays
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=467216996&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 17.7370375452
    • Ambient Air Temperature For Storage : -40-85 °C
    • Circularity Profile : ENVEOLI2403026EN
    • Environmental Disclosure : ENVPEP2403026EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
  • Contractual Warranty Attributes
    • Warranty Period : 18 Months
    • Warranty : 18 Months
  • Specifications
    • Country of Origin : Indonesia
  • Overview Attributes
    • Device Presentation : complete product
