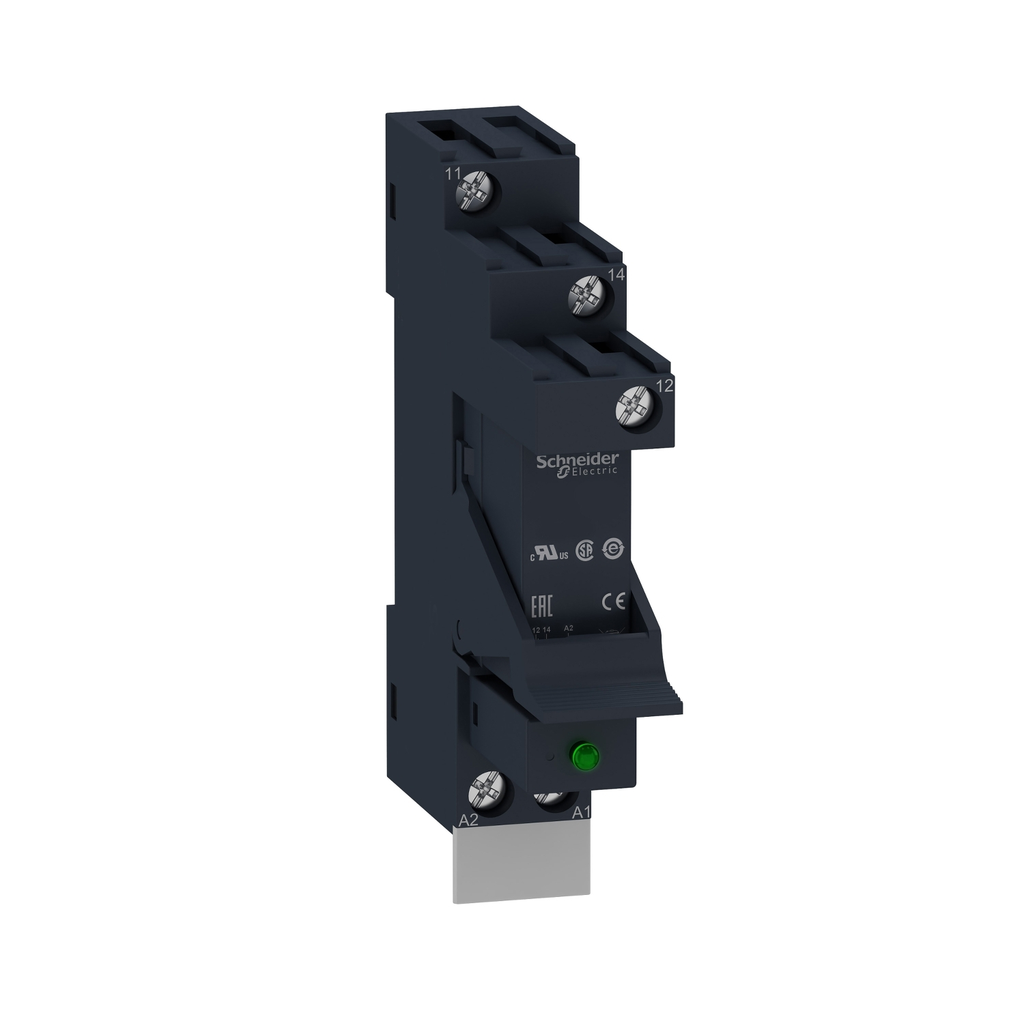

This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled electromechanical relay mounted on a separate contact terminal socket with diode protection module and maintaining clamp. This

• Connections Terminals
• connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end
• connector, 1 x 0.25...1 x 2.5
• IE Rated Operational Current
• 12 A AC-1/DC-1) NO IEC
• 6 A AC-1/DC-1) NC IEC
• Test Levels
• level A group mounting
• IP Degree Of Protection
• IP20 conforming to IEC 60529
• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
• Carbon Footprint Of The Installation Phase A5
• 0.0003085583
• 0 kg CO2 eq.
• Load Current
• 12 A 250 V AC
• 12 A 28 V DC
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.1 kg CO2 eq.
• 0.0801621415
• Operating Time
• 20 ms operating
• 20 ms reset
• Maximum Switching Voltage
• 300 V DC IEC
• UC Control Circuit Voltage
• 24 V DC
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 0.4 kg CO2 eq.
• 0.4274416826
• UI Rated Insulation Voltage
• 400 V IEC 60947
• Electrical Durability
• 100000 cycles, 12 A at 250 V, AC-1 NO
• 100000 cycles, 6 A at 250 V, AC-1 NC
• 100000 cycles, 6 A at 250 V
• Vibration Resistance
• +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Charge Point Operator
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Electrician
• System Integrator
• IT Channel Partner
• Drop Out Voltage Threshold
• >= 0.1 Uc DC
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 6 kg CO2 eq.
• 5.5040681998
• ITHE Conventional Enclosed Thermal Current
• 12 A -40-40 °C
• Persona Type Ids
• BM9
• EU
• LC
• OM
• OM8
• PB
• SC
• SI
• VR
• Dielectric Strength
• 1000 V AC between contacts
• 5000 V AC between coil and contact
• Carbon Footprint Of The Distribution Phase A4
• 0.0062767113
• 0 kg CO2 eq.
• Average Resistance
• 1440 Ohm DC 20 °C +/- 10 %
• Minimum Switching Capacity
• 120 mW 10 mA, 12 V
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Operating Rate
• <= 600 cycles/hour under load
• <= 18000 cycles/hour no-load
• Maximum Switching Capacity
• 3000 VA AC
• 336 W DC
• Shock Resistance
• 10 gn 11 ms) not operating IEC 60068-2-27
• 5 gn 11 ms) in operation IEC 60068-2-27
• 5 gn 1
• Ambient Air Temperature For Operation
• -40-85 °C DC)
• UE Rated Operational Voltage
• 19.2...26.4 V DC
• Average Coil Consumption
• 0.45 W DC
• UIMP Rated Impulse Withstand Voltage
• 3.6 kV IEC 61000-4-5

• Assets
• CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0001832_3D-CAD
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-09
• Manufacturing Carbon Footprint : 0.4274416826
• Distribution Carbon Footprint : 0.0062767113
• Installation Carbon Footprint : 0.0003085583
• Use Carbon Footprint : 5.5040681998
• End Of Life Carbon Footprint : 0.0801621415
• Legacy WEEE Scope : Out
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 1907
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Compatibility Code : RSB
• Contact Terminal Arrangement : separate
• Package Weight Lbs : 48.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : pre-assembled plug-in relay with socket
• Protection Category : RT I
• Range Of Product : Harmony Electromechanical Relays
• Returnability : Yes
• Sale Per Indivisible Quantity : 30
• Series Name : RSB series
• Shape Of Pin : flat (PCB type)
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 6 kg CO2 eq.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 6.0182572935
• Relationship Type : Spare part relationship
• Pep Code : ENVPEP2403026EN
• Pep Verification Date : 2023-12-07
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Product Weight In G : 48
• Functional Unit Description : The main purpose of the RSB Interface plug-in Relay is having at least 2 C/O contacts for switching by a small control signal controlling a larger load current or voltage. It helps to reduce the size of enclosures and increases machine reliability, you c
• Reference Lifetime In Y : 10
• Energy Consumption On Product Lifetime In Kwh : 11.9542465
• Energy Model Manufacturing A1 A3 : Energy model used: Electricity Mix; Production mix; Low voltage; CN
• Energy Model Installation A5 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
• Energy Model Use B6 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
• Energy Model End Of Life C1 C4 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
• Recyclability Potential In : 75
• Acidification Ap Mole Of H Equiv Total Life Cycle : 0.0420466386
• Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.0082894073
• Acidification Ap Mole Of H Equiv Distribution A4 : 0.0000403732
• Acidification Ap Mole Of H Equiv Installation A5 : 0.0000019524
• Acidification Ap Mole Of H Equiv Maintenance B2 : 0
• Acidification Ap Mole Of H Equiv Repair B3 : 0
• Acidification Ap Mole Of H Equiv Replacement B4 : 0
• Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.0331957165
• Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.0005191893
• Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.0024648566
• Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.0125901583
• Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.0042848184
• Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
• Climate Change Biogenics Kg Co2 Eq Installation A5 : 0
• Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
• Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
• Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
• Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.0058458065
• Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.0024595335
• Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.0024969178
• Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 6.0057094846
• Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 0.4231586998
• Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.0062767113
• Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.0003085583
• Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 5.4982630295
• Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.0777024857
• Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.1075365201
• Climate Change Total Kg Co2 Eq Total Life Cycle : 6.0182572935
• Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 0.4274416826
• Climate Change Total Kg Co2 Eq Distribution A4 : 0.0062767113
• Climate Change Total Kg Co2 Eq Installation A5 : 0.0003085583
• Climate Change Total Kg Co2 Eq Maintenance B2 : 0
• Climate Change Total Kg Co2 Eq Repair B3 : 0
• Climate Change Total Kg Co2 Eq Replacement B4 : 0
• Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 5.5040681998
• Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.0801621415
• Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.1100328872
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Maintenance B2 : 0
• Components For Re Use Kg Repair B3 : 0
• Components For Re Use Kg Replacement B4 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0032006282
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0031978585
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000000002
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.0000003081
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000024613
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.0000364543
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 133.9179166661
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 7.4312810707
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.0874493308
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.0043004207
• Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 121.9852491326
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 4.4096367113
• Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -2.0406883365
• Ecotoxicity Fresh Water Ctue Total Life Cycle : 97.5497332006
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 20.5739196941
• Ecotoxicity Fresh Water Ctue Distribution A4 : 0.0042239388
• Ecotoxicity Fresh Water Ctue Installation A5 : 0.0002076574
• Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
• Ecotoxicity Fresh Water Ctue Repair B3 : 0
• Ecotoxicity Fresh Water Ctue Replacement B4 : 0
• Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 68.0376916618
• Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 8.9336902486
• Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -2.7724053537
• Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.000000319
• Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.0000000853
• Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.0000000003
• Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0
• Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
• Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
• Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
• Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.0000002308
• Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.0000000026
• Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.0000000482
• Exported Energy Mj By Energy Vector Total Life Cycle : 0
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0
• Exported Energy Mj By Energy Vector Maintenance B2 : 0
• Exported Energy Mj By Energy Vector Repair B3 : 0
• Exported Energy Mj By Energy Vector Replacement B4 : 0
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
• Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
• Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.0001036908
• Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.0000060806
• Freshwater Eutrophication Kg P Eq Distribution A4 : 0.0000000024
• Freshwater Eutrophication Kg P Eq Installation A5 : 0.0000000001
• Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
• Freshwater Eutrophication Kg P Eq Repair B3 : 0
• Freshwater Eutrophication Kg P Eq Replacement B4 : 0
• Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.0000102135
• Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.0000873943
• Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.0000002079
• Hazardous Waste Disposed Of Kg Total Life Cycle : 10.9317765239
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 10.7744550669
• Hazardous Waste Disposed Of Kg Distribution A4 : 0
• Hazardous Waste Disposed Of Kg Installation A5 : 0
• Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Hazardous Waste Disposed Of Kg Repair B3 : 0
• Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.1143509025
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0429705545
• Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -3.0543479924
• Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.0000006549
• Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.0000006542
• Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0
• Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.0000000007
• Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.0000000001
• Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.0000004572
• Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.0000001172
• Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.0000000819
• Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.0000000281
• Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.0000000072
• Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.0000000309
• Impacts Related To Land Use Soil Quality Total Life Cycle : 0.3147963869
• Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.0030895602
• Impacts Related To Land Use Soil Quality Distribution A4 : 0
• Impacts Related To Land Use Soil Quality Installation A5 : 0
• Impacts Related To Land Use Soil Quality Maintenance B2 : 0
• Impacts Related To Land Use Soil Quality Repair B3 : 0
• Impacts Related To Land Use Soil Quality Replacement B4 : 0
• Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0.0852900007
• Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0.226416826
• Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 10.4585405064
• Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 4.9079923518
• Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.0000152682
• Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.0000007509
• Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 5.5462378334
• Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.0042943021
• Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -3.3627533461
• Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.0046025997
• Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.0007828375
• Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.0000189595
• Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.0000009151
• Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.0037155281
• Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.0000843595
• Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0000761637
• Materials For Energy Recovery Kg Total Life Cycle : 0
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Maintenance B2 : 0
• Materials For Energy Recovery Kg Repair B3 : 0
• Materials For Energy Recovery Kg Replacement B4 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0
• Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
• Materials For Recycling Kg Total Life Cycle : 0.0314493308
• Materials For Recycling Kg Manufacturing A1 A3 : 0
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0
• Materials For Recycling Kg Maintenance B2 : 0
• Materials For Recycling Kg Repair B3 : 0
• Materials For Recycling Kg Replacement B4 : 0
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 0.0314493308
• Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
• Net Use Of Fresh Water M3 Total Life Cycle : 0.0155978904
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.0088997323
• Net Use Of Fresh Water M3 Distribution A4 : 0.0000005542
• Net Use Of Fresh Water M3 Installation A5 : 0.0000000273
• Net Use Of Fresh Water M3 Maintenance B2 : 0
• Net Use Of Fresh Water M3 Repair B3 : 0
• Net Use Of Fresh Water M3 Replacement B4 : 0
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.0047107314
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0019868451
• Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.0029996176
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 1.0290693464
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.2010585086
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0002200382
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.000010821
• Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Non Hazardous Waste Disposed Of Kg Repair B3 : 0
• Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.8268972253
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0008827533
• Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.0544244742
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0000001097
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0000000835
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.0000000246
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000000016
• Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.000000025
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.0153934699
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.0029996788
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.0000525461
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.0000025322
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.0120550386
• Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.0002836742
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.0004171319
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.0002596299
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0001194279
• Radioactive Waste Disposed Of Kg Distribution A4 : 0.0000001567
• Radioactive Waste Disposed Of Kg Installation A5 : 0.0000000077
• Radioactive Waste Disposed Of Kg Maintenance B2 : 0
• Radioactive Waste Disposed Of Kg Repair B3 : 0
• Radioactive Waste Disposed Of Kg Replacement B4 : 0
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.0001397294
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0000003082
• Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.000025983
• Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.0623326701
• Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.0086403059
• Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.0002080061
• Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.0000100393
• Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
• Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
• Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
• Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0.0524732633
• Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.0010010554
• Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0008837323
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 133.9179166661
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 7.4312810707
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0874493308
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0043004207
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 121.9852491326
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 4.4096367113
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -2.0406883365
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 159.8699747131
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 8.0333460803
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.0875655832
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.0043062333
• Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 147.276076128
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 4.4686806883
• Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -2.1025468451
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 25.9485307888
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.6018814532
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.000116696
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0000057389
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 25.2875410499
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0589858509
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.061873805
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.4295219885
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.4295219885
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 133.4883946776
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 7.0017590822
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0874493308
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0043004207
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 121.9852491326
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 4.4096367113
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -2.0406883365
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 25.9485307888
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.6018814532
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.000116696
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0000057389
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 25.2875410499
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0589858509
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.061873805
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Maintenance B2 : 0
• Use Of Secondary Materials Kg Repair B3 : 0
• Use Of Secondary Materials Kg Replacement B4 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
• General Attributes
• Product Or Component Type : pre-assembled plug-in relay with socket
• Range Of Product : Harmony Electromechanical Relays
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=467216991&lang=en-us
• Take Back : No
• Reach Free SHVC : Yes
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 6.0182572935
• Environmental Disclosure : ENVPEP2403026EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2403026EN
• Pep Verification Date : 2023-12-07
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Contractual Warranty Attributes
• Warranty Period : 18 Months
• Warranty : 18 Months
• Specifications
• Country of Origin : Indonesia
• Overview Attributes
• Device Presentation : complete product
