interface plug in relay, Harmony Electromechanical Relays, pre assembled, 10A, 1CO, with LED, lockable test but to n, 24V AC

HARMONY, INTERFACE PLUG-IN REL

SQDRXG12B7PV SQDRXG12B7PV
0.00 / EA
http://schema.org/OutOfStock
  • Certifications: CE, CSA, DNV-GL, EAC, UL
  • Contact Material: Silver Alloy
  • Net Weight: 0.058 kg
  • Operating Cycles: <= 1800 Cycles/hour Under Load, <= 18000 Cycles/hour No-load
  • Resistance: 10 %, 260 ohm
  • Standard: CSA C22.2 No 14, IEC 61810-1, IEC 61984, UL 508
  • Storage Temperature: -40-85 °C
  • Warranty Length: 18 mth

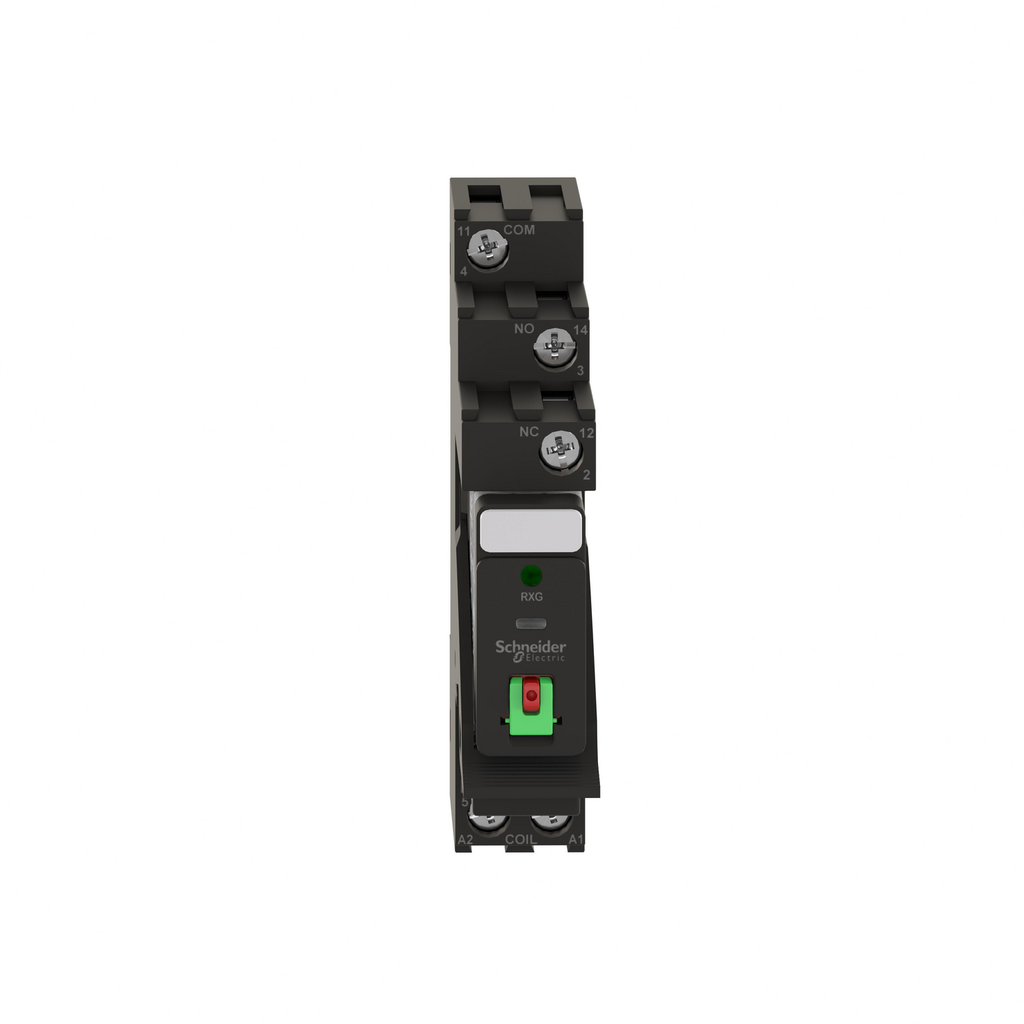

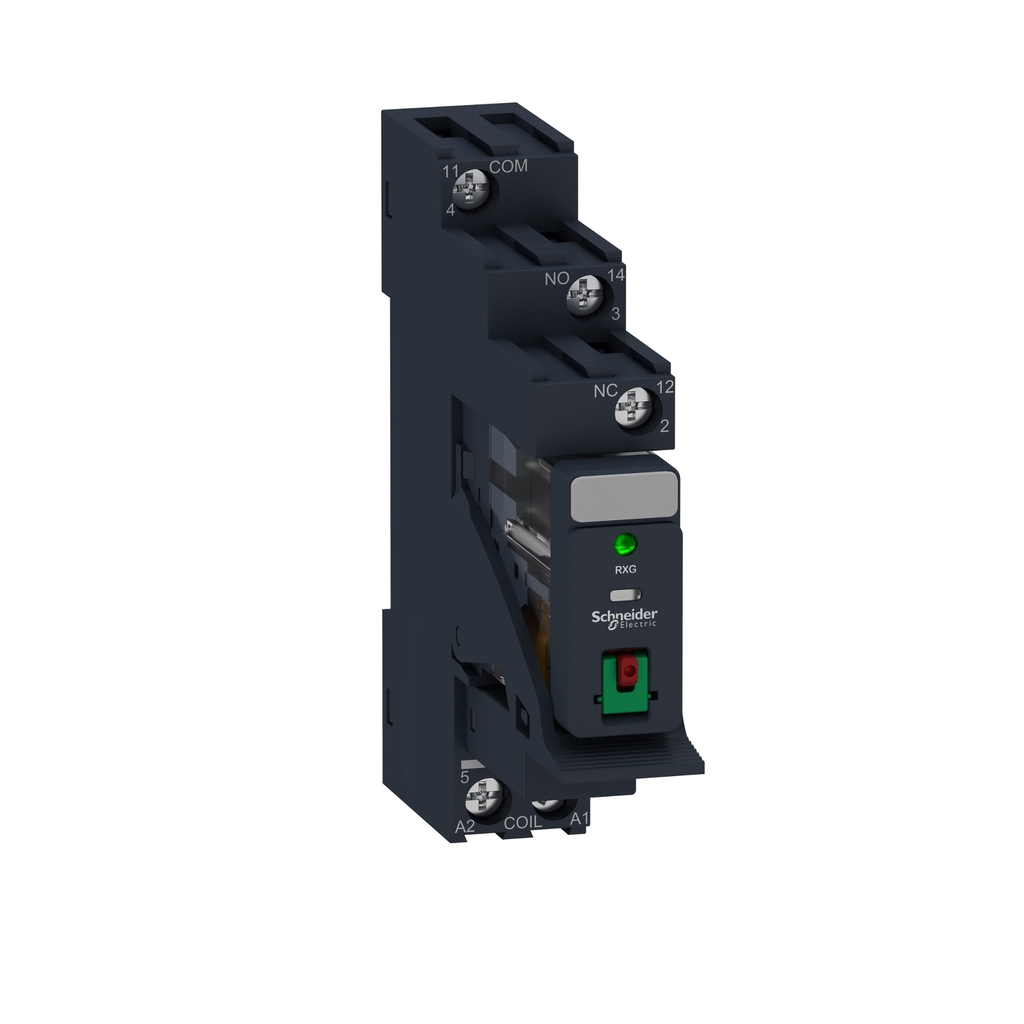

This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled standard cover relay mounted on a separate contact terminal socket with integrated clamp and a varistor protection module. This is a 10A, 24Vac, 1 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The standard cover relay offers single-step lockable test button and LED indicator. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.059Kg. Its design fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. The RXG plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 1 CO (10A) and 2 CO (5A) contacts.
QTY
  • Product Description
  • Specifications
This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled standard cover relay mounted on a separate contact terminal socket with integrated clamp and a varistor protection module. This is a 10A, 24Vac, 1 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The standard cover relay offers single-step lockable test button and LED indicator. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.059Kg. Its design fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. The RXG plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 1 CO (10A) and 2 CO (5A) contacts.
  • Environment
    • Product Certifications : EAC || CSA || UL || CE || DNV-GL
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : IEC 61810-1 || CSA C22.2 No 14 || UL 508 || IEC 61984
    • Vibration Resistance : 3 gn +/- 1.5 mm 10-150 Hz)in operation || 5 gn +/- 1.5 mm 10-150 Hz)not in operation
    • Relative Humidity : 10-85 %
    • Ambient Air Temperature For Storage : -40-85 °C
    • Ip Degree Of Protection : IP20
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1406006EN
    • Toxic Heavy Metal Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Utilisation Coefficient : 20 %
    • Maximum Switching Capacity : 2500 VA AC || 300 W DC
    • Safety Reliability Data : B10d = 100000
    • [Uc] Control Circuit Voltage : 24 V AC 50/60 Hz
    • Insulation Resistance : 1000 MOhm at 500 V DC
    • Operating Rate : <= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
    • Torque Value : 0.8 N.m || 7.0 lbf.in
    • Protection Category : RT I
    • Test Levels : level A group mounting
    • Contacts Material : silver alloy (AgSnO2In2O3)
    • Pollution Degree : 2
    • Shock Resistance : 20 gn in operation || 100 gn not in operation
    • Dielectric Strength : 1000 V AC between contacts with micro disconnection || 1300 V between terminals and base with basic insulation || 3000 V between terminals and LTB area with basic insulation || 5000 V AC between coil and contact with reinforced insulation
    • Status Led : with
    • Net Weight : 0.058 kg
    • Colour Of Cover : transparent
    • Maximum Switching Voltage : 250 V
    • Control Type : lockable test button
    • Device Presentation : complete product
    • Connections - Terminals : connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end || connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end || connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end || connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
    • Average Coil Consumption : 0.70 VA AC 50-60 Hz
    • [Ie] Rated Operational Current : 10 A 30 V DC) UL || 10 A 30 V DC) IEC || 10 A 250 V AC) IEC || 10 A 250 V AC) UL
    • [Ui] Rated Insulation Voltage : 250 V IEC
    • Electrical Durability : 100000 cycles resistive
    • Mechanical Durability : 10000000 cycles
    • Resistance : 260 Ohm +/- 10 %
    • Mounting Position : any position
    • Overvoltage Category : III
    • Load Current : 10 A
    • Drop-Out Voltage Threshold : >= 0.3 Uc AC
    • Minimum Switching Capacity : 500 mW at 100 mA, 5 V DC
  • Specifications
    • Range Of Product : Harmony Electromechanical Relays
    • Product Or Component Type : pre-assembled plug-in relay with socket
    • Series Name : interface relay
    • Contacts Type And Composition : 1 C/O
    • Device Short Name : RXG
    • [Ithe] Conventional Enclosed Thermal Current : 10 A
