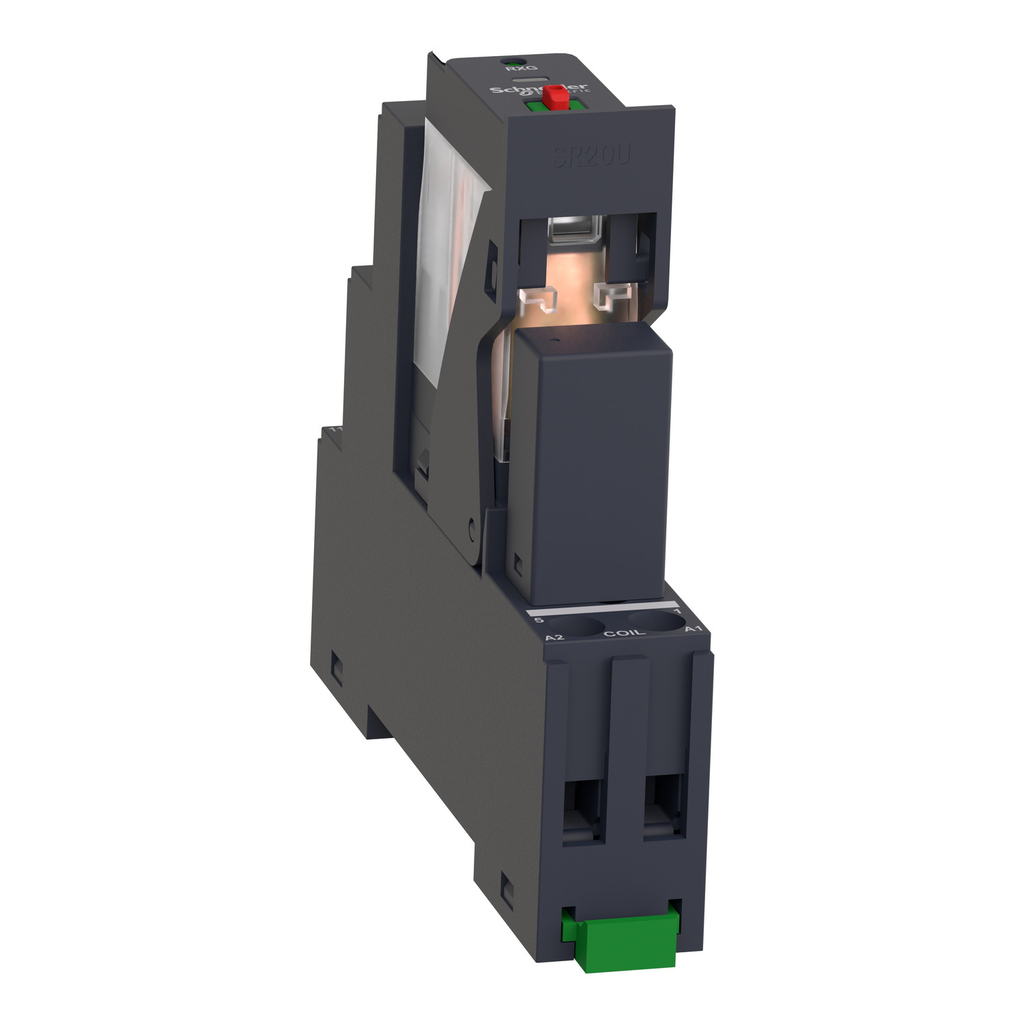

interface plug in relay, Harmony Electromechanical Relays, pre assembled, 10A, 1CO, with LED, lockable test but to n, 230V AC

interface plug in relay, Harmony Electromechanical Relays, pre assembled, 10A, 1CO, with LED, lockable test but to n, 230V AC

SQDRXG12P7PV SQDRXG12P7PV
0.00 / EA
http://schema.org/OutOfStock
  • Certifications: CE, CSA, DNV-GL, EAC, UL
  • Contact Material: Silver Alloy
  • Net Weight: 0.058 kg
  • Operating Cycles: <= 1800 Cycles/hour Under Load, <= 18000 Cycles/hour No-load
  • Resistance: 15 %, 23500 ohm
  • Standard: CSA C22.2 No 14, IEC 61810-1, IEC 61984, UL 508
  • Storage Temperature: -40-85 °C
  • Warranty Length: 18 mth
This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled standard cover relay mounted on a separate contact terminal socket with integrated clamp and a varistor protection module. This is a 10A, 230Vac, 1 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The standard cover relay offers single-step lockable test button and LED indicator. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.059Kg. Its design fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. The RXG plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 1 CO (10A) and 2 CO (5A) contacts.
QTY
  • Product Description
  • Specifications
This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled standard cover relay mounted on a separate contact terminal socket with integrated clamp and a varistor protection module. This is a 10A, 230Vac, 1 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The standard cover relay offers single-step lockable test button and LED indicator. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.059Kg. Its design fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. The RXG plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 1 CO (10A) and 2 CO (5A) contacts.
  • Environment
    • Product Certifications : EAC || CSA || UL || CE || DNV-GL
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : IEC 61810-1 || CSA C22.2 No 14 || UL 508 || IEC 61984
    • Vibration Resistance : 3 gn +/- 1.5 mm 10-150 Hz)in operation || 5 gn +/- 1.5 mm 10-150 Hz)not in operation
    • Relative Humidity : 10-85 %
    • Ambient Air Temperature For Storage : -40-85 °C
    • Ip Degree Of Protection : IP20
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1406006EN
    • Toxic Heavy Metal Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Utilisation Coefficient : 20 %
    • Maximum Switching Capacity : 2500 VA AC || 300 W DC
    • Safety Reliability Data : B10d = 100000
    • [Uc] Control Circuit Voltage : 230 V AC 50/60 Hz
    • Insulation Resistance : 1000 MOhm at 500 V DC
    • Operating Rate : <= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
    • Torque Value : 0.8 N.m || 7.0 lbf.in
    • Protection Category : RT I
    • Test Levels : level A group mounting
    • Contacts Material : silver alloy (AgSnO2In2O3)
    • Pollution Degree : 2
    • Shock Resistance : 20 gn in operation || 100 gn not in operation
    • Dielectric Strength : 1000 V AC between contacts with micro disconnection || 1300 V between terminals and base with basic insulation || 3000 V between terminals and LTB area with basic insulation || 5000 V AC between coil and contact with reinforced insulation
    • Status Led : with
    • Net Weight : 0.058 kg
    • Colour Of Cover : transparent
    • Maximum Switching Voltage : 250 V
    • Control Type : lockable test button
    • Device Presentation : complete product
    • Connections - Terminals : connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end || connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end || connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end || connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
    • Average Coil Consumption : 0.96 VA AC 50-60 Hz
    • [Ie] Rated Operational Current : 10 A 30 V DC) UL || 10 A 30 V DC) IEC || 10 A 250 V AC) IEC || 10 A 250 V AC) UL
    • [Ui] Rated Insulation Voltage : 250 V IEC
    • Electrical Durability : 100000 cycles resistive
    • Mechanical Durability : 10000000 cycles
    • Resistance : 23500 Ohm +/- 15 %
    • Mounting Position : any position
    • Overvoltage Category : III
    • Load Current : 10 A
    • Drop-Out Voltage Threshold : >= 0.3 Uc AC
    • Minimum Switching Capacity : 500 mW at 100 mA, 5 V DC
  • Specifications
    • Range Of Product : Harmony Electromechanical Relays
    • Product Or Component Type : pre-assembled plug-in relay with socket
    • Series Name : interface relay
    • Contacts Type And Composition : 1 C/O
    • Device Short Name : RXG
    • [Ithe] Conventional Enclosed Thermal Current : 10 A
