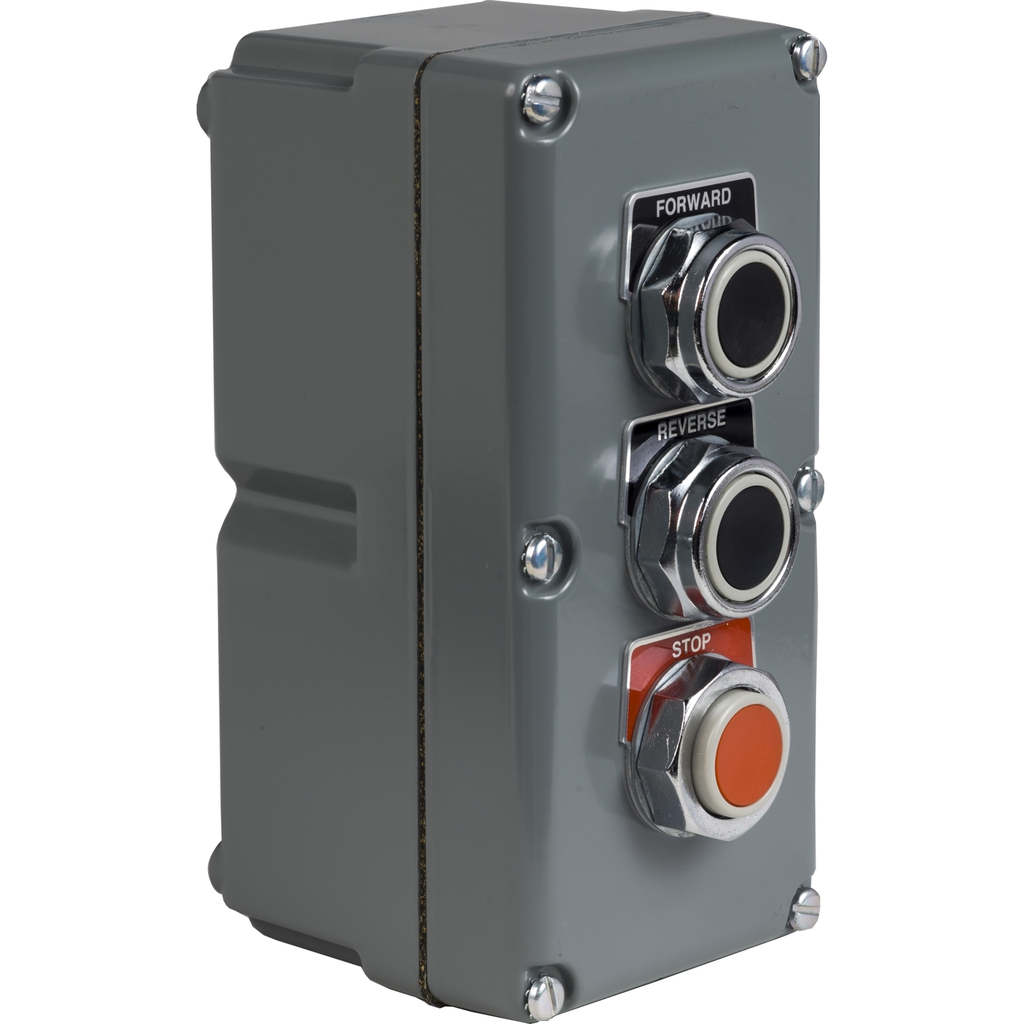

CONTROL STATION + OPERATORS

Name: CONTROL STATION + OPERATORS
Brand: SQUARE D
SKU: SQD9001KYK31
Price: 528.62 USD
Availability: OutOfStock

SQD9001KYK31 9001KYK31 785901513414

528.62 / EACH

http://schema.org/OutOfStock

Enclosure Material: Die Cast Zinc Alloy Gray
Warranty Length: 18 mth

30 mm heavy duty chromium plated metal push buttons, selector switches, pilot lights, and specialty operators

QTY

Features
Specifications

Prop 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Physical Attributes

Color Of Cover : grey
Housing Color : grey

Complementary Attributes

Ie Rated Operational Current Ac : 10 A

Important Information Attributes

Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation Id : COMMERCIAL, INDUSTRIAL
Market Segmentation : Commercial, Industrial
Provided Equipment : contact block, legend plate
Medium Desc : CONTROL STATION + OPERATORS
Local Data Status : Publishable
Local Publishable Date : 2026-01-12
Global Commercial Status : Commercialised
Return Indicator : N
Stocking Flag : Y
Legacy Weee Scope : In
Scope Perimeter : Outside of Europe
Eoli Availability Display : Yes
End Of Life Doc Ref : ENVEOLI121027EN
Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
Rohs Eur In Scope : No
Rohs Eur Status : Compliant
Rohs Eur Full Compliance Status : Compliant
China Rohs In Scope : Yes
With Recycled Cardboard : Yes
Without Single Use Plastic : Yes
Product Contributes To Saved And Avoided Emissions : No
Function Option Id : STANDARD
Function Option : Standard
Product Kit Identifier : N
Contact Block Name : KA1
Control Station Composition : 2 push-buttons 3 NO + 3 NC FORWARD-REVERSE-STOP
Dc Control Voltage : 125-600 V
Device Short Name : KY
Enclosure Cubicle Description : surface mounting
Enclosure Material : die cast zinc alloy Gray
Housing Material : metal
Product Availability : Non-Stock - Not normally stocked in distribution facility
Product Or Component Type : complete control station
Range Of Product : Harmony 9001K
Returnability : No
Sustainable Packaging : Yes
Ac Control Voltage 50 Hz : 125-600 V
Ac Control Voltage 60 Hz : 125-600 V
Color Of Cover : grey
Housing Color : grey
Connections Terminals : screw-clamp terminals
Ie Rated Operational Current Ac : 10 A
Emergency Power Off Epo : no
Pep Code : ENVPEP1210027EN

Environment Attributes Main

Take Back : Nej
Reach Free Shvc : Yes
Recycled Metal Content At Cr Level : 0 %
China Rohs Regulation : X
Toxic Heavy Metal Free : Yes
Mercury Free : Yes
Circularity Profile : ENVEOLI121027EN
Environmental Disclosure : ENVPEP1210027EN
Eu Rohs Directive : Compliant
Ip Degree Of Protection : IP66
Nema Degree Of Protection : NEMA 4/13
Packaging Made With Recycled Cardboard : Yes
Packaging Without Single Use Plastic : Yes
Reach Free Of Svhc : Yes
Reach Regulation : Free of Substances of Very High Concern above the threshold
Pep Code : ENVPEP1210027EN

General Attributes

Provided Equipment : contact block, legend plate
Product Or Component Type : complete control station
Range Of Product : Harmony 9001K

ETIM

ETIM 8 : EC000225
ETIM 9 : EC000225

Contractual Warranty Attributes

Warranty Period : 18 months
Warranty : 18 months
