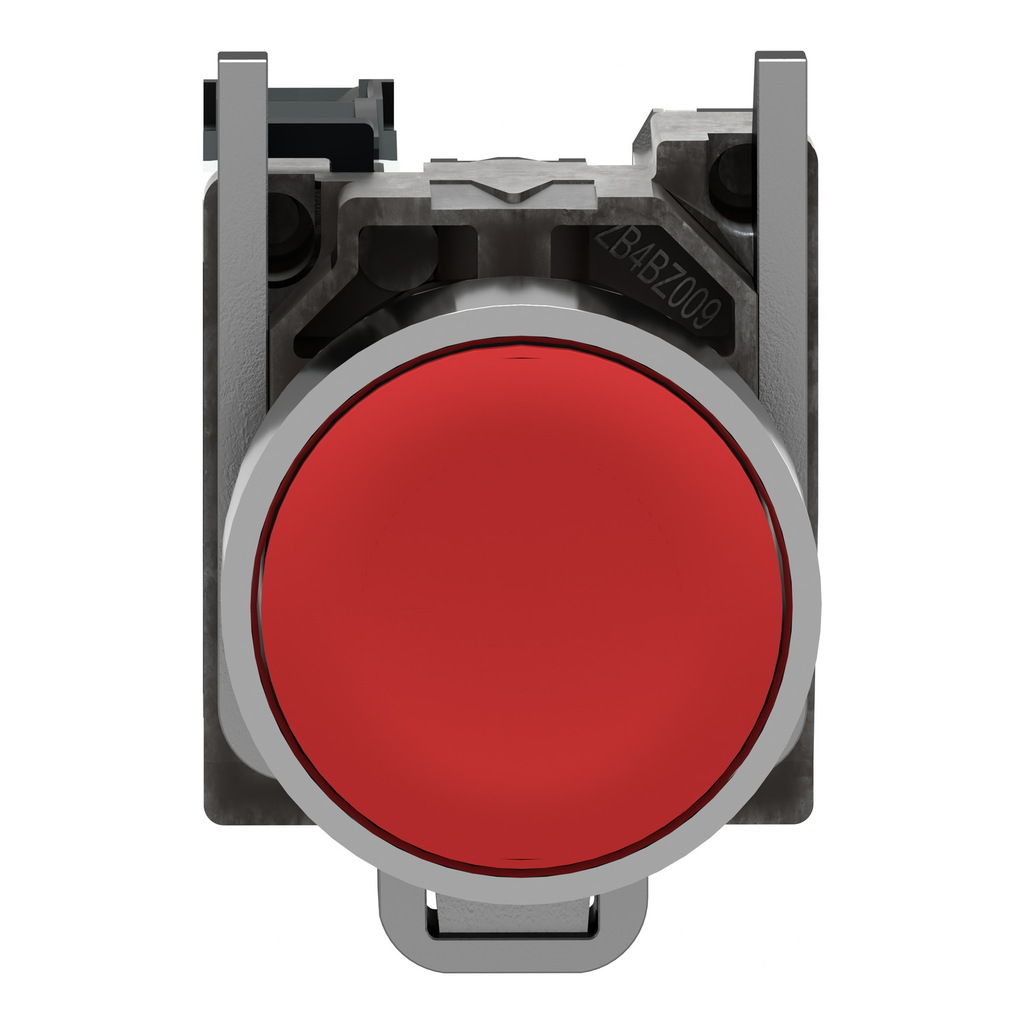

Harmony, 22mm push button, red flush, spring return, 1 NO, unmarked

SQD XB4BA42 PUSHBUTTON OPERATO

SQDXB4BA42 XB4BA42 785901380481
36.56 / EACH
  • Bezel Material: Chromium Plated Metal
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • Contact Material: Silver Alloy
  • Depth: 52 mm
  • Height: 47 mm
  • Net Weight: 0.08 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
  • Width: 30 mm
This Harmony XB4 modular red push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
  • Product Description
  • Specifications
This Harmony XB4 modular red push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
  • Complementary
    • [Ith] Conventional Free Air Thermal Current : 10 A EN/IEC 60947-5-1
    • [Ie] Rated Operational Current : 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Operating Travel : 1.5 mm NC changing electrical state) || 4.3 mm total travel)
    • Mechanical Durability : 10000000 cycles
    • Shape Of Screw Head : cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
    • Height : 47 mm
    • [Uimp] Rated Impulse Withstand Voltage : 6 kV EN/IEC 60947-1
    • Contacts Material : silver alloy (Ag/Ni)
    • Electrical Reliability : λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
    • Depth : 52 mm
    • Electrical Durability : 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
    • Device Presentation : complete product
    • Width : 30 mm
    • Operating Force : 3.5 N NC changing electrical state
    • Net Weight : 0.08 kg
    • Short-Circuit Protection : 10 A cartridge fuse gG EN/IEC 60947-5-1
    • Positive Opening : with EN/IEC 60947-5-1 appendix K
    • Terminals Description Iso N°1 : (21-22)NC
    • Tightening Torque : 0.8-1.2 N.m EN 60947-1
    • Contacts Usage : standard contacts
    • [Ui] Rated Insulation Voltage : 600 V 3)EN/IEC 60947-1
  • Contact Operation : slow-break
  • Product Or Component Type : push-button
  • Bezel Material : chromium plated metal
  • Sale Per Indivisible Quantity : 1
  • Mounting Diameter : 22 mm
  • Operator Profile : red flush, unmarked
  • Head Type : standard
  • Shape Of Signaling Unit Head : round
  • Fixing Collar Material : zamak
  • Contacts Type And Composition : 1 NC
  • Device Short Name : XB4
  • Range Of Product : Harmony XB4
  • Type Of Operator : spring return
  • Connections - Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
  • Environment
    • Ambient Air Temperature For Operation : -40-70 °C
    • Product Certifications : LROS (Lloyds register of shipping) || GL || BV || CSA || DNV || UL Listed
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
    • Standards : EN/IEC 60947-5-5 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-1 || JIS C8201-1
    • Overvoltage Category : class I IEC 60536
    • Ambient Air Temperature For Storage : -40-70 °C
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Protective Treatment : TH
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Ik Degree Of Protection : IK06 IEC 50102
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Toxic Heavy Metal Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : X
    • Rohs Exemption Information : Yes
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Mercury Free : Yes
    • Sustainable Offer Status : Green Premium product
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Environmental Disclosure : ENVPEP1808008EN
    • Circularity Profile : ENVEOLI1808008EN
