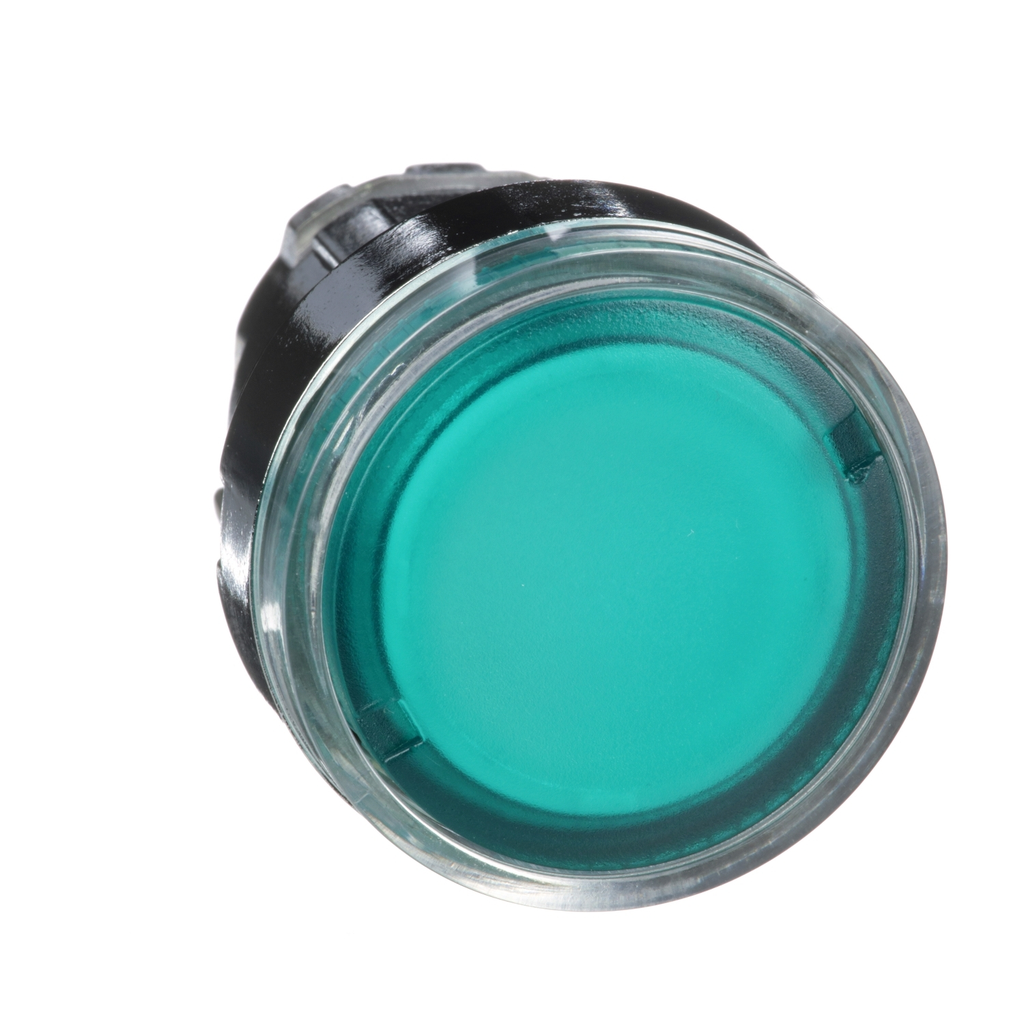

Harmony, 22mm Push Button, illuminated pushbutton head, flush, spring return, green, for BA9s bulb

Harmony, 22mm Push Button, illuminated pushbutton head, flush, spring return, green, for BA9s bulb

SQDZB4BW33 ZB4BW33 3389110889703
19.99 / EA
http://schema.org/OutOfStock
  • Bezel Material: Chromium Plated Metal, Chromium Plated Metal
  • Head Type: Standard
  • Warranty Length: 18 mth
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
QTY
  • Specifications
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=ZB4BW33_2CAD, https://download.schneider-electric.com/files?p_Doc_Ref=ZB4BW33-3d
  • Physical Attributes
    • Cad Overall Depth : 32 mm
    • Cad Overall Height : 29 mm
    • Cad Overall Width : 29 mm
    • Cap Operator Or Lens Color : green
  • Conformance Attributes
    • Product Certifications : CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV
    • Standards : UL 508, IEC 60947-1, JIS C8201-5-1, IEC 60947-5-5, CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Bezel Material : chromium plated metal, chromium plated metal
    • Customizable : 0, no
    • Electrical Composition Code : M7 6 single front mounting BA 9s, M8 6 single and double front mounting BA 9s, M9 2 single front mounting BA 9s and transformer
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Carbon Footprint Of The Distribution Phase A4 : 0.0043189474, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0449815789
    • Carbon Footprint Of The Installation Phase A5 : 0.0039694737, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.2 kg CO2 eq., 0.2032026316
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
    • Medium Desc : Harmony, 22mm Push Button, illuminated pushbutton head, flush, spring return, green, for BA9s bulb
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : Commercialised
    • Html Descr : Harmony XB4/ZB4 Green flush illuminated pushbuttonMounting diameter : 0.87 in (22 mm).Type of operator : Spring return.Operator profile:Green flush unmarked.Operator additional information : With plain lens.
    • Return Indicator : Y
    • Stocking Flag : N
    • Manufacturer : Schneider Electric
    • Legacy Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1808008EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Average Percentage Of Recycled Metal Content : 21 %
    • Average Percentage Of Recycled Plastic Content : 37 %
    • Compatibility Code : ZB4
    • Device Short Name : ZB4
    • Group Of Product : flush push BA9s
    • Head Type : standard
    • Main Group : illum push-button
    • Marking : unmarked
    • Mechanical Durability : 10000000 cycles
    • Mounting Diameter : 22.5 mm
    • Operator Additional Information : with plain lens
    • Operator Profile : green flush, unmarked
    • Overvoltage Category : class I conforming to IEC 60536
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : head for illuminated push-button
    • Protective Treatment : TH
    • Range Of Product : Harmony XB4
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Returnability : Yes
    • Shape Of Signaling Unit Head : round
    • Software Version : v5.9.4
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 0.3 kg CO2 eq.
    • Type Of Operator : spring return
    • Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Cap Operator Or Lens Color : green
    • Operator Add Information : with plain lens
    • X C Product : flush push BA9s
    • Pep Code : ENVPEP1808008_V2-EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-08-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : Harmony XB4 illuminated modular green push button operates with a spring return mechanism uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It has power consumption of 0.436 W with use rate of 71% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
    • Functional Unit Unit : Unit
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
  • Environment Attributes Main
    • Ip Degree Of Protection : IP66 IEC 60529, IP67, IP69, IP69K
    • Nema Degree Of Protection : UL type 4X/13, NEMA 13, NEMA 4X
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 21 %
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 0.2564726316
    • Ambient Air Temperature For Operation : -40-55 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Circularity Profile : ENVEOLI1808008EN
    • Environmental Disclosure : ENVPEP1808008_V2-EN
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Product Compatibility : BA 9s
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1808008_V2-EN
    • Pep Verification Date : 2023-08-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : head for illuminated push-button
    • Range Of Product : Harmony XB4
  • ETIM
    • ETIM 8 : EC000221
    • ETIM 9 : EC000221
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Overview Attributes
    • Device Presentation : basic sub-assemblies
