SQUARE D

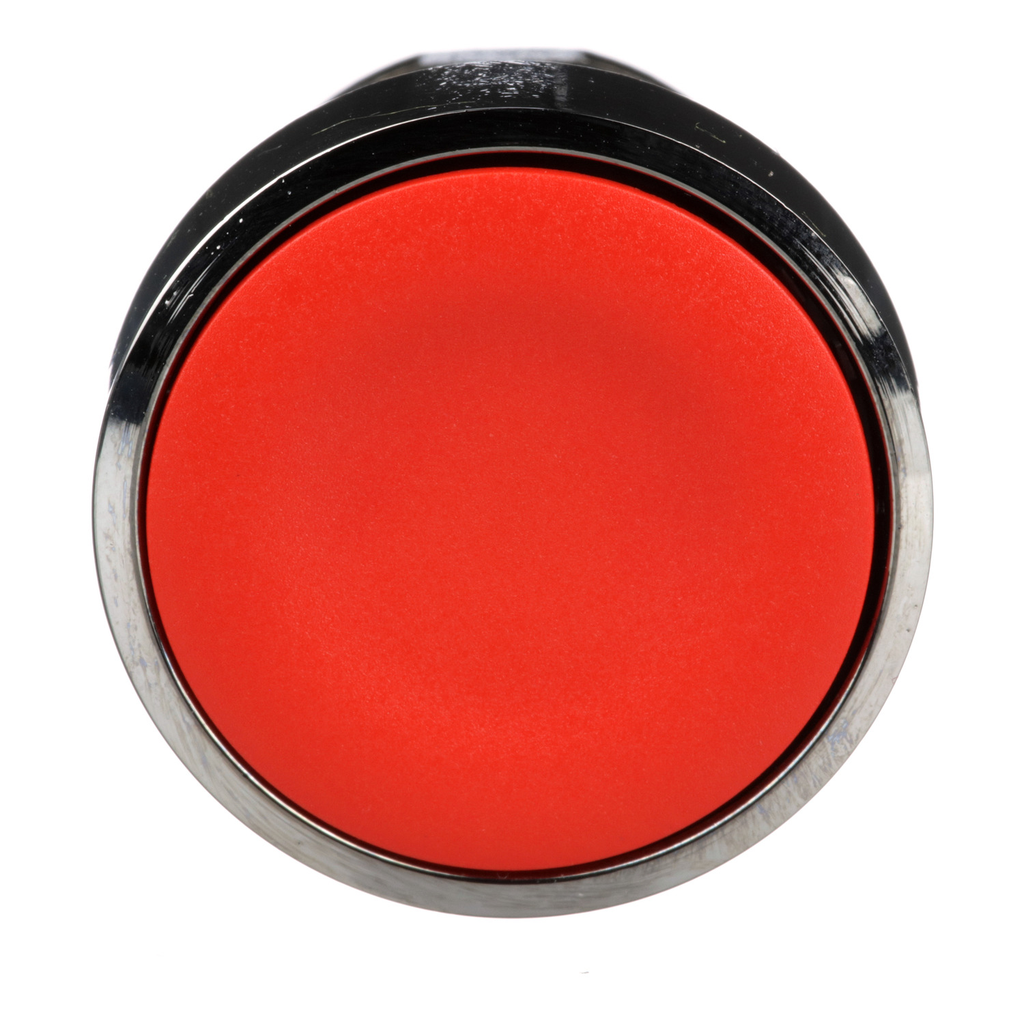

Harmony, 22mm Push Button, flush push button head, spring return, red, unmarked

PUSHBUTTON HEAD-RED 22MM

SQDZB4BA4 ZB4BA4 785901353751
12.35 / EACH
  • Bezel Material: Chromium Plated Metal
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This Harmony XB4, red button head operates with a spring return mechanism. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
  • Product Description
  • Specifications
This Harmony XB4, red button head operates with a spring return mechanism. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
  • Contractual warranty
    • Warranty : 18 months
  • Sale Per Indivisible Quantity : 1
  • Bezel Material : chromium plated metal
  • Operator Profile : red flush, unmarked
  • Head Type : standard
  • Range Of Product : Harmony XB4
  • Mounting Diameter : 22 mm
  • Shape Of Signaling Unit Head : round
  • Device Short Name : ZB4
  • Type Of Operator : spring return
  • Product Or Component Type : head for non-illuminated push-button
  • Complementary
    • Cad Overall Width : 29 mm
    • Cad Overall Depth : 28 mm
    • Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
    • Device Presentation : basic element
    • Mechanical Durability : 10000000 cycles
    • Cad Overall Height : 29 mm
  • Offer Sustainability
    • Sustainable Offer Status : Green Premium product
    • Mercury Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI1808008EN
    • Environmental Disclosure : ENVPEP1808008EN
    • Reach Free Of Svhc : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Rohs Exemption Information : Yes
    • China Rohs Regulation : X
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Toxic Heavy Metal Free : Yes
  • Environment
    • Ik Degree Of Protection : IK06 IEC 50102
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Ambient Air Temperature For Storage : -40-70 °C
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Protective Treatment : TH
    • Overvoltage Category : class I IEC 60536
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Ambient Air Temperature For Operation : -40-70 °C
    • Product Certifications : GL || DNV || LROS (Lloyds register of shipping) || UL Listed || CSA || BV
    • Standards : CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-5 || UL 508 || JIS C8201-1
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
