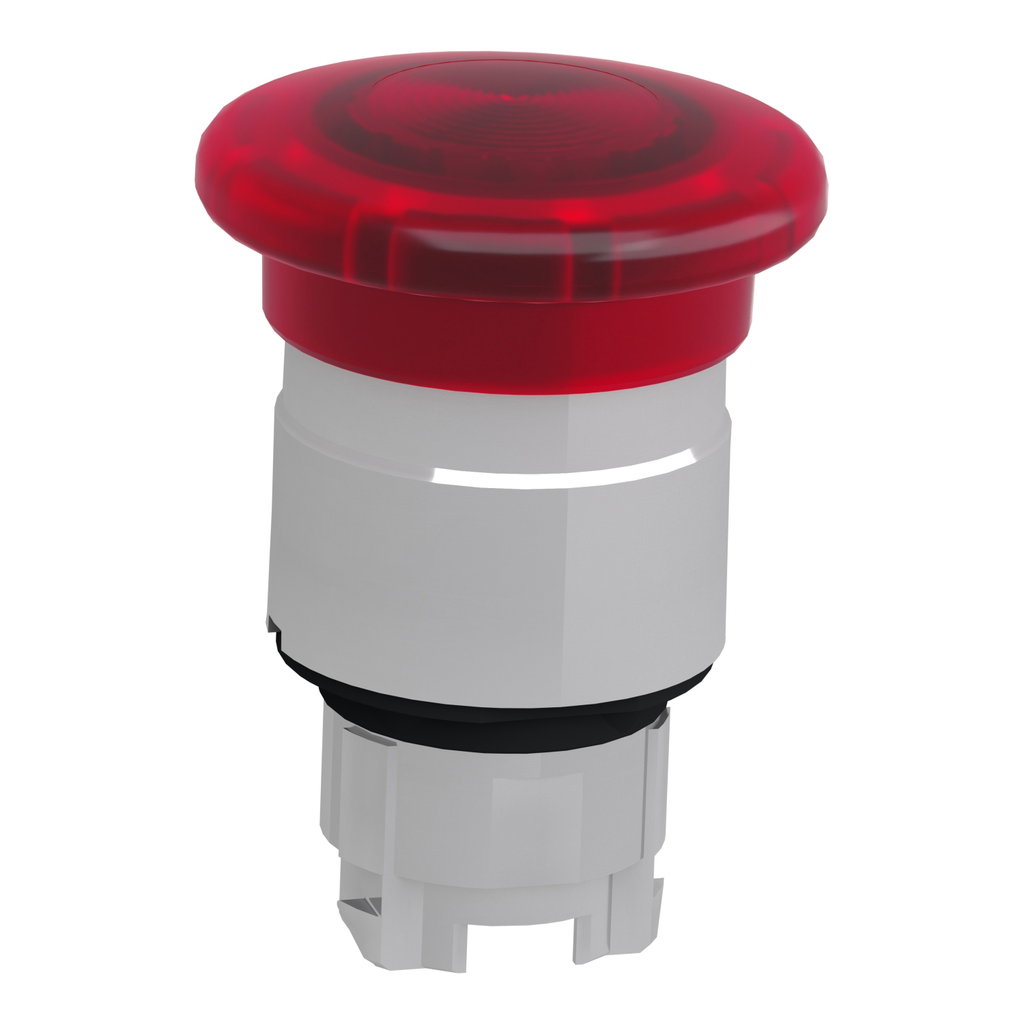

Harmony, 22mm Push Button, emergency stop push button head, latching push pull, red, 40 mm mushroom, for integral LED

Harmony, 22mm Push Button, emergency stop push button head, latching push pull, red, 40 mm mushroom, for integral LED

SQDZB4BW643 ZB4BW643 785901666615
43.68 / EACH
  • Bezel Material: Chromium Plated Metal
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • Net Weight: 0.051 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, IEC 60364-5-53, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This illuminated 40mm mushroom shape push button head for integral LED is part of of the range diameter 22mm, Harmony XB4. It is ideal when quick actions are required. It fits for a process or machine to function correctly or where operator movements require highest ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its illuminated head. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
  • Product Description
  • Specifications
This illuminated 40mm mushroom shape push button head for integral LED is part of of the range diameter 22mm, Harmony XB4. It is ideal when quick actions are required. It fits for a process or machine to function correctly or where operator movements require highest ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its illuminated head. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
  • Environment
    • Protective Treatment : TH
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Ambient Air Temperature For Storage : -40-70 °C
    • Ik Degree Of Protection : IK05 EN 50102
    • Product Certifications : CSA || GL || UL Listed || BV || LROS (Lloyds register of shipping) || DNV
    • Ambient Air Temperature For Operation : -40-70 °C
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Overvoltage Category : class I IEC 60536
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Standards : JIS C8201-5-1 || IEC 60364-5-53 || EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || CSA C22.2 No 14 || UL 508 || JIS C8201-1
    • Ip Degree Of Protection : IP66 IEC 60529 || IP69 || IP69K
  • Product Or Component Type : head for illuminated emergency switching off push-button
  • Range Of Product : Harmony XB4
  • Device Short Name : ZB4
  • Reset : push-pull
  • Product Compatibility : integral LED
  • Type Of Operator : mechanical latching
  • Sale Per Indivisible Quantity : 1
  • Mounting Diameter : 22 mm
  • Bezel Material : chromium plated metal
  • Shape Of Signaling Unit Head : round
  • Operator Profile : red mushroom Ø 40 mm, unmarked
  • Head Type : standard
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : X
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Circularity Profile : ENVEOLI1808008EN
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Sustainable Offer Status : Green Premium product
    • Mercury Free : Yes
    • Reach Free Of Svhc : Yes
    • Rohs Exemption Information : Yes
    • Environmental Disclosure : ENVPEP1808008EN
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Complementary
    • Cad Overall Depth : 53 mm
    • Cad Overall Width : 40 mm
    • Electrical Composition Code : M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || M3 4 single front mounting integral LED || M4 4 single and double front mounting integral LED
    • Device Presentation : basic sub-assemblies
    • Mechanical Durability : 500000 cycles
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Cad Overall Height : 40 mm
    • Net Weight : 0.051 kg
