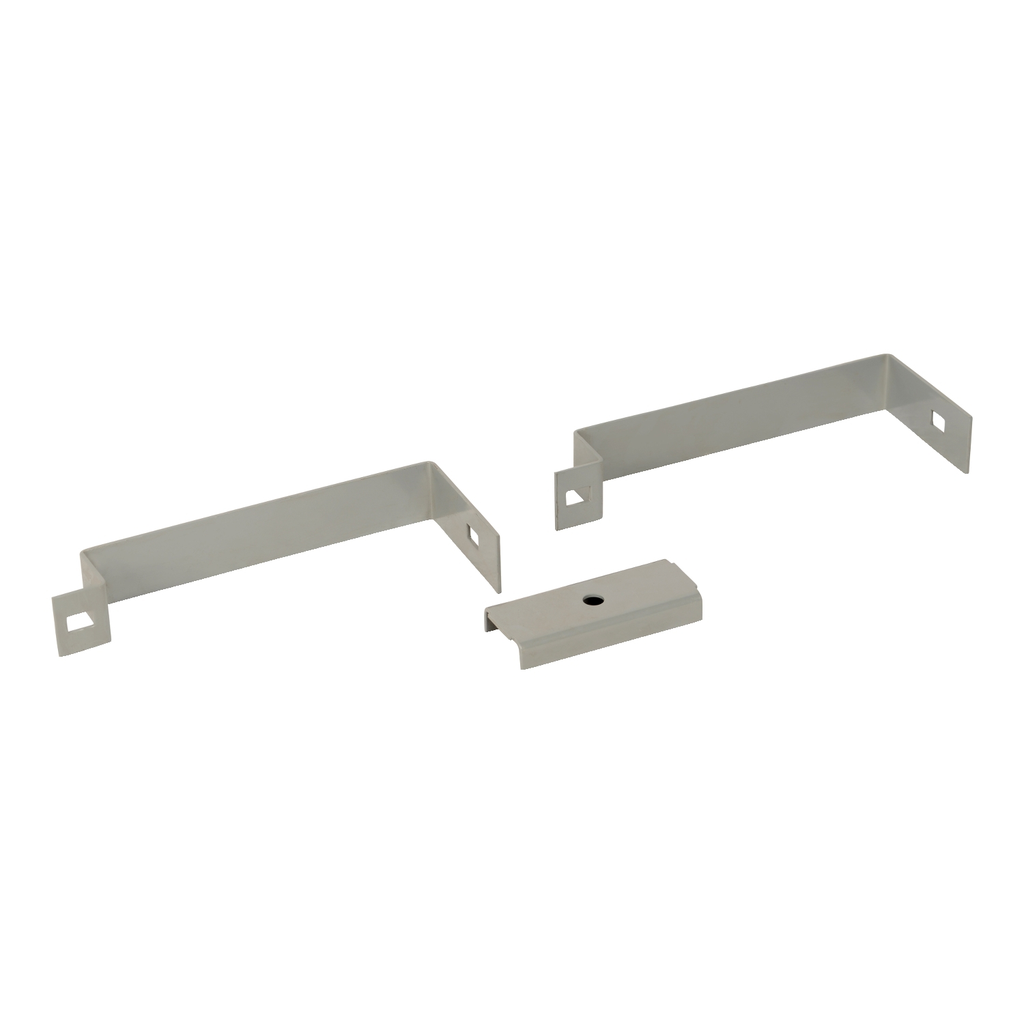

Hanger, I-Line Busway, max 1600A rated, edgewise mounting, horizontal installation, aluminum

BUSWAY HANGER, EDGEWISE"

SQDHF88E HF88E 785901812791
150.25 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Hanger, I-Line Busway, max 1600A rated, edgewise mounting, horizontal installation, aluminum-1
  • Height: 13.86 in
  • Line Rated Current: 1600-1600 A
  • Mounting Type: Edgewise
  • Standard: CSA C22.2 No 27:1994, IEC 61439-6, UL 857
  • Warranty Length: 18 mth
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line plug-in busway has options from 225A to 600A with aluminum or copper conductors. These busways are constructed in three-pole and four-pole neutral configurations for system voltages of 600 volts and are rated to allow 100% of the current to flow. This hanger is rated 1600A for Al, that is ideal for commercial or industrial applications. Indoor horizontal busway requires one hanger for every 10 feet of busway. Vertical indoor busway requires one hanger for every 16 feet. Outdoor feeder busway requires one hanger for every 5 feet in horizontal mounting and one hanger for every 10 feet in vertical mounting. This hanger can be used with aluminum busways. This unit is for horizontal edgewise mounting. This hanger meets the UL 857 standard, the CSA C22.2 No 27 standard and the IEC 61439-6 standard.
QTY
  • Specifications
  • Environment
    • Standards : UL 857 || CSA C22.2 No 27:1994 || IEC 61439-6
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1407014EN
    • Sustainable Offer Status : Green Premium product
    • Pvc Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Compliant
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
  • Complementary
    • Installation Direction : horizontal
    • Height : 13.86 in
    • Device Mounting : edgewise
    • Line Rated Current : 1600-1600 A aluminium
  • Specifications
    • Height : 13.86 in
    • Range Of Product : I-Line
    • Product Or Component Type : hanger
