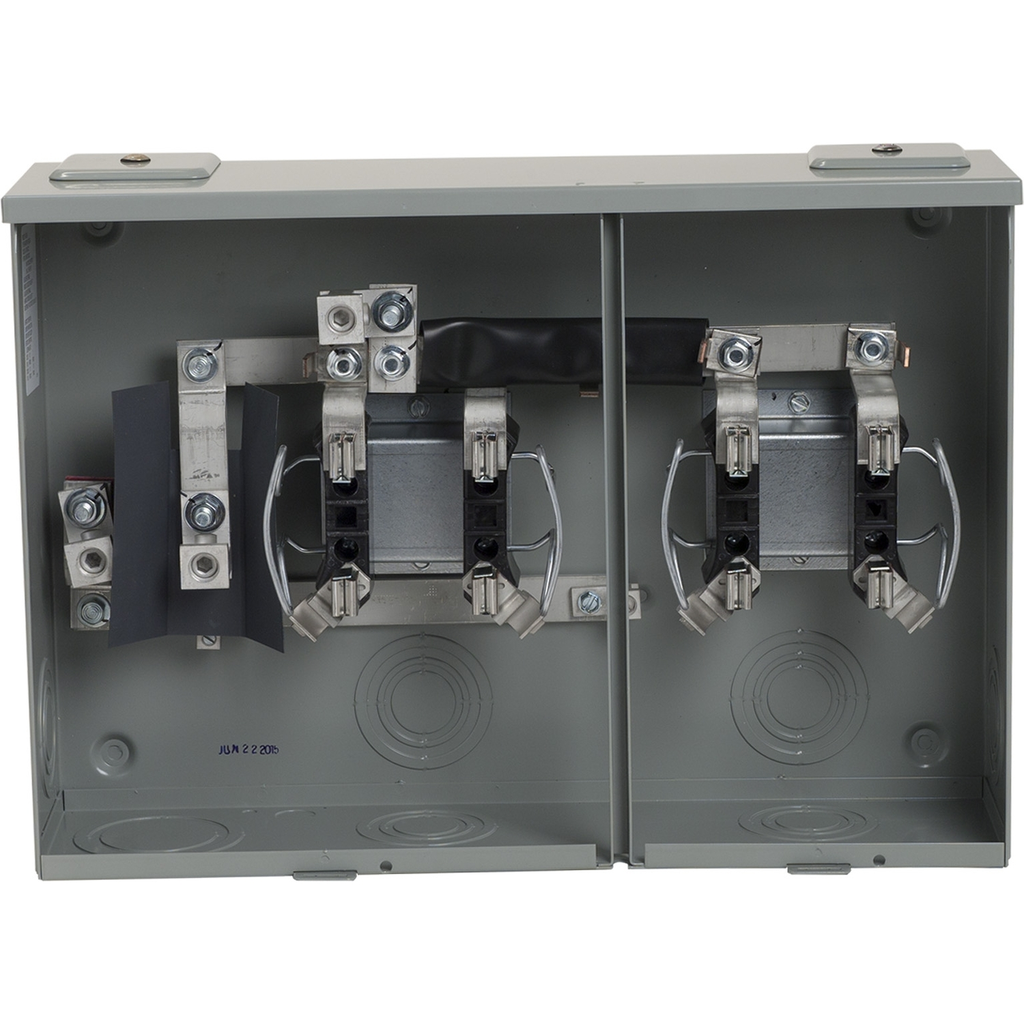

Meter socket, horizontal, ringless, 2 position, 1 phase, 3 wire, 4 jaws, horn bypass, OH/UG, 100A

HORIZONTAL METER RINGLESS 100A

SQDUHT2R1421C UHT2R1421C 785901211662
475.48 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Meter socket, horizontal, ringless, 2 position, 1 phase, 3 wire, 4 jaws, horn bypass, OH/UG, 100A-1
  • Country of Origin: USA
  • Enclosure Material: Steel
  • Number of Jaws: 4 Without Jaw Release
  • Warranty Length: 18 mth
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL Listed || ANSI
    • Nema Degree Of Protection : NEMA 3R
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Take-Back : No
    • Sustainable Packaging : No
    • Eu Rohs Directive : Under investigation
  • Complementary
    • Service Feed Location : OH || UG
    • Meter Socket Rated Current : 100 A
    • Device Mounting : surface
    • [Ue] Rated Operational Voltage : <= 600 V AC
    • Bypass Type : horn bypass
    • Electrical Connection : studs 0.375" hex
    • Phase : 1 phase
    • Enclosure Material : steel
    • Awg Gauge : AWG 6...250 kcmilline side || AWG 8...AWG 2/0service ground
    • Wiring Configuration : 3-wire
    • Number Of Jaws : 4 without jaw release
  • Specifications
    • Country of Origin : United States
    • Product Or Component Type : Meter Socket
    • Hub Type : A ACP closing plate
    • Meter Socket Type : ringless
