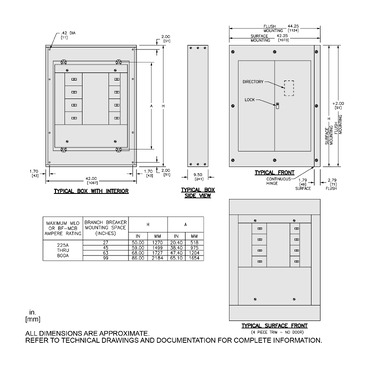

Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. Service entrance panelboards meeting the requirements of CSA are available in Canada factory-assembled only. I-Line circuit breaker panelboards are available as 400–1200A main lugs only and 100–1200A main circuit breakers. This HCP I-Line panelboard enclosure has a NEMA 1 degree of protection. This enclosure has current ratings of 400A, 800A & 1200A. Dimensions for this enclosure are 2184 mm (H),1067 mm (W),241 mm (D). This product comes with an 18 month warranty.

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Enclosure Nominal Height : 2184 mm
• Enclosure Nominal Width : 1067 mm
• Conformance Attributes
• Standards : CSA, UL
• Complementary Attributes
• Line Rated Current : 1200 A, 400 A, 800 A, 600 A
• Important Information Attributes
• Carbon Footprint Of The Distribution Phase A4 : 22.32053469550933, 22 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 106 kg CO2 eq., 106.0730887431517
• Carbon Footprint Of The Installation Phase A5 : 0.1266088301194154, 0.1 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 412 kg CO2 eq., 411.6776011489513
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Boxes : HC2886WP, HC4286WP
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-13
• Legacy WEEE Scope : In
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Device Application : panelboard
• Device Short Name : HCP
• Halogen Free Status : Halogen free product
• Package Weight Lbs : 73.935 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : enclosure
• Range Of Product : I-Line
• Returnability : Yes
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 540 kg CO2 eq.
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2509035EN
• Pep Verification Date : 2025-10-15
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Functional Unit Description : Accommodate and protect control, command and protection devices in a single panelboard enclosure/box (2184.4 mm x 1066.8 mm x241.3 mm) with rated current In = 1200A , degree of protection IP = IP30 (NEMA 1 equivalence noted), degree of protection IK = IK07 , for a reference service life of 20 years, in commercial/industrial applications
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
• ROHS Exemption Information : Yes
• Take Back : No
• Halogene Performance : Halogen free product
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Silicon Free : Yes
• Carbon Footprint : 540.1978334177318
• Environmental Disclosure : ENVPEP2509035EN
• Halogen Content Performance : Halogen free product
• Nema Degree Of Protection : NEMA 1
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2509035EN
• Pep Verification Date : 2025-10-15
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : enclosure
• Range Of Product : I-Line
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Height : 86 in
• Width : 42 in
• Depth : 9.5 in
