HCM 32 INCH WIDE by 48 INCH HIGH TYPE1 I-LINE PANELBOARD ENCLOSURE

HCM 32 INCH WIDE by 48 INCH HIGH TYPE1 I-LINE PANELBOARD ENCLOSURE

SQDHC3248B HC3248B 785901790365
251.23 / EACH
  • Depth: 8.2 in
  • Height: 48 in
  • Line Rated Current: 225 A, 400 A, 600 A, 800 A
  • Net Weight: 35.08 kg
  • Standard: CSA, UL
  • Warranty Length: 18 mth

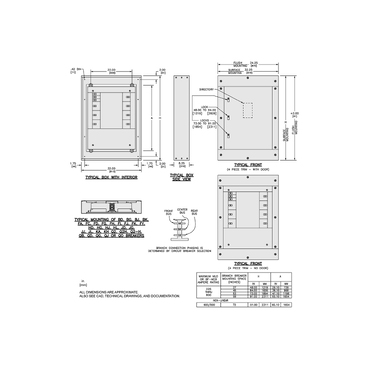

Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. Service entrance panelboards meeting the requirements of CSA are available in Canada factory-assembled only. I-Line circuit breaker panelboards are available as 400–1200A main lugs only and 100–1200A main circuit breakers. This HCM I-Line panelboard enclosure has a NEMA 1 degree of protection. This enclosure has current ratings of 600A, 400A & 800A. Dimensions for this enclosure are 1219 mm (H), 813 mm (W),210 mm (D). This product comes with an 18 month warranty.
  • Product Description
  • Specifications
Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. Service entrance panelboards meeting the requirements of CSA are available in Canada factory-assembled only. I-Line circuit breaker panelboards are available as 400–1200A main lugs only and 100–1200A main circuit breakers. This HCM I-Line panelboard enclosure has a NEMA 1 degree of protection. This enclosure has current ratings of 600A, 400A & 800A. Dimensions for this enclosure are 1219 mm (H), 813 mm (W),210 mm (D). This product comes with an 18 month warranty.
  • Range Of Product : I-Line
  • Device Application : panelboard
  • Product Or Component Type : enclosure
  • Device Short Name : HCM
  • Offer Sustainability
    • Eu Rohs Directive : Compliant
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Environmental Disclosure : ENVPEP1407017EN
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Pvc Free : Yes
  • Complementary
    • Maximum Height : 48 in
    • Line Rated Current : 600 A || 400 A || 800 A || 225 A
    • Enclosure Nominal Depth : 210 mm || 241 mm
    • Enclosure Nominal Width : 813 mm
    • Maximum Depth : 8.2 in
    • Enclosure Nominal Height : 1219 mm
    • Net Weight : 35.08 kg
  • Environment
    • Nema Degree Of Protection : NEMA 1
    • Standards : UL || CSA
  • Contractual warranty
    • Warranty : 18 months
