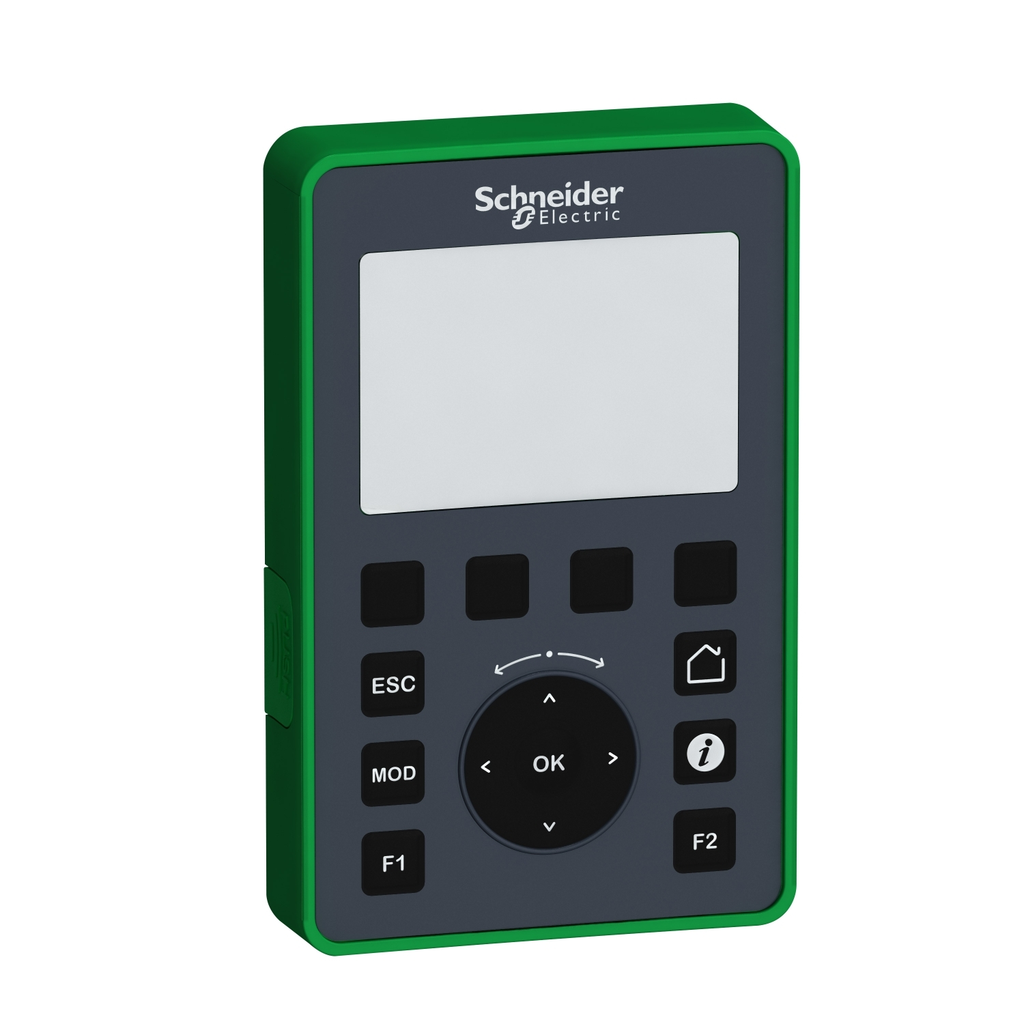

Graphic display, Modicon M221, unit, 240 x 160 pixels

DISPLAY FOR MODICON M221 PLC

SQDTMH2GDB TMH2GDB 785901546412
203.38 / EA
  • Certifications: CULus
  • Current: 40 mA, 5 V
  • Depth: 63 mm
  • Height: 126 mm
  • Net Weight: 0.17 kg
  • Standard: EN/IEC 61010-2-201, EN/IEC 61131-2
  • Storage Temperature: -40-70 °C
  • Width: 80 mm
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This graphic display unit features a backlit colour STN LCD display. The display supports 240 x 160 pixels of resolution with monochrome display colour. The unit is equipped with RJ45 for communication and power supply. The keypad contains 4 configurable keys and 6 keys for navigation. It is an IP20 and IP65 rated product. Its dimensions are 80mm (Width) x 63mm (Depth) x 126mm (Height). It weighs 0.17kg. This product is certified by CE and CULus. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This display is compatible with Modicon M221 logic controller. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks
  • Product Description
  • Specifications
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This graphic display unit features a backlit colour STN LCD display. The display supports 240 x 160 pixels of resolution with monochrome display colour. The unit is equipped with RJ45 for communication and power supply. The keypad contains 4 configurable keys and 6 keys for navigation. It is an IP20 and IP65 rated product. Its dimensions are 80mm (Width) x 63mm (Depth) x 126mm (Height). It weighs 0.17kg. This product is certified by CE and CULus. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This display is compatible with Modicon M221 logic controller. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks
  • Complementary
    • Net Weight : 0.17 kg
    • Width : 80 mm
    • Marking : CE
    • Height : 126 mm
    • Connector Type : RJ45 communication and power supply
    • Depth : 63 mm
    • Mounting Location : front cabinet 22 mm hole || bottom of cabinet 22 mm hole mounting accessory
    • Product Certifications : cULus
    • Standards : EN/IEC 61131-2 || EN/IEC 61010-2-201
  • Environment
    • Environmental Characteristic : corrosive gas free
    • Electromagnetic Compatibility : electrostatic discharge 8 kV air discharge) EN/IEC 61000-4-2 || conducted RF disturbances 10 Vrms 0.15...80 MHz) EN/IEC 61000-4-6 || disturbing field emission 10...150 kHz power lines (DC)) EN/IEC 55011 || disturbing field emission 120...69 dBµV/m QP power lines (DC)) EN/IEC 55011 || disturbing field emission 150...1500 kHz power lines (DC)) EN/IEC 55011 || disturbing field emission 1.5...30 kHz power lines (DC)) EN/IEC 55011 || disturbing field emission 30...230 MHz 10 m)class A EN/IEC 55011 || disturbing field emission 230 MHz...1 GHZ 10 m)class A EN/IEC 55011 || disturbing field emission 79...63 dBμV/m QP power lines (DC)) EN/IEC 55011 || disturbing field emission 63 dBμV/m QP power lines (DC)) EN/IEC 55011 || disturbing field emission 40 dBμV/m QP 10 m)class A EN/IEC 55011 || electrostatic discharge 4 kV contact discharge) EN/IEC 61000-4-2 || disturbing field emission 47 dBμV/m QP 10 m)class A EN/IEC 55011 || radiated radio-frequency electromagnetic field immunity test 10 V/m 80 MHz...1 GHz) EN/IEC 61000-4-3 || radiated radio-frequency electromagnetic field immunity test 3 V/m 1.4...2 GHz) EN/IEC 61000-4-3 || radiated radio-frequency electromagnetic field immunity test 1 V/m 2...3 GHz) EN/IEC 61000-4-3 || magnetic field at power frequency 30 A/m 50/60 Hz) EN/IEC 61000-4-8 || electrical fast transient/burst immunity test 1 kV EN/IEC 61000-4-4 || surge immunity test 0.5 kV common mode) EN/IEC 61000-4-5 || surge immunity test 0.5 kV differential mode) EN/IEC 61000-4-5
    • Ip Degree Of Protection : front face IP65 || back part IP20
    • Shock Resistance : 15 gn 11 ms
    • Ambient Air Temperature For Storage : -40-70 °C
    • Ambient Air Temperature For Operation : -15-50 °C
    • Pollution Degree : 2 EN/IEC 60664-1
    • Vibration Resistance : 1.5 mm 3-150 Hz) || 2 gn
    • Operating Altitude : 0...6561.68 ft (0...2000 m)
    • Storage Altitude : 0-2000 m
    • Relative Humidity : 95-95 %, non-condensing transport) || 95-95 %, non-condensing storage) || 95-95 %, non-condensing operation)
  • Number Of Key : 4 configurable || 6 for navigation
  • Display Colour : monochrome
  • Range Of Product : Modicon M221
  • Power Consumption In W : 1 W
  • Current Consumption : 40 mA 5 V DC via RJ45 connector
  • Product Or Component Type : graphic display
  • Range Compatibility : Modicon M221
  • Display Type : backlit colour STN LCD
  • Display Resolution : 240 x 160 pixels
  • Offer Sustainability
    • Pvc Free : Yes
    • Environmental Disclosure : ENVPEP1409016EN
    • China Rohs Regulation : X
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Rohs Exemption Information : Yes
    • Circularity Profile : ENVEOLI1409016EN
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Mercury Free : Yes
