SQUARE D

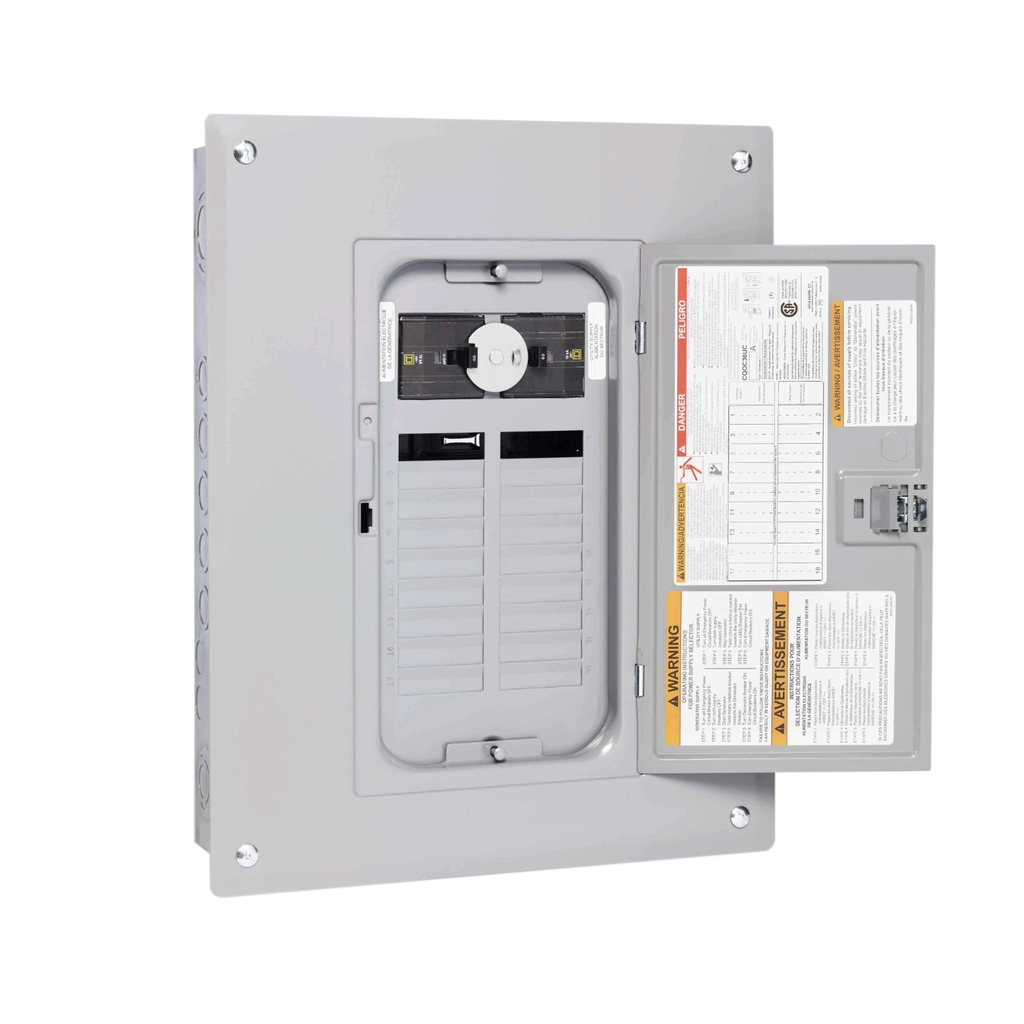

Generator panel, QO, 1 phase, 18 spaces, 36 circuits, 60A main breaker, PoN, NEMA1, cover with door

QO 60A 120/240V 36CCT

SQDQOGP3P6036P QOGP3P6036P 785901667018
275.89 / EA
http://schema.org/OutOfStock
Mayer-DDS-Generator panel, QO, 1 phase, 18 spaces, 36 circuits, 60A main breaker, PoN, NEMA1, cover with door-1
  • Depth: 3.74 in
  • Height: 17.91 in
  • Number of Circuits: 36
  • Width: 14.25 in
QO Load Centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO Load Centers enable the use of a full complement of accessories. Systems can be single or t
QTY
  • Product Description
  • Features
  • Specifications
QO Load Centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO Load Centers enable the use of a full complement of accessories. Systems can be single or t
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.0073729264
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 1 kg CO2 eq.
    • 0.9796968067
  • Ue Rated Operational Voltage
    • 120/240 V AC
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 67 kg CO2 eq.
    • 67.4279529412
  • Nema Degree Of Protection
    • NEMA 1 indoor enclosure
  • Persona Type Names
    • End User
    • Contractor
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 0.1 kg CO2 eq.
    • 0.087341
  • Persona Type Ids
    • EU
    • LC
  • Carbon Footprint Of The Distribution Phase A4
    • 3.1586057143
    • 3 kg CO2 eq.
  • Tightening Torque
    • Cover 20 lb.in
  • Ambient Air Temperature For Operation
    • -5 °C
    • 40 °C
  • Conformance Attributes
    • Product Certifications : UL Listed
  • Complementary Attributes
    • Line Rated Current : 60 A
  • Important Information Attributes
    • Country Id : US
    • B2B Bullet Point 1 : QO Load center provides superior performance and durability
    • B2B Bullet Point 2 : Straight in wiring saves wire, labor, and time
    • B2B Bullet Point 3 : Compatible with any Square D™ QO Circuit Breaker
    • B2B Bullet Point 4 : The fully distributed neutral bar allows for QO™ plug-on neutral circuit breakers in any space
    • B2B Bullet Point 5 : Complies with UL 67 listed, CSA, and IEC standards
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • Manufacturing Carbon Footprint : 67.4279529412
    • Distribution Carbon Footprint : 3.1586057143
    • Installation Carbon Footprint : 0.0073729264
    • Use Carbon Footprint : 0.087341
    • End Of Life Carbon Footprint : 0.9796968067
    • Legacy WEEE Scope : In
    • WEEE Product Category : 4
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : Yes
    • ROHS Eur Status : Compliant with Exemptions
    • ROHS Eur Conformity Date : 2436
    • ROHS Eur Full Compliance Status : Compliant with Exemptions
    • ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : L - LOB initialized
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Load centers (equipped)
    • H And D Enrichment Class 4 : Single-phase convertible mains indoor load center
    • Device Composition : grounding bar (ordered separately)
    • Load Center Type : PoN Convertible Mains (breaker)
    • Number Of Circuits : 36
    • Package Weight Lbs : 9.344 kg
    • Phase : 1 phase
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : panel
    • Range Of Product : QO
    • Returnability : Yes
    • Short Circuit Current : 10 kA
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 72 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 71.6609693886
  • General Attributes
    • Phase : 1 phase
    • Product Or Component Type : panel
    • Range Of Product : QO
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Carbon Footprint : 71.6609693886
    • Environmental Disclosure : ENVPEP2212001
    • Eu Rohs Directive : Compliant with Exemptions
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Specifications
    • Height : 17.91 in
    • Width : 14.25 in
    • Depth : 3.74 in
