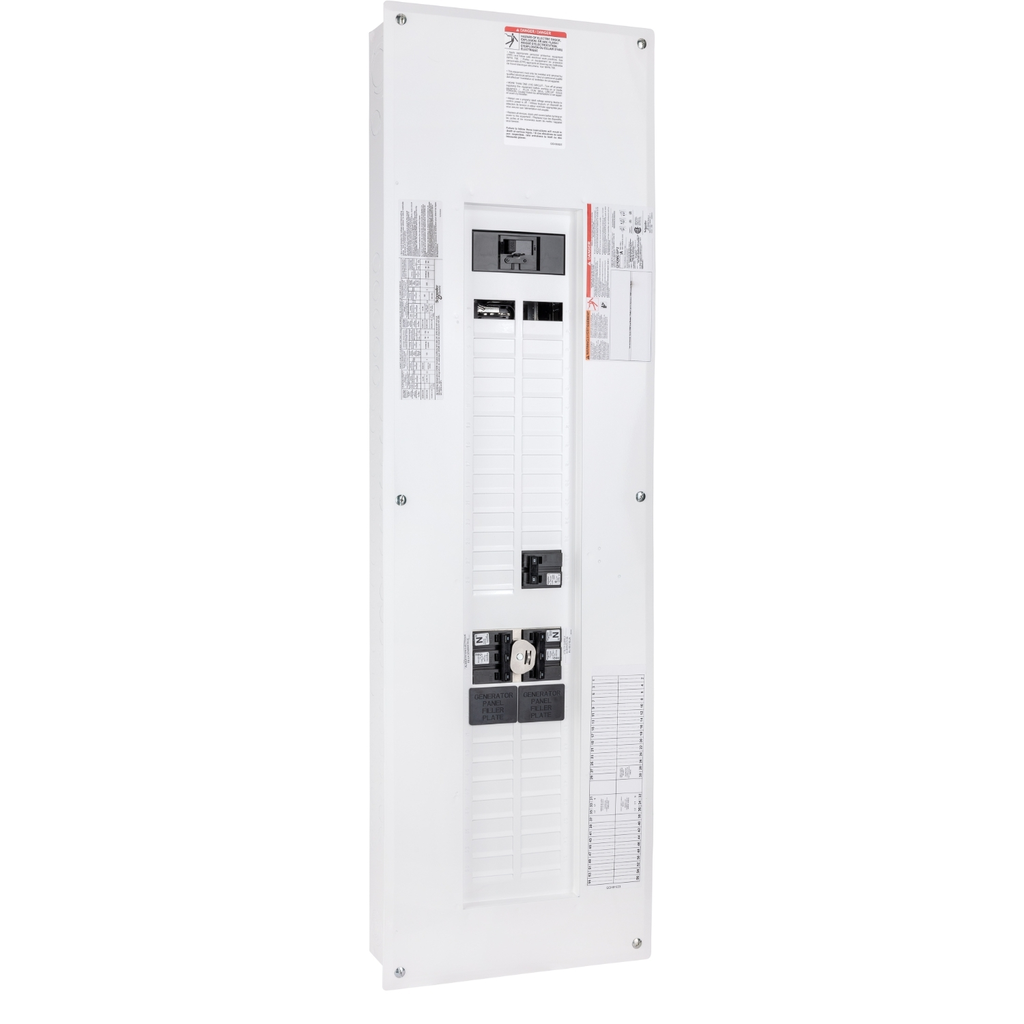

Generator panel, Homeline, 68 spaces, 150A main breaker, NEMA 1, CSA

Generator panel, Homeline, 68

SQDCHGP605638150 CHGP605638150 785901974727
990.73 / EA
http://schema.org/OutOfStock
Generator panel, Homeline, 68 spaces, 150A main breaker, NEMA 1, CSA
  • Depth: 95 mm
  • Number of Circuits: 94
  • Number of Spaces: 68
Homeline Generator Panels provide a scalable, generator ready solution. They can be used as a standard panel and configured to accept generator power at a later date. Plug on neutral capability saves time and wiring when installing CAFI and Dual Function Breakers. Generator breaker can be upsized or downsized depending on the application. Generator breaker is purchased separately, enabling proper sizing of the breaker based on the size of the generator. This generator panel is a split bus option. It provides 68 spaces with a 150A main breaker. It is NEMA 1 and CSA Rated.
QTY
  • Product Description
  • Features
  • Specifications
Homeline Generator Panels provide a scalable, generator ready solution. They can be used as a standard panel and configured to accept generator power at a later date. Plug on neutral capability saves time and wiring when installing CAFI and Dual Function Breakers. Generator breaker can be upsized or downsized depending on the application. Generator breaker is purchased separately, enabling proper sizing of the breaker based on the size of the generator. This generator panel is a split bus option. It provides 68 spaces with a 150A main breaker. It is NEMA 1 and CSA Rated.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Line Rated Current : 150 A, 60 A
  • Important Information Attributes
    • Product Or Component Type : combination assembly, panel
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Global Commercial Status : Commercialised
    • Return Indicator : Y
    • Stocking Flag : Y
    • Stock Policy : 2
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • Legacy Weee Scope : In
    • Weee Product Category : 4
    • Scope Perimeter : Outside of Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 2531
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : No
    • China Rohs Label : 1
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Persona Type Ids : LC
    • Persona Type Names : Contractor
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • Product Kit Identifier : N
    • Box Number : 25
    • Energy Efficiency Optimized : False
    • Load Center Type : main breaker
    • Number Of Circuits : 94
    • Number Of Spaces : 68
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Provided Equipment : circuit-breaker 3 )
    • Range Of Product : Homeline
    • Returnability : Yes
    • Short Circuit Current : 22 kA
    • Sustainable Packaging : No
    • Warranty In Months : 18
    • Pep Code : ENVPEP2212003EN
    • Offer Owner Code : 190788
    • Height Nominal : 1235 mm
    • Width Nominal : 362 mm
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Ambient Air Temperature For Operation : -5 °C, 40 °C
    • Take Back : Nej
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2212003EN
    • Eu Rohs Directive : Compliant
    • Nema Degree Of Protection : NEMA 1 indoor enclosure
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2212003EN
  • General Attributes
    • Product Or Component Type : combination assembly, panel
    • Provided Equipment : circuit-breaker 3 )
    • Range Of Product : Homeline
  • Specifications
    • Depth : 95 mm
