SQUARE D

Fuse Holder, TeSys LS1, 3P, 30A, fuse type CC or KTKR, 0.41in x 1.5in fuse, DIN rail mount, screw type terminals

FUSEHOLDER 30A SCREW CLAMP TER

SQDLS1D30 LS1D30 3389110273083
84.48 / EA
http://schema.org/OutOfStock
Mayer-DDS-Fuse Holder, TeSys LS1, 3P, 30A, fuse type CC or KTKR, 0.41in x 1.5in fuse, DIN rail mount, screw type terminals-1
  • Country of Origin: Mexico
  • Depth: 2.69 in
  • Fuse Type: CC
  • Height: 3.5 in
  • Warranty Length: 18 mth
  • Width: 1.77 in

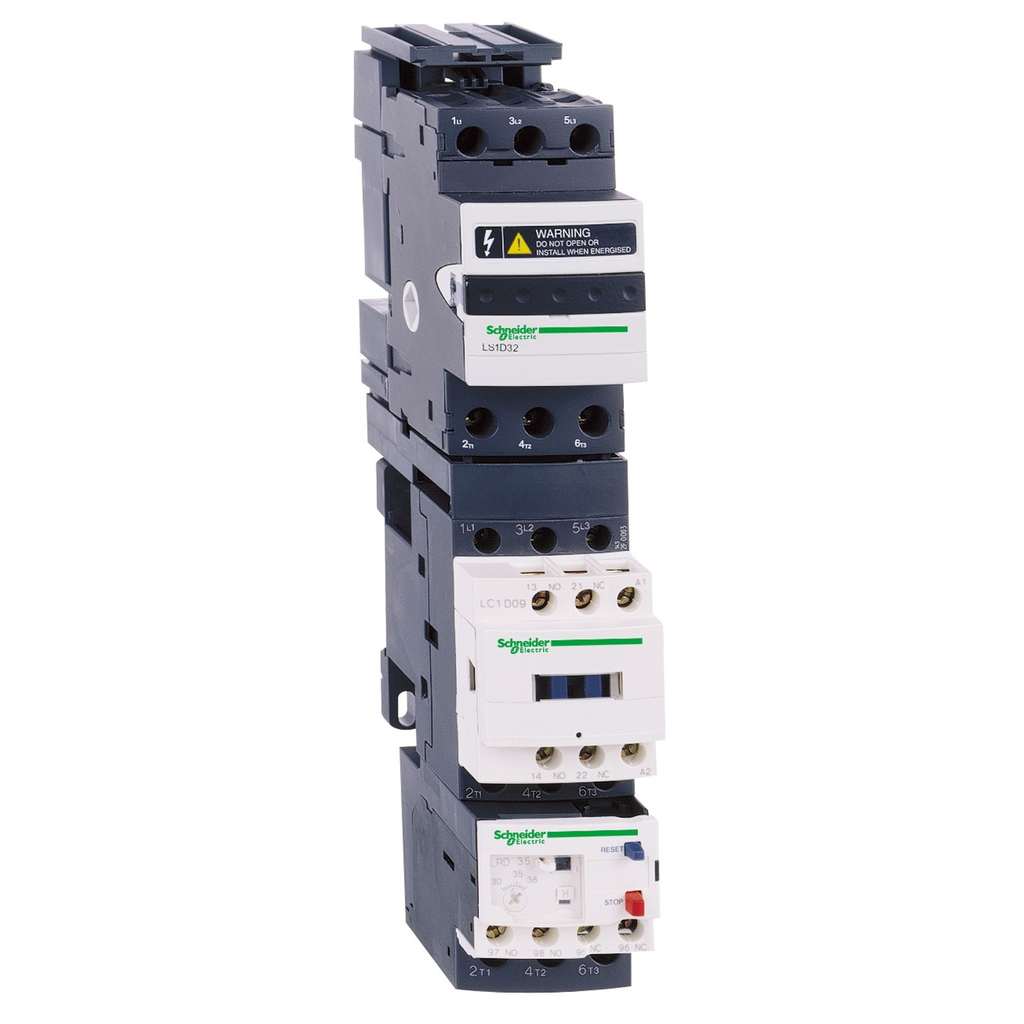

TeSys LS1 fuseholders are for use with TeSys D contactors. Meets the application needs for fusible starters. Fuseholder is DIN rail mounted. The 3 pole fuseholder is for Class CC or KTK-R fuses. The 30A fuse dimensions are 0.41 inches by 1.5 inches. The
QTY
  • Product Description
  • Features
  • Specifications
TeSys LS1 fuseholders are for use with TeSys D contactors. Meets the application needs for fusible starters. Fuseholder is DIN rail mounted. The 3 pole fuseholder is for Class CC or KTK-R fuses. The 30A fuse dimensions are 0.41 inches by 1.5 inches. The
  • Connections Terminals
    • screw clamp terminals 2 1-6 mm²solid
    • screw clamp terminals 2 1-6 mm²flexible without cable end
    • screw clamp terminals 2 1-6 mm²flexible without
  • Standards
    • IEC 60947-1
    • IEC 60947-2
    • IEC 60947-4-1
    • UL 508
  • Mounting Position
    • vertical +/- 23°)
  • Tightening Torque
    • 1.7 N.m screw clamp terminals
  • Ie Rated Operational Current
    • 30 Apower circuit
  • Ambient Air Temperature For Operation
    • -50-70 °C operation
  • Product Certifications
    • UL
    • CSA
  • Physical Attributes
    • Fuse Size : 0.41 x 1.50 in
  • Complementary Attributes
    • Ue Rated Operational Voltage : 600 V
  • Important Information Attributes
    • Country Id : US
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-09-27
    • ETIM 10 : EC001040
    • Html Descr : TeSys fuse-disconnector, 3P, 30 A, Fuse size 0.41 x 1.5 in, Screw type
    • Manufacturer : Schneider Electric
    • Device Type : LV equipment - LV fuse - disconnector
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 15 year(s)
    • WEEE Applicability : Finished product
    • WEEE Scope : In
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • ROHS Eur In Scope : Yes
    • ROHS Eur Status : Compliant
    • ROHS Eur Conformity Date : 1911
    • ROHS Eur Full Compliance Status : Compliant
    • ROHS Eur Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Control Type : toggle
    • Device Short Name : LS1D
    • Energy Efficiency Optimized : False
    • Fuse Type : CC
    • Local Signalling : blown fuse indication
    • Mounting Support : rail
    • Package Weight Lbs : 190.000 g
    • Poles Description : 3P
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : fuse-disconnector
    • Protective Treatment : TH
    • Range : TeSys
    • Range Of Product : TeSys fuse-disconnector
    • Returnability : Yes
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • General Attributes
    • Product Or Component Type : fuse-disconnector
    • Range Of Product : TeSys fuse-disconnector
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=640384&lang=en-us
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Eu Rohs Directive : Compliant
    • Ip Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Product Compatibility : fuse cartridge
    • Reach Free Of Svhc : Yes
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
    • Height : 3.5 in
    • Width : 1.77 in
    • Depth : 2.69 in
