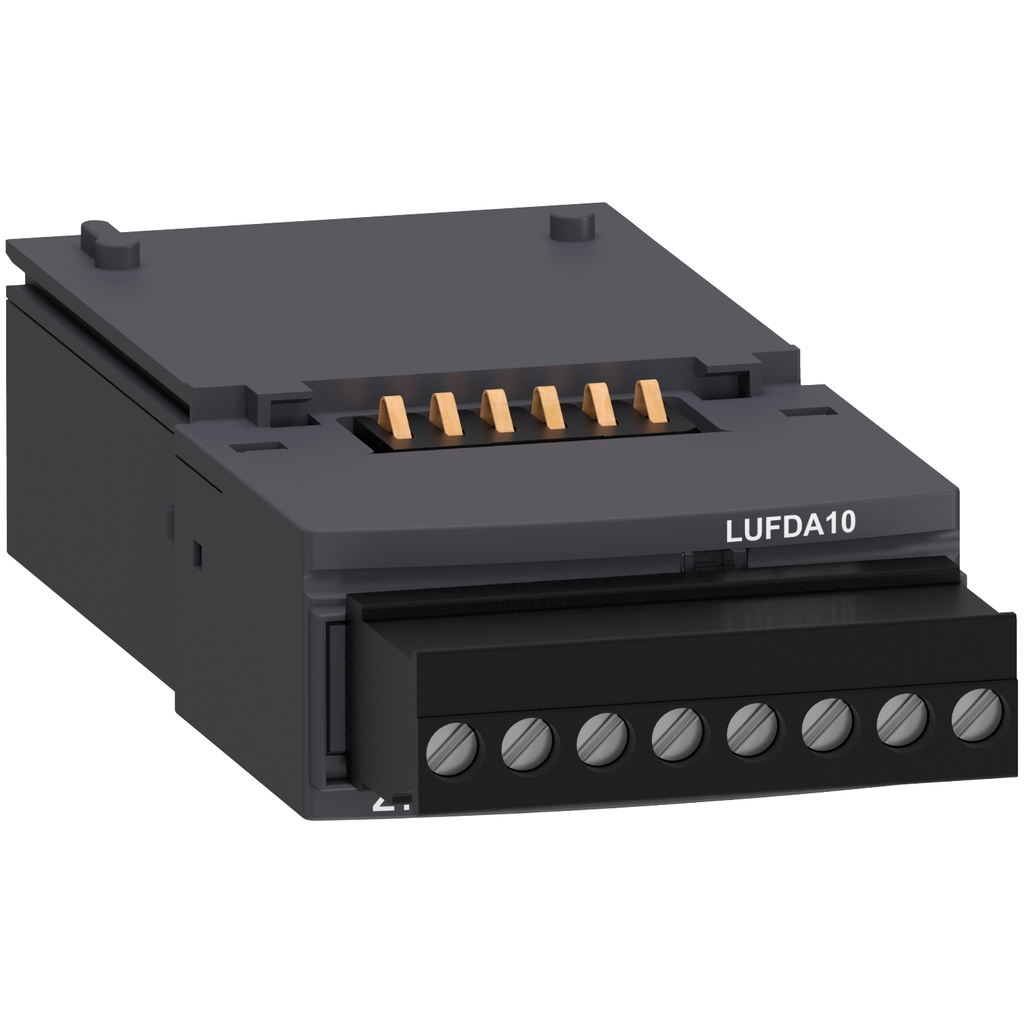

TeSys U additional function module to be inserted in advanced power bases LUB120, LUB320, LUB380 for thermal overload tripping indication. It indicates the overload tripping and the reset done by the power base control pad or done remotely. It provides 1NO instantaneous contact rated 24-250V AC/DC 5A max. It requires an external power supply 24-240V AC or DC. To be inserted in the cavity of a power base provided for the auxiliary modules. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).

• Communications & Management Attributes
• Communication Of Faults : LED front panel, LED front panel
• Complementary Attributes
• US Rated Supply Voltage : 24...240 V DC, 24...240 V DC, 24...240 V AC, 24...240 V AC
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Current Consumption : 7 mA 24 V DC, 7 mA 24 V DC, 7 mA 24 V DC, 1.1 mA 240 V AC, 1.1 mA 240 V AC, 1.1 mA 240 V AC
• Short Circuit Protection : 2 A fuse gG IEC 60947-5-1, 2 A fuse gG IEC 60947-5-1, 2 A fuse gG IEC 60947-5-1
• Tightening Torque : 0.5-0.6 N.m 3.5 mm flat, 0.5-0.6 N.m 3.5 mm flat, 0.5-0.6 N.m 3.5 mm flat
• ITH Conventional Free Air Thermal Current : 2 A 70 °C, 2 A 70 °C
• Connections Terminals : screw clamp terminals 2 0.2-1 mm² flexible without cable end, screw clamp terminals 2 0.2-1 mm² flexible without cable end, screw clamp terminals 2 0.2-1 mm² flexible without cable end, screw clamp terminals 2 0.2-1 mm² flexible without cable end, screw clamp terminals 2 0.2-1 mm² flexible without cable end, screw clamp terminals 2 0.2-1 mm² rigid without cable end, screw clamp terminals 2 0.2-1 mm² rigid without cable end, screw clamp terminals 2 0.2-1 mm² rigid without cable end, screw clamp terminals 2 0.2-1 mm² rigid without cable end, screw clamp terminals 2 0.2-1 mm² rigid without cable end, screw clamp terminals 2 0.25-1 mm² flexible with cable end, screw clamp terminals 2 0.25-1 mm² flexible with cable end, screw clamp terminals 2 0.25-1 mm² flexible with cable end, screw clamp terminals 2 0.25-1 mm² flexible with cable end, screw clamp terminals 2 0.25-1 mm² flexible with cable end, screw clamp terminals 2 0.5-1 mm² flexible with cable end, screw clamp terminals 2 0.5-1 mm² flexible with cable end, screw clamp terminals 2 0.5-1 mm² flexible with cable end, screw clamp terminals 2 0.5-1 mm² flexible with cable end, screw clamp terminals 2 0.5-1 mm² flexible with cable end
• Local Data Status : Publishable
• Local Publishable Date : 2025-04-05
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• WEEE Applicability : Finished product
• WEEE Scope : In
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : Yes
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Compatibility Code : LUF
• Device Short Name : LUF
• Energy Efficiency Optimized : False
• Halogen Free Status : Halogen free plastic parts product
• Package Weight Lbs : 71.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : function module
• Range : TeSys
• Range Of Product : TeSys Ultra
• Returnability : Yes
• Sustainable Packaging : Yes
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationship Type : cross-selling relationship
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
• ROHS Exemption Information : Yes
• Take Back : No
• Halogene Performance : Halogen free plastic parts product
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Halogen Content Performance : Halogen free plastic parts product
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• General Attributes
• Product Or Component Type : function module
• Range Of Product : TeSys Ultra
• Output Attributes
• Discrete Output Function : 1 NO AC-15) 230 V 400 VA 100000 cycles, 1 NO AC-15) 230 V 400 VA 100000 cycles, 1 NO AC-15) 230 V 400 VA 100000 cycles, 1 NO AC-15) 230 V 400 VA 100000 cycles, 1 NO AC-15) 230 V 400 VA 100000 cycles, 1 NO DC-13) 24 V 50 W 100000 cycles, 1 NO DC-13) 24 V 50 W 100000 cycles, 1 NO DC-13) 24 V 50 W 100000 cycles, 1 NO DC-13) 24 V 50 W 100000 cycles, 1 NO DC-13) 24 V 50 W 100000 cycles
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Input Attributes
• Input Type : remote reset 0.2-1.5 mm² <500 m 50 Ohm 52.8 mH 0.093 nF, remote reset 0.2-1.5 mm² <500 m 50 Ohm 52.8 mH 0.093 nF, remote reset 0.2-1.5 mm² <500 m 50 Ohm 52.8 mH 0.093 nF, remote reset 0.2-1.5 mm² <500 m 50 Ohm 52.8 mH 0.093 nF, remote reset 0.2-1.5 mm² <500 m 50 Ohm 52.8 mH 0.093 nF, remote reset 0.2-1.5 mm² <500 m 50 Ohm 52.8 mH 0.093 nF
