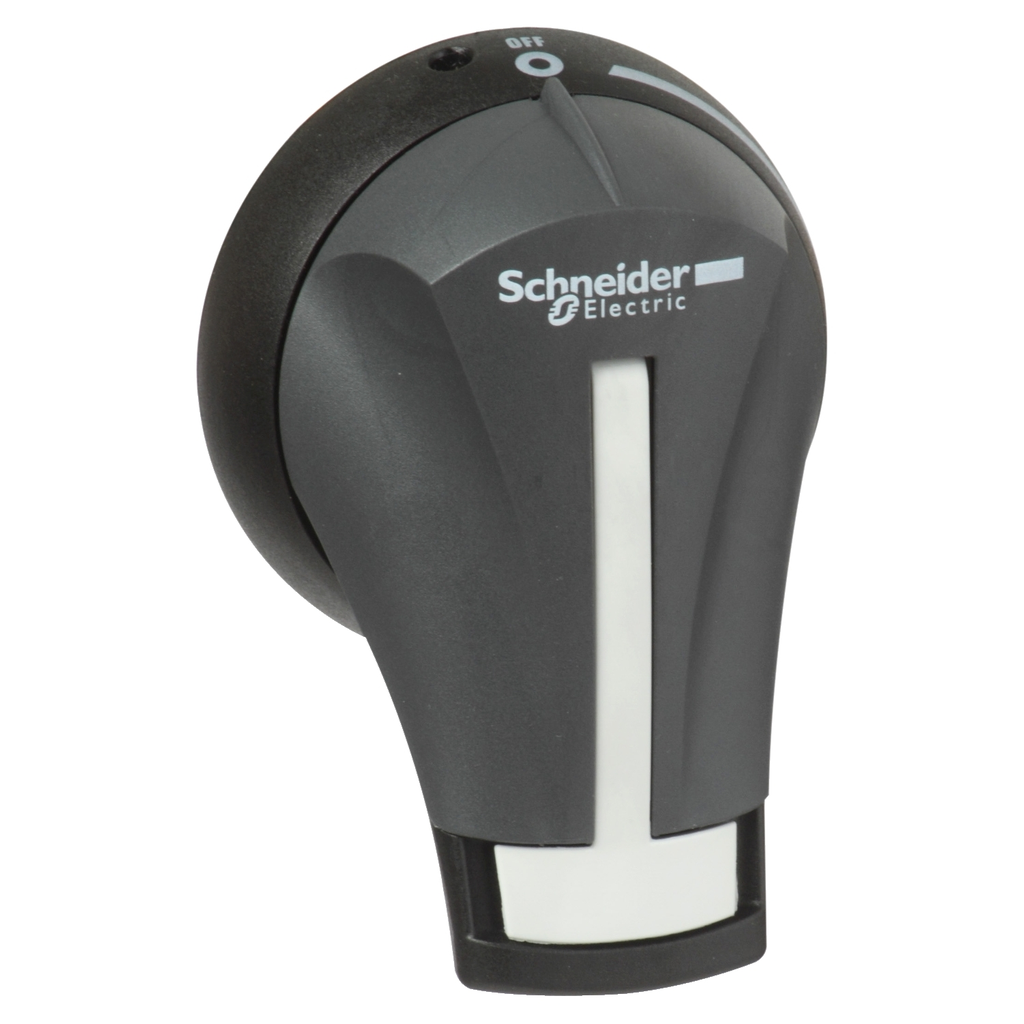

TeSys GS external operating handle for 3-pole 30A UL fuse switch-disconnectors GS1DDU, GS1DU. Black handle with grey front plate, padlockable, to be mounted on door of an enclosure with NEMA protection 1, 3R, 4, 4X, 12, for front side operation. To be completed with a shaft for external operator GS2AE, several lengths available (to be ordered separately).

• Prop 65
• WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

• Assets
• Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0003872_3D-CAD&p_File_name=MCADPD0003872_3D-simplified.stp, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0003872_3D-CAD&p_File_name=MCADPD0003872_2D-back.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0003872_3D-CAD&p_File_name=MCADPD0003872_2D-back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0003872_3D-CAD&p_File_name=MCADPD0003872_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0003872_3D-CAD&p_File_name=MCADPD0003872_2D-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0003872_3D-CAD&p_File_name=MCADPD0003872_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0003872_3D-CAD&p_File_name=MCADPD0003872_2D-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0003872_3D-CAD&p_File_name=MCADPD0003872_2D-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0003872_3D-CAD&p_File_name=MCADPD0003872_2D-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0003872_3D-CAD&p_File_name=MCADPD0003872_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0003872_3D-CAD&p_File_name=MCADPD0003872_2D-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0003872_3D-CAD&p_File_name=MCADPD0003872_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0003872_3D-CAD&p_File_name=MCADPD0003872_2D-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0003872_3D-CAD&p_File_name=MCADPD0003872_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0003872_3D-CAD&p_File_name=MCADPD0003872_2D-top.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=PWCTR-LP67-0018
• Physical Attributes
• Handle Color : black
• Handle Front Plate Color : grey
• Conformance Attributes
• Standards : UL, CSA
• Complementary Attributes
• Line Rated Current : 30 A
• Important Information Attributes
• Medium Desc : External rotary handle, TeSys GS, black handle, front mounting, 2 positions I-O, NEMA 4-4X, for GS 30A Compact UL
• Local Data Status : Publishable
• Local Publishable Date : 2025-02-26
• Global Commercial Status : Commercialised
• Html Descr : TeSys GS - Black External Frontal Rotary Handle - for Switch Disc 30 A UL
• Return Indicator : Y
• Stocking Flag : Y
• Manufacturer : Schneider Electric
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Weee Applicability : Finished product
• Weee Scope : Out
• Legacy Weee Scope : In
• Weee Exclusion Rationale : Product/component not in scope – not electric/electronic device
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : No
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Product Kit Identifier : N
• Compatibility Code : GS2 handle
• Device Short Name : GS2AH
• Energy Efficiency Optimized : False
• Marking : O-I
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : rotary handle
• Range : TeSys
• Range Of Product : TeSys
• Returnability : Yes
• Rotary Handle Padlocking : with
• Sustainable Packaging : No
• Type Of Operating Handle : external frontal
• Handle Color : black
• Handle Front Plate Color : grey
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• Take Back : Nej
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Eu Rohs Directive : Compliant
• Nema Degree Of Protection : NEMA 4X
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• General Attributes
• Product Or Component Type : rotary handle
• Range Of Product : TeSys
• ETIM
• ETIM 8 : EC000229
• ETIM 9 : EC000229
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
