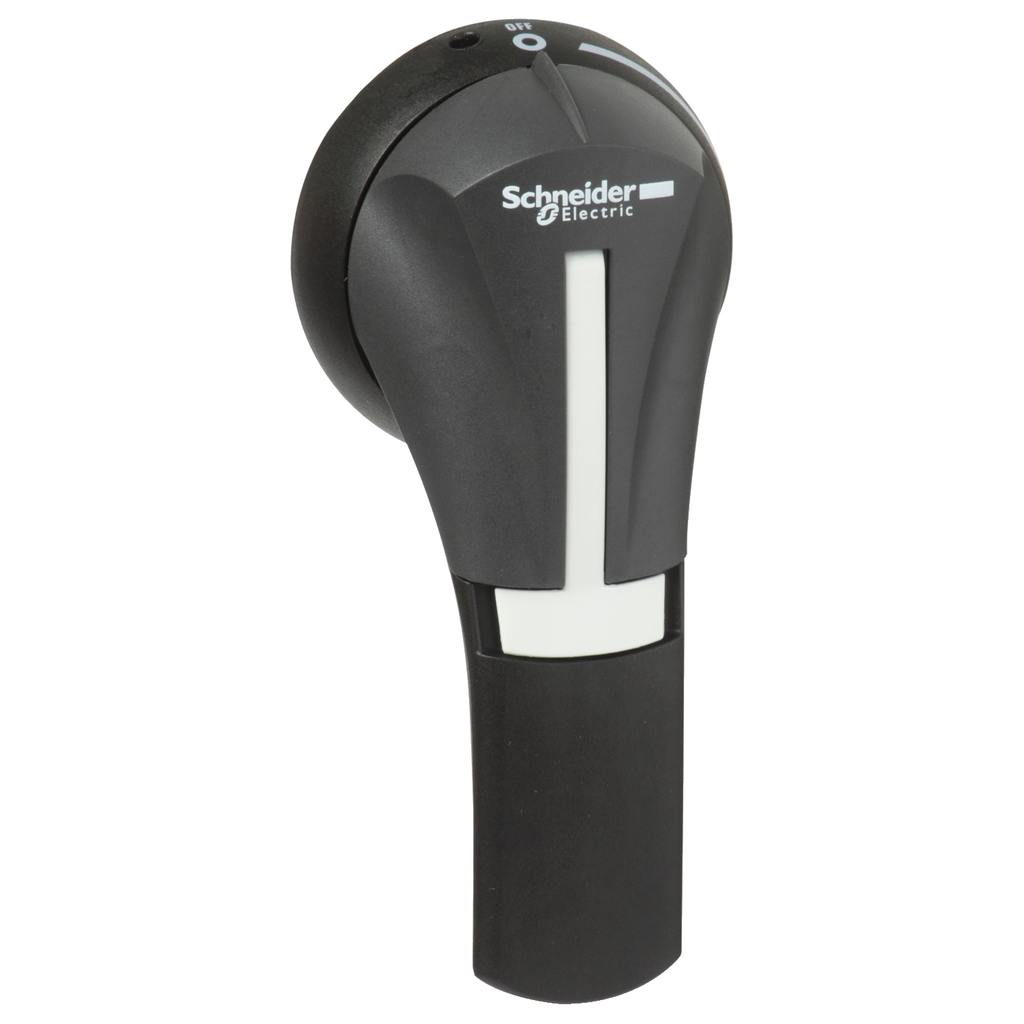

External rotary handle, TeSys GS, black handle, front mounting, 2 positions I-O, NEMA 4-4X, for GS 30-400A UL

HANDLE BLACK OFF ON

SQDGS2AH430 GS2AH430 3389119411875
94.06 / EA
http://schema.org/OutOfStock
  • Country of Origin: Tunisia
  • Warranty Length: 18 mth
TeSys GS external operating handle for 3-pole 30-400A UL fuse switch-disconnectors GS2EEU, GS2EU, GS2GU, GS2JU, GS2MU, GS2QU. Black handle with grey front plate, padlockable, to be mounted on door of an enclosure with NEMA protection 1, 3R, 4, 4X, 12, fo
QTY
  • Product Description
  • Features
  • Specifications
TeSys GS external operating handle for 3-pole 30-400A UL fuse switch-disconnectors GS2EEU, GS2EU, GS2GU, GS2JU, GS2MU, GS2QU. Black handle with grey front plate, padlockable, to be mounted on door of an enclosure with NEMA protection 1, 3R, 4, 4X, 12, fo
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Range Compatibility
    • TeSys TeSys GS GS2EU
    • TeSys TeSys GS GS2GU
    • TeSys TeSys GS GS2JU
    • TeSys TeSys GS GS2MU
    • Te
  • Line Rated Current
    • 30 A
    • 60 A
    • 100 A
    • 200 A
    • 400 A
  • Standards
    • CSA
    • UL
  • Physical Attributes
    • Handle Color : black
    • Handle Front Plate Color : grey
  • Important Information Attributes
    • Country Id : US
    • B2B Bullet Point 1 : Mounted on door of an enclosure with NEMA protection 1, 3R, 4, 4X, 12, for front side
    • B2B Bullet Point 2 : Black handle with grey front plate and with padlock
    • B2B Bullet Point 3 : High short circuit performance up to 100 KA
    • B2B Bullet Point 4 : Robust and compact handles
    • B2B Bullet Point 5 : Effective protection thanks to fuse speed fusion
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-02-26
    • ETIM 10 : EC000229
    • Html Descr : HANDLE BACK OFF ON
    • Manufacturer : Schneider Electric
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • WEEE Applicability : Finished product
    • WEEE Scope : Out
    • Legacy WEEE Scope : In
    • WEEE Exclusion Rationale : Product/component not in scope – not electric/electronic device
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : Yes
    • ROHS Eur Status : Compliant
    • ROHS Eur Conformity Date : 1911
    • ROHS Eur Full Compliance Status : Compliant
    • ROHS Eur Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • China ROHS Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Compatibility Code : GS2 handle
    • Device Short Name : GS2AH
    • Energy Efficiency Optimized : False
    • Handle Color : black
    • Handle Front Plate Color : grey
    • Marking : O-I
    • Package Weight Lbs : 249.0 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : rotary handle
    • Range : TeSys
    • Range Of Product : TeSys
    • Returnability : Yes
    • Rotary Handle Padlocking : with
    • Sustainable Packaging : No
    • Type Of Operating Handle : external frontal
  • General Attributes
    • Product Or Component Type : rotary handle
    • Range Of Product : TeSys
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=61619069&lang=en-us
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Eu Rohs Directive : Compliant
    • Nema Degree Of Protection : NEMA 4/4X
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Tunisia
