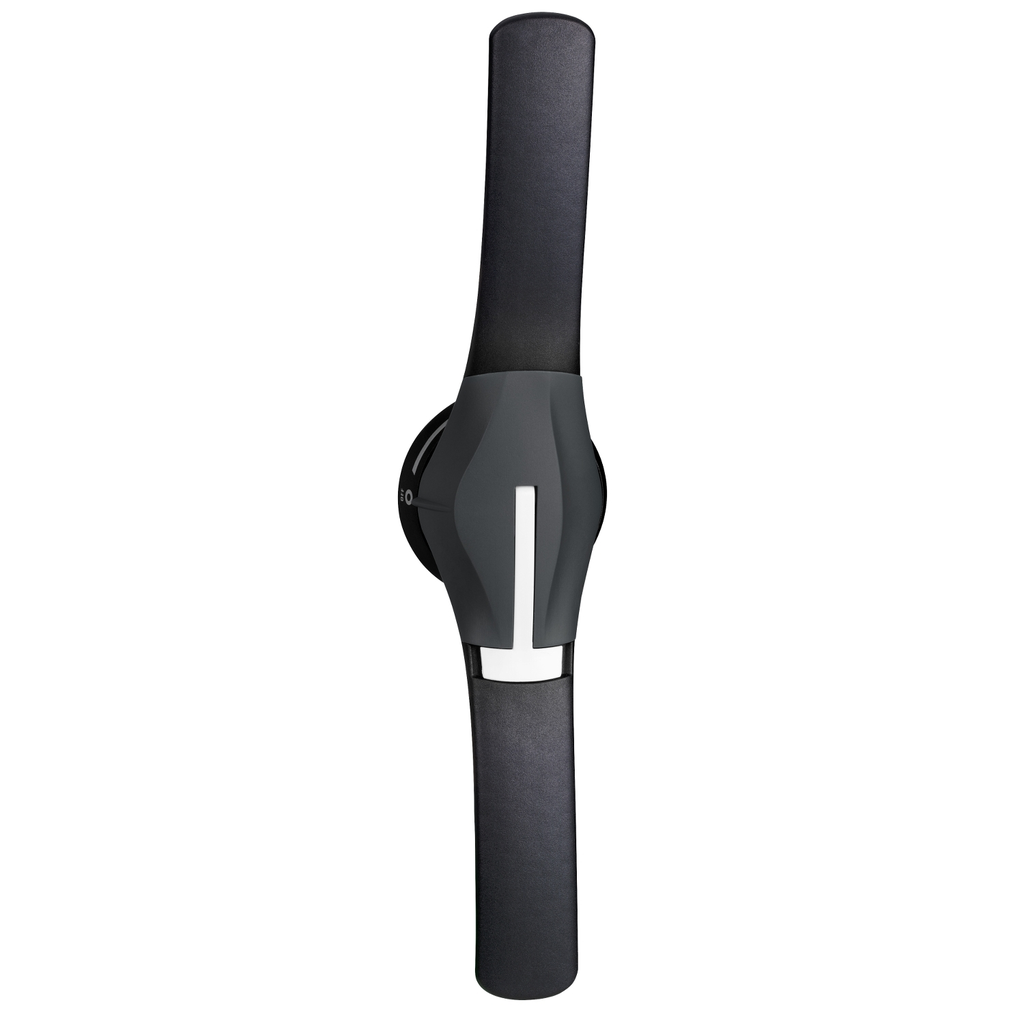

External rotary handle, TeSys GS, black handle, front mounting, 2 positions I-O, NEMA 3R, for GS 800 to 1200A UL

Handle Black NEMA 4 4X S4

SQDGS2AH170 GS2AH170 3606480512391
803.07 / EA
http://schema.org/OutOfStock
Mayer-DDS-External rotary handle, TeSys GS, black handle, front mounting, 2 positions I-O, NEMA 3R, for GS 800 to 1200A UL-1
  • Warranty Length: 18 mth
TeSys GS external operating handle for 3-pole 800-1200A UL fuse switch-disconnectors GS2T, GS2V. black handle with the grey front plate, padlockable, to be mounted on the door of an enclosure with NEMA protection 4/4X, for front side operation. To be completed with a shaft for external operator GS2AE6, GS2AE61, GS2AEH12, several lengths available (to be ordered separately).
QTY
  • Product Description
  • Features
  • Specifications
TeSys GS external operating handle for 3-pole 800-1200A UL fuse switch-disconnectors GS2T, GS2V. black handle with the grey front plate, padlockable, to be mounted on the door of an enclosure with NEMA protection 4/4X, for front side operation. To be completed with a shaft for external operator GS2AE6, GS2AE61, GS2AEH12, several lengths available (to be ordered separately).
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Handle Color : black
    • Handle Front Plate Color : grey
  • Important Information Attributes
    • Range Compatibility : TeSys TeSys GS GS2T, TeSys TeSys GS GS2V
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-02-26
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • WEEE Applicability : Finished product
    • WEEE Scope : Out
    • Legacy WEEE Scope : In
    • WEEE Exclusion Rationale : Product/component not in scope – not electric/electronic device
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Compatibility Code : GS2 handle
    • Device Short Name : GS2AH
    • Energy Efficiency Optimized : False
    • Handle Color : black
    • Handle Front Plate Color : grey
    • Package Weight Lbs : 340.194 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : rotary handle
    • Range : TeSys
    • Range Of Product : TeSys
    • Returnability : Yes
    • Sustainable Packaging : No
    • Type Of Operating Handle : external frontal
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant​, Compliant
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • General Attributes
    • Product Or Component Type : rotary handle
    • Range Of Product : TeSys
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
