Extended rotary handle kit,TeSys Deca, IP65, red handle, without trip indication, for GV3L-GV3P

IP65 THRU DOOR OP-MECH RED/YEL

SQDGV3APN04 GV3APN04 3606480313523
161.19 / EA
http://schema.org/OutOfStock
Mayer-DDS-Extended rotary handle kit,TeSys Deca, IP65, red handle, without trip indication, for GV3L-GV3P-1
  • Country of Origin: USA
  • Warranty Length: 18 mth

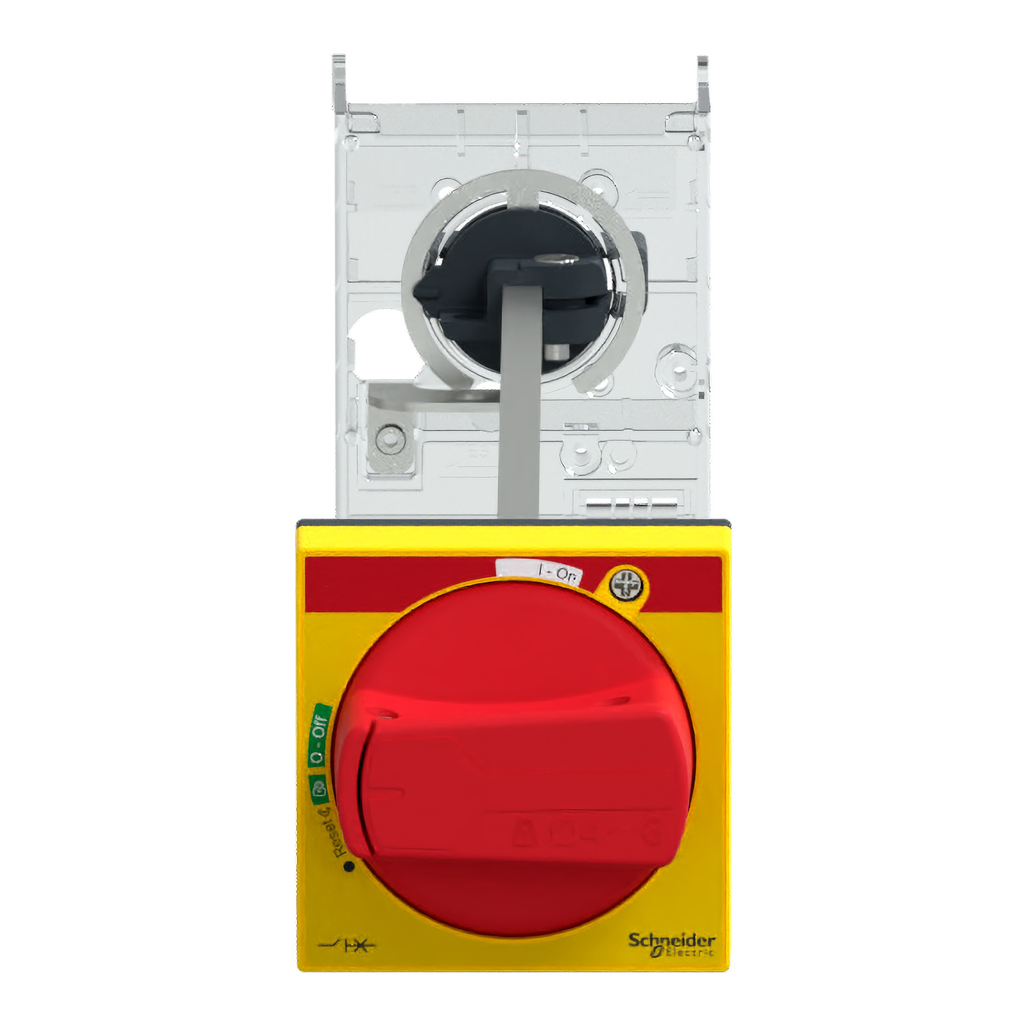

TeSys GV extended rotary handle, for motor circuit breakers GV3L, GV3P mounted inside an enclosure and to be operated externally. For emergency switch usage, it provides a red handle on yellow front plate with indication of 2 positions OFF, ON. To be mounted on the door of the enclosure, the handle mechanism ensures an IP65 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 189-300mm). Padlockable in OFF position with up to 3 padlocks (to be ordered separately).
QTY
  • Product Description
  • Features
  • Specifications
TeSys GV extended rotary handle, for motor circuit breakers GV3L, GV3P mounted inside an enclosure and to be operated externally. For emergency switch usage, it provides a red handle on yellow front plate with indication of 2 positions OFF, ON. To be mounted on the door of the enclosure, the handle mechanism ensures an IP65 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 189-300mm). Padlockable in OFF position with up to 3 padlocks (to be ordered separately).
